Product Description

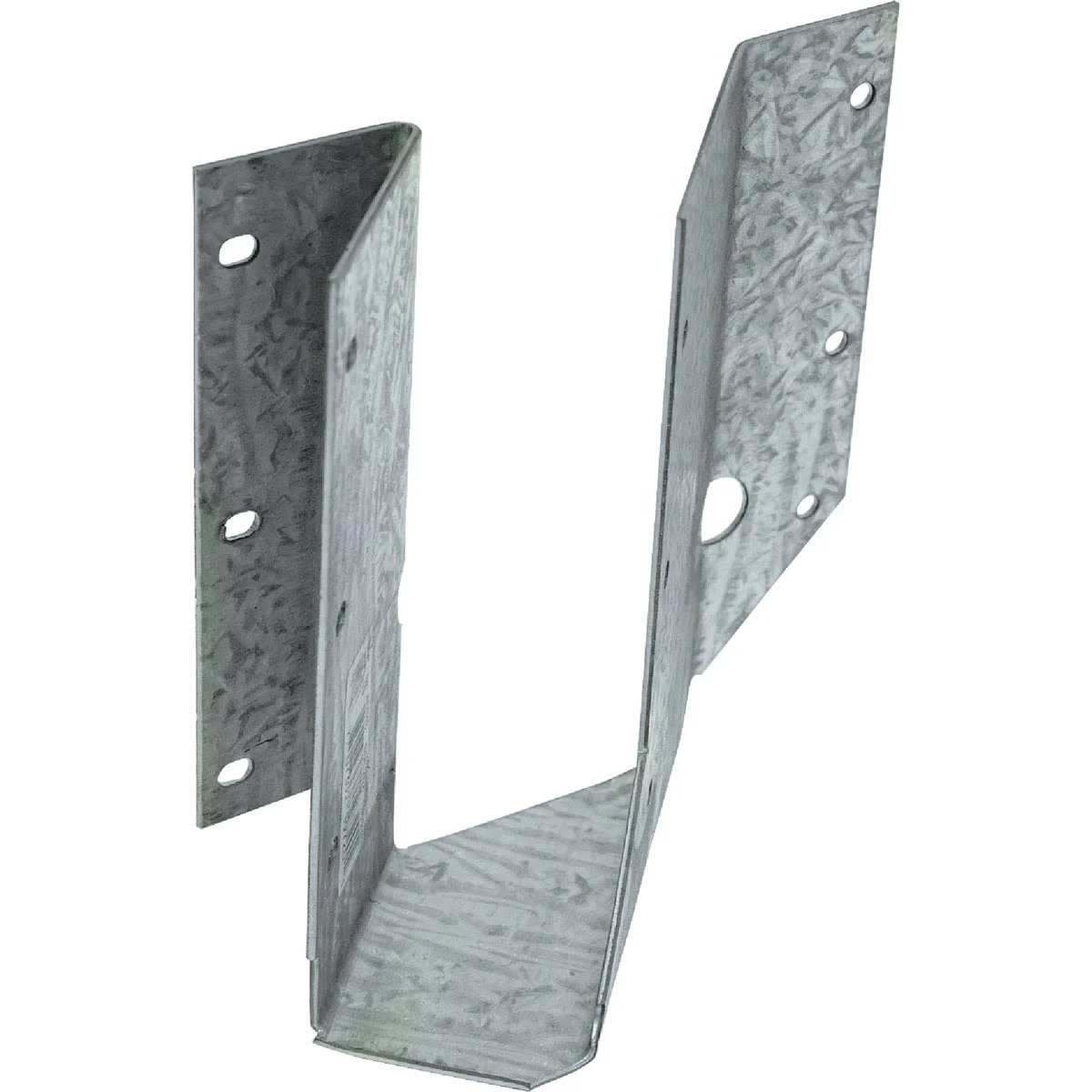

Optimize the structural integrity of wood construction with the Simpson Strong-Tie 2 x 6 In. Left Skewed Hanger. The SUL26Z model is a 45°-skewed hanger specifically engineered to support both solid sawn and engineered wood products. This U-shaped hanger is designed to encapsulate the top flange of the joist, effectively eliminating the need for web stiffeners in standard installations. The SUL26Z is part of a pair of skewed hangers, with its counterpart, the SUR, being skewed 45° to the right, offering versatile solutions tailored to different directional requirements in building frameworks.
Model Number: SUL26Z
Specifications
- Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
- These hangers cannot be modified but will accommodate a 40° to 50° skewed joist
- Features positive-angle nailing for engineered wood sizes to prevent wood splitting and to speed installation
- Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only (SURC or SULC)
- 16 gauge
- Galvanized. Some products available in ZMAX® coating or stainless steel
