Product Description

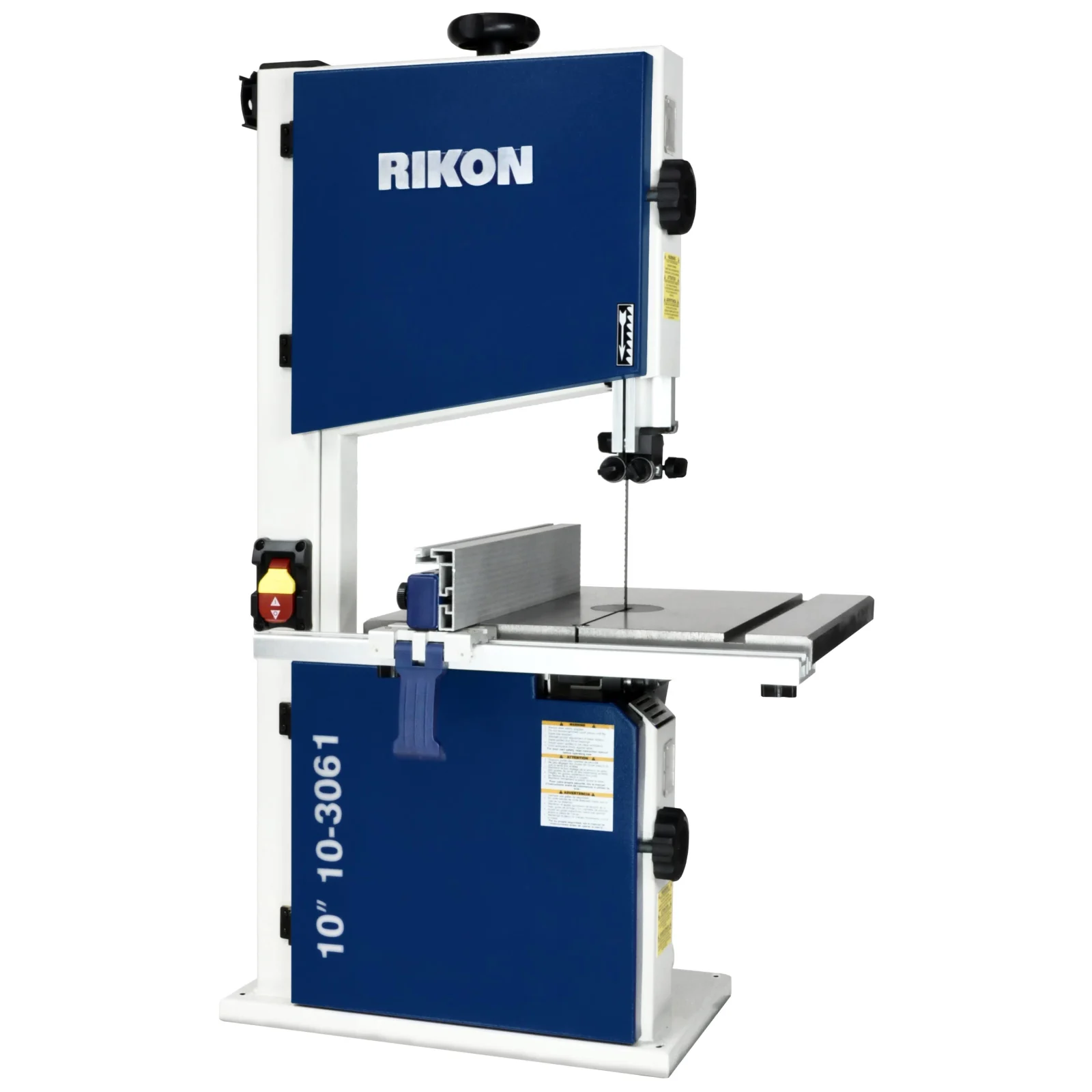

The RIKON 10″ Deluxe Bandsaw, (Model 10-3061), is a replacement of the previous 10-306 band saw model. This machine has all the features to provide ample power for smaller woodworking projects, in a compact size that shops with limited space will appreciate. It features an increased cutting capacity, 2-blade speeds, a powerful 1/2-hp motor and much more. It has also been redesigned to include a new 2-1/2” dust port which has moved up from the base and is also now tilted upward 10° so that dust fittings attach more easily. Includes rip fence. The optional steel stand is not included (sold separately).
New Redesigned Features:
Door Hinges – Are more sturdy to avoid breakage
Fence Carrier – Has 4 additional plastic inserts
Rip Fence – Is supplied with a plastic pad on the end to enable easier fence sliding
Lower Bandsaw Frame Construction – Improved positioning of the Lower Connecting Plate and Guide Assembly
Screws Located on the Lower Connecting Plate – For easier access with hex wrenches
Upper Bandsaw Frame and Guide Assembly – Ensures consistent 5” maximum cutting height can be achieved
Other Features:
2 Blade Speeds
Tool-less Blade Guides
Quick-Release Blade Tension Lever
Tilting 0-45° Cast Iron Table
Adjustable Rip Fence
Larger Blade Tension Knob
Dust Port for Shop Vacuum Hookup
Side Windows for Viewing Blade Tracking Settings
Storage Hander (for fence and tools)
Safety Paddle ON/OFF Switch
Model Number: 10-3061
Specifications
Motor
Horsepower: 1/2 HP
Amps: 5.5
Volts: 115V, 60Hz
Speed: 1,720 RPM
Cutting Capacity
Blade (Includes 5/16” x 6TPI, Regular)
Width: 1/8” – 1/2”
Length: 70-1/2”
2 Blade Speeds: 1,515/ 3,280 ft/min
Table
Size: 13-3/4” x 12-1/2”
Left Tilt: 5°
Right Tilt: 45°
Miter Gauge Slot: 5/8” x 1/4”
Height to Floor (with 13-913 stand): 39-7/8”
Height to Base: 14-1/2”
Fence Size: 12-1/4” x 2-3/8”
Overall
Height: 34-1/4”
Width: 21”
Depth: 16-1/4”
Base Size: 15-7/8” x 9-3/8”
Dust Port: 2-1/2” O.D., 2-5/16” I.D.
Net Weight: 77.5 lbs.
Manuals
Misplace the instructions? No problem! Hartville Hardware is here to help. Below is the instruction manual for the RIKON 10-3061 10” Deluxe Bandsaw. Read it before you buy it, or come back and download it if you have questions.
RIKON 10-3061 10” Deluxe Bandsaw Instruction Manual
