Product Description

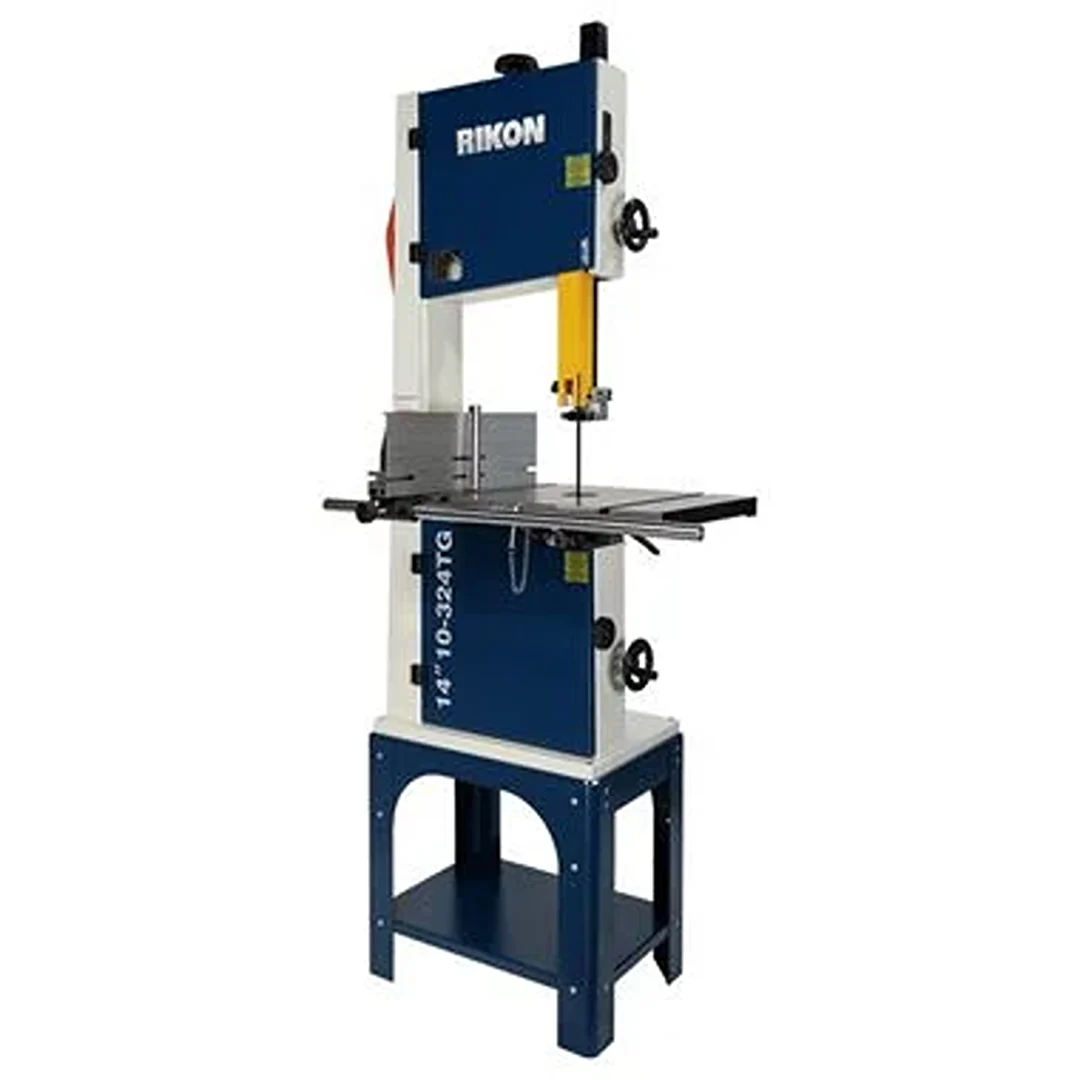

RIKON 14" 1-1/2 HP Bandsaw is RIKON’s most popular model due to its many professional features – including tool-less blade guides, a quick release blade tension lever, large adjustment handles, hinged safety blade guard with sight window, high work table height, and base stand with storage shelf.
Its dual voltage, 1-1/2HP motor provides ample power for most every work encountered. Pre-lubricated, sealed thrust and side ball bearing guides give smooth blade support during difficult cuts. Includes 6″ tall rip fence with resaw bar. Wired for use with 3-wire 115V receptacles.
• Rugged welded steel column and frame
• Balanced cast aluminum drive wheels
• Resaw Capacity 13″
• Dual blade speed ranges – 1445 / 2950 FPM
• Machined cast iron table with miter gauge ‘T’ slots
• Quick-release blade tension system
• Rack and Pinion upper guide adjustments
• Dependable 1.50HP 60Hz motor
Model Number: 10-324TG
Specifications
Dimensions (LxWxH): 74-1/2x30x25 Inches
Weight: 218 lbs
Motor Horsepower: 1-1/2 HP TEFC
Motor Amps: 14/7
Motor Volts: 115/230V, 60Hz, 1Ph
Blade Speed: 1,445/2,950 FT/MIN
Cutting Capacity Height: 13”
Cutting Capacity Width: 13-5/8”
Blade Width: 3/16” – 3/4”
Blade Length: 111”
Table Size: 21-1/2” x 15-3/4”
Table Left Tilt: -5°
Table Right Tilt: 45°
Table Miter Gauge "T" Slot: (2) 3/4” x 3/8”
Table Height to Floor: 39-1/2”
Table Height to Base: 20”
Table Fence Size: 18-3/4” x 1-3/4” x 6”
Wheel Material: Cast Aluminum
Table Trunnion: Cast Aluminum
Overall Base Size: 21-5/8” x 14-3/4”
Dust Port: 1@4”
Manuals
Misplace the user manual? No problem! Hartville Hardware is here to help. Below is the user manual for the RIKON 14 Inch Bandsaw. Read it before you buy it, or come back and download it if you have any questions after getting your trailer home.
RIKON 14 Inch Bandsaw Manual
