Product Description

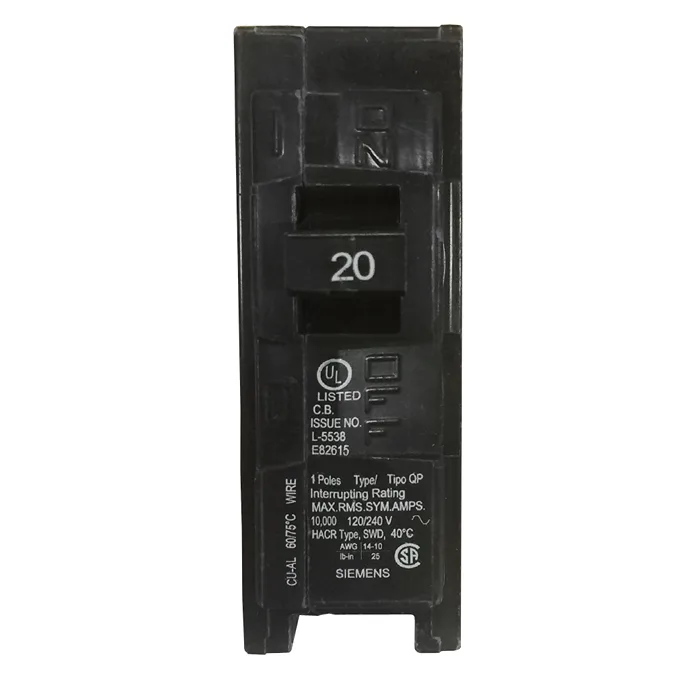

Siemens Q120 1-Pole Plug-In Circuit Breaker is a reliable and efficient single pole circuit breaker designed for use in EQ 125A style panels. Rated at 20 amps, this full-size breaker (1" per pole) operates at 120/240VAC with a 10,000A interrupting rating. It features a non-interchangeable trip and is HACR rated, making it suitable for a variety of applications. UL listed for frequent switching applications (SWD), this breaker is ideal for 120V AC fluorescent lighting. The lug-type wire connection terminals are UL listed for 60°C/75°C conductors and are also CSA listed, ensuring safety and compliance.
Model Number: 4-231
Specifications
- Amps: 20A
- Manufacturer-Brand: Siemens
- Poles: 1P
- Type: Breaker
- Volts AC: 120V
- Interrupting Rating: 10,000A IR
- Non-Interchangeable Trip
- HACR Rated
- UL Listed for frequent switching applications (SWD)
- Suitable for: 120V AC fluorescent lighting
- Wire Range: Copper: #14 - #8 AWG, Aluminum: #12 - #8 AWG
- Weight: 0.28 lbs. each
- Terminals: UL listed for 60°C/75°C conductors
- CSA Listed
