Product Description

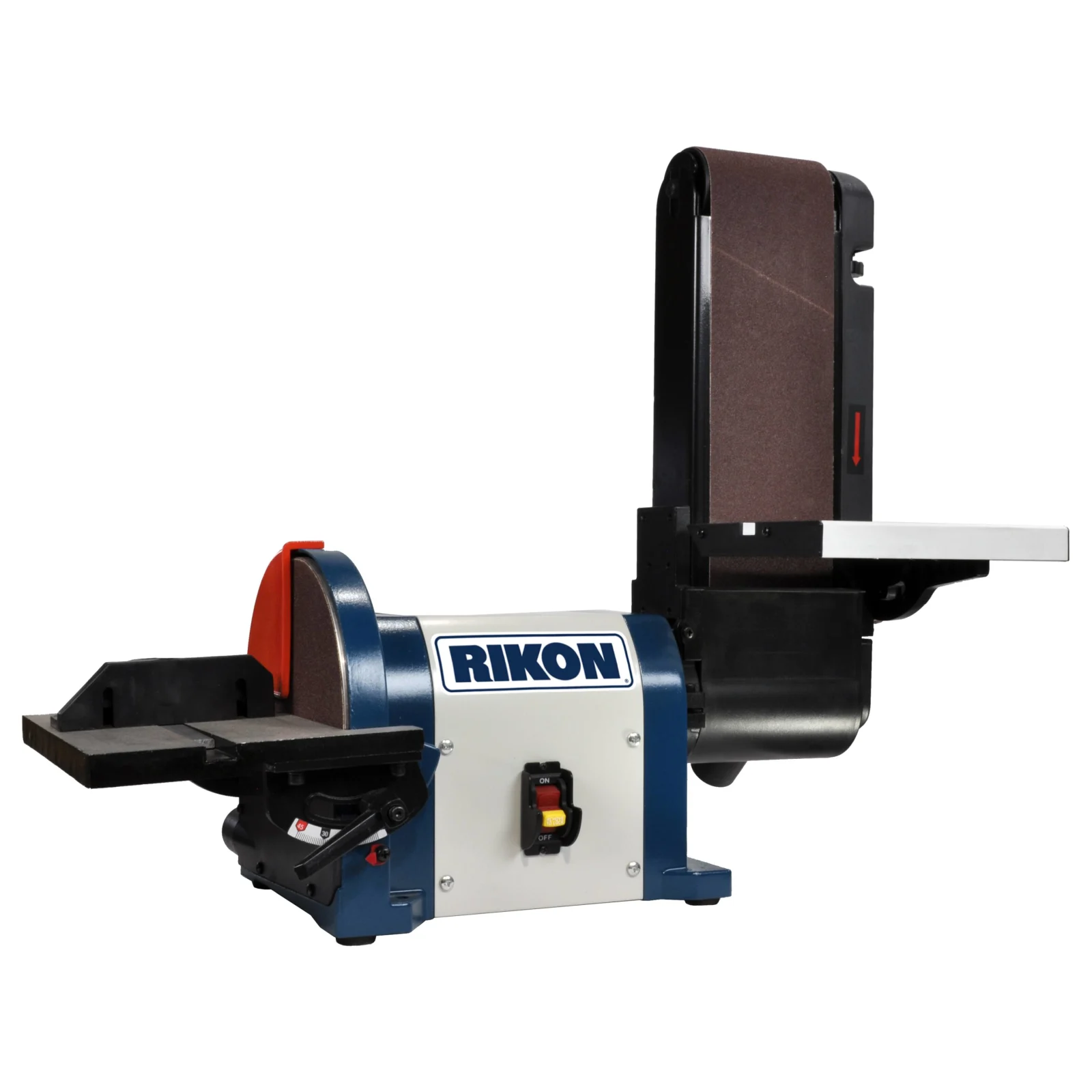

This RIKON 4” x 36” Belt with 8” Disc Sander offers powerful sanding with its direct drive power system which drives both the disc and the belt. This machine offers sanding speeds that effortlessly sands wood while also giving users more control when shaping and finishing. For added convenience, the belt frame adjusts in any position from horizontal to vertical while both the disc and belts’ support fences tilt 0-45 degrees for angled work.
Other Features:
8” Sanding Disc – Offers a large diameter
Sturdy Die-Cast Metal Frame Construction – Offers precise fitting parts and rigidity during use
Tracking Knobs – Allow correct positioning of belts on frames
Work Tables – Adjust 0° to 45° with large locking lever handles for sanding angles
PSA Sanding Discs - Apply quickly to the metal disc for instant use
2 Tilting Tables – For fine, detailed and angled sanding work
ON/OFF Switch – Has a removable safety tab for extra security
Model Number: 50-114
Specifications
Motor
Horsepower: 3/4 HP
Amps: 5
Volts: 120V, 60Hz
Table
Disc Table Size: 10-3/8” x 5-7/8”
Tables Tilt: 0° to 45°
Miter Gauge: Included
Miter Gauge Slot (16 x 6.5mm): 5/8” x 5/16”
Belt Table Size: 7-1/2” x 6-1/4”
Belt
Size: 4” x 36”
Speed: 2,165 SFPM
Tilt: 0° – 90°
Disc
Diameter: 8” PSA
Speed: 3,450 RPM
Overall
Height: 20”
Width: 25-1/4”
Depth: 14”
Base Size: 10-7/8” x 8-5/8”
Dust Ports: 2 @ 1-1/2” O.D.
Net Weight: 32.4 lbs.
Manuals
Misplace the instructions? No problem! Hartville Hardware is here to help. Below is the instruction manual for the RIKON 50-11 Belt With 8 in. Disc Sander. Read it before you buy it, or come back and download it if you have questions.
RIKON 50-11 Belt With 8 in. Disc Sander Instruction Manual
