Product Description

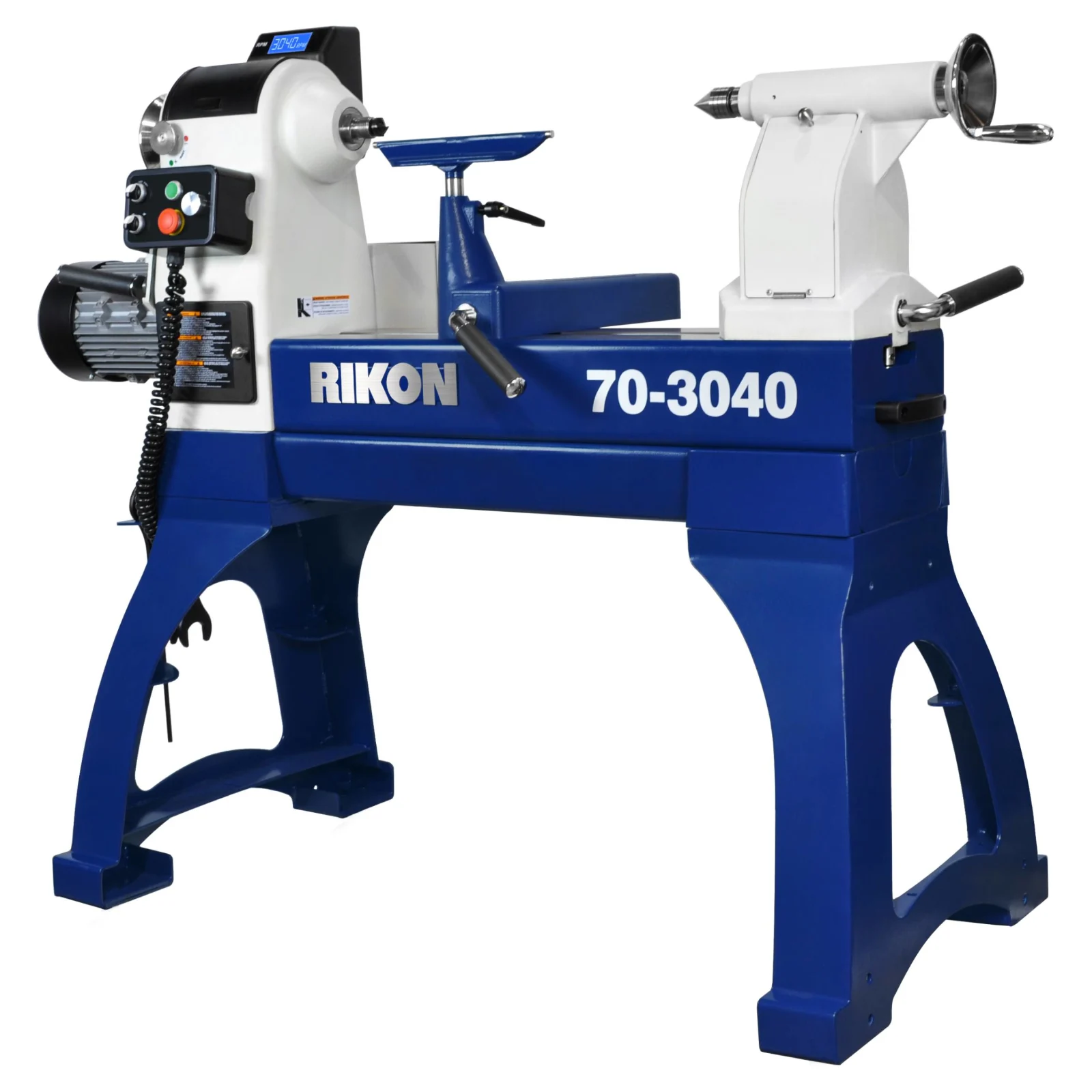

This Heavy Duty 70-3040 Variable Speed Lathe from RIKON features an innovative sliding bed that increases turning capacity with a simple turn of a switch! It has a special motorized upper bed that effortlessly moves to the right away from the headstock to double the standard between-centers distance from 20” to 40”. In addition, moving the sliding bed also increases the swing from 23-7/32” to 31-1/4” over the lower bed. This makes the lathe ideal for turning applications such as turning large bowls or platters. This lathe is designed to save on space but is also extra heavy-duty. Constructed of solid cast iron and steel, this robust lathe takes on the stress when turning large diameter bowls or spindles. The 3-hp 220-volt motor, 4 heavy-duty bearings in the headstock and digital speed controls all combine to provide professional turners with a versatile lathe machine that delivers optimal power and accuracy.
Main Features:
Motorized Sliding Bed – Increase spindle length 20” up to 40”
Motor & Switch – Powerful 3HP motor delivers ample power
Index Head – 3-Step, multi-V pulleys include 36 index positions
Control Box – Magnetic back positions controls anywhere on long bed
LCD Speed Display – Big easy-to-read speeds from 20 to 3850 RPMs
Banjo – Cast iron tool rest base is extra wide and sturdy
Model Number: 70-3040
Specifications
Motor Volts: 220V, 50/60 Hz
Motor RPM: 1,720 RPM
Direction: Forward/Reverse
Number of Speeds: Variable
Speed Ranges: 20 – 650 / 50 – 1,750 / 100 – 3,850
Swing Over Bed: 23-7/32” to 31-1/4”
Swing Over Tool Rest: 17-13/32” to 25-7/16”
Working Distance Between Centers: 20” to 40”
Tool Rest Post Diameter: 1”
Spindle Nose (Inch x TPI): 1-1/4” x 8
Headstock Taper: MT2
Tailstock Taper: MT2
Ram Travel: 4-11/16” (120mm)
Indexing Positions: 36
Overall Length: 61-5/8” to 81-5/8”
Overall Width: 30-1/8”
Overall Height: 50-3/8”
Overall Net Weight: 546 lbs.
Bottom of Base to Spindle: 44” (1118mm)
Manuals
Misplace the instructions? No problem! Hartville Hardware is here to help. Below is the instruction manual for the RIKON 70-3040 VSR Lathe. Read it before you buy it, or come back and download it if you have questions.
RIKON 70-3040 VSR Lathe Instruction Manual
