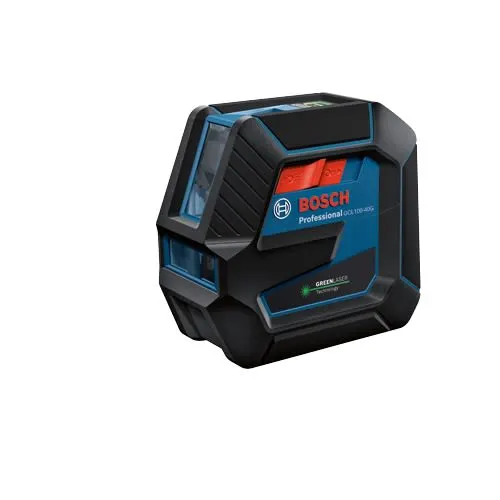

Bosch Green-Beam Self-Leveling Cross-Line Laser with Plumb Points

  • SKU 1542134
IN STORE ONLY
Check In-Store Availability
Add to Cart

Product Description

The Bosch GCL100-40G Green Beam Self-Leveling Cross-Line Laser with Plumb Points uses green-beam technology to emit lines up to 165-feet. These green beams are up to 4x brighter than standard red beams and can be used vertically, horizontally, cross-line, upwards and downwards. Plus, this laser tool can shine two lines independently or together for assistance in a variety of alignment and leveling applications. This laser is equipped with Bosch-exclusive VisiMax™ technology, which monitors the tools temperature and power consumption to offer the brightest line for the job. Protected by a full rubber overmold on every major impact point, this tool is also designed to hold up against the toughest jobsite drops.

Features:

  • Easy-to-use line laser – Makes job set up quick with a range up to 165 Ft. and vertical, horizontal and cross-line modes
  • Plumb points – Projects upward and downward green laser points for transferring applications with a range of up to 50 Ft.
  • Bosch VisiMax™ technology – Consistently monitors power consumption to maximize line visibility and extend battery life
  • Bright green-beam laser — Offers up to 4X brighter lines than standard red beams
  • Full rubber overmold housing – Protects every major impact point, with a design similar to a roll cage
  • Easy-to-use laser setup modes – Controls vertical, horizontal, cross lines, and plumb points
  • Versatile job layout – Projects lines separately or together for a variety of level and alignment applications
  • Pulse receiver mode – Can be used with an optional laser receiver for applications with a 165 Ft. working range
  • Smart Pendulum System – Allows the tool to self-level and indicate out-of-level conditions
  • Secure laser transport – Pendulum can be locked by switching the tool off
  • Onboard user interface – Makes layout modes easy to select
  • RM10 Rotating Mount – Provides fast setup, extra-strong magnets, and fine adjustment rotation nob
  • Jobsite IP64 rated construction – Withstands rainy or dusty jobsite conditions
  • Battery gauge – Features a three-LED indicator for battery management

Includes:

  • (1) GCL100-40G Green-Beam Self-Leveling Cross-Line Laser with Plumb Points
  • (1) RM10 Rotating Mount
  • (4) AA Batteries
  • (1) Hard Carry Case

Model Number: GCL100-40G

Specifications

  • Range: Up to 165-ft.
  • Laser Beam Color: Green
  • Laser Diode: <10 mW @ 500 nm -540 nm, Class 2
  • Leveling Type: Self-Leveling, Up to 4°
  • Material: Plastic with over-mold
  • Mount Threading: 1/4-20
  • Operating Temperature: 14° F / -10° C ~1 22° F / 50° C
  • IP Rating: IP 64
  • Dimensions: (L) 4.5 x (W) 2.5 x (H) 5 in
  • Weight: 1.28 lbs
