Product Description

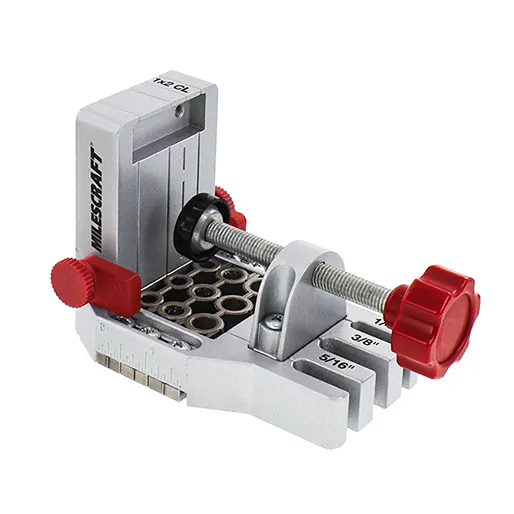

Milescraft JointMaster Self-Clamping Doweling Jig. An adaptable jig for any woodworking project, whether its creating edges, corners, or surface joints. It comes with three drill blocks that can create joints using the common dowel pin sizes of 1/4-in., 5/16-in., and 3/8-in. Each drill block is adjustable in order to accept and align centered dowel holes from 1/2-in. to 3-in. with built-in scales that help align and center the dowels. The JointMaster features built-in edge stops to provide precise alignment. It also features a self-clamping design so no other clamps are needed. The clamp body can even be removed to allow for other clamping solutions, if necessary.
Model Number: 1334
Specifications
- Main Body Material: Metal
- Drill Guide Bushing Block Material: Hardened Steel
- Drill Guide Bushing Block Sizes: 3/8″, 1/4″, 5/16″
- Centering Spacer Sizes: 3/8″, 1/4″, 5/16″
