Product Description

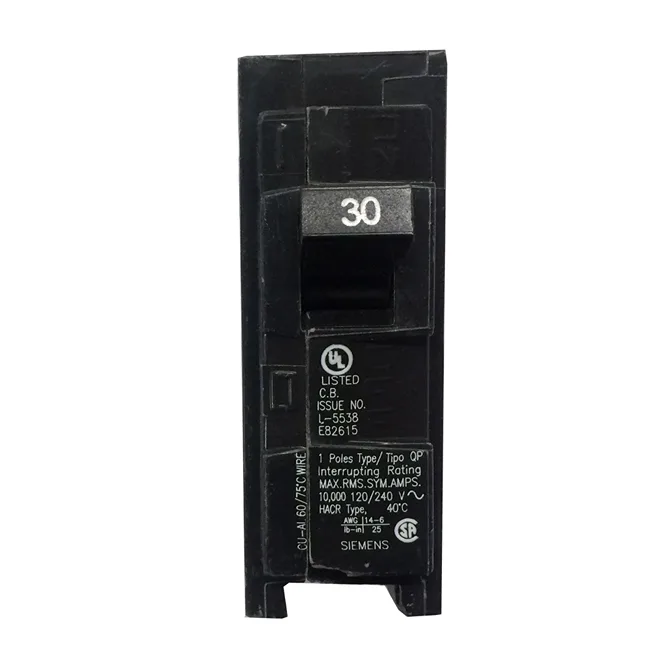

Siemens Q130 30 Amp Single Pole Plug-In Circuit Breaker is a reliable and efficient solution for protecting electrical circuits. Designed for use in EQ 125A frames, this molded case circuit breaker features a QP plug-in design and can handle a 10,000A interrupting rating. With a continuous current rating of 30 amps at 40°C, it ensures robust performance and safety. The load side lug wire range accommodates #14-#8 AWG copper and #12-#8 AWG aluminum wires. UL listed for frequent switching applications (SWD) and HACR rated, this breaker meets high safety standards. Its compact dimensions make it easy to install and maintain.
Model Number: 4-232
Specifications
- Amps: 30A
- Manufacturer-Brand: Siemens
- Poles: 1P
- Type: Breaker
- Volts AC: 120V
- Interrupting Rating: 10,000A IR
- Continuous Current Rating @ 40°C: 30 Amp
- Load Side Lug Wire Range: #14-#8 AWG Cu, #12-#8 AWG Al
- UL Listed for frequent switching applications (SWD)
- HACR Rated
- Dimensions:
- Length: 2-7/8"
- Depth (Excluding Toggle): 2-3/8"
- Depth (Including Toggle): 3"
- Thickness: 1"
