Product Description

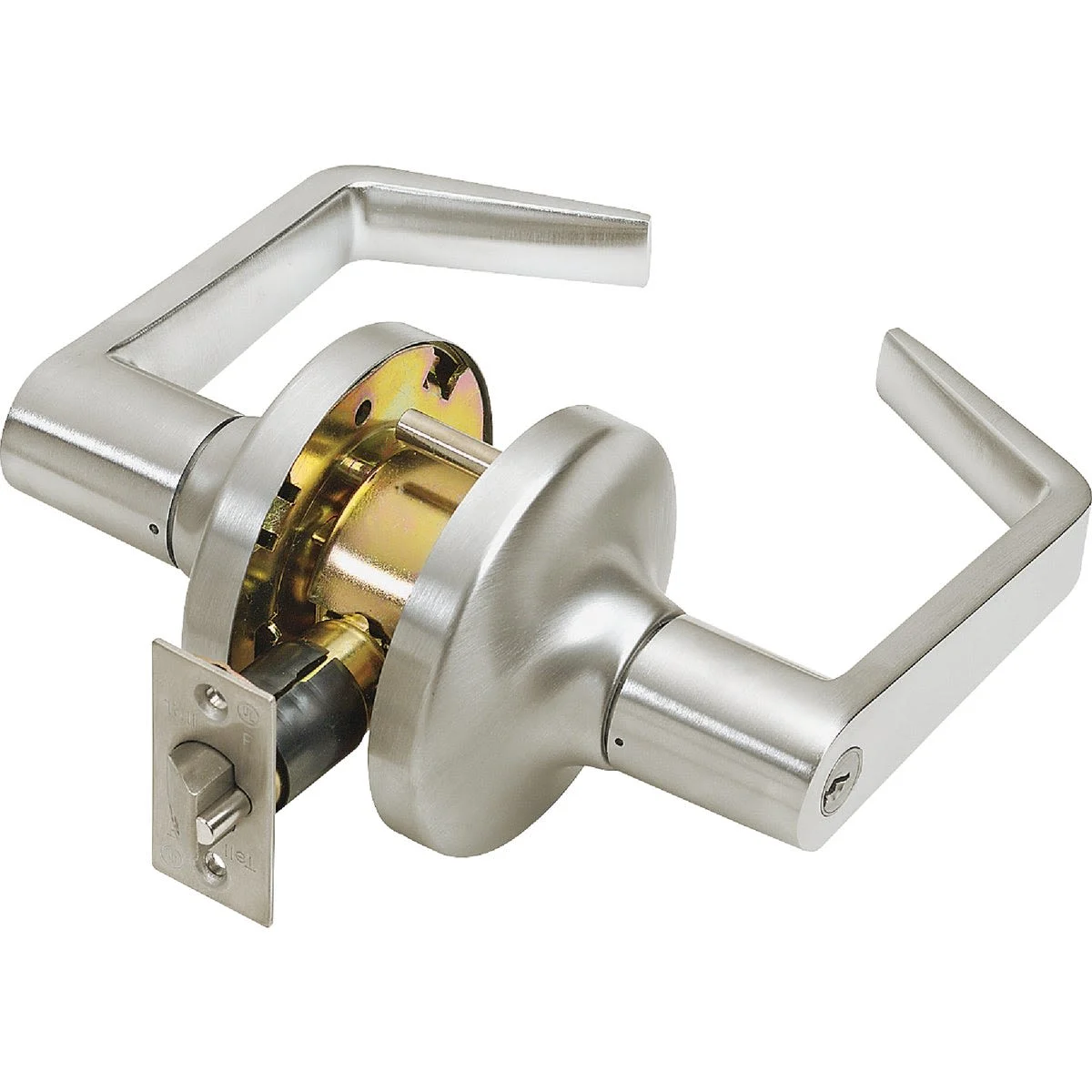

(LC2481). Heavy-duty commercial entry lever. Satin chrome (US26D) finish. Performance: Complies with ANSI A156.2, Series 4000, Grade 2 (400,000 cycles). UL listed for 3 hour fire door ANSI A117.1 Amercian Disabilities Act (ADA). Keying: 6 pin SCC keyway with 2 nickel keys per lock. Door range: 1-3/8" to 2". Backset: 2-3/4" standard. Strike: T strike (1-1/8" x 2-3/4") standard. Cylindrical, steel-coated with zinc dichromate (corrosion resistance). Latchbolt operated by lever from either side. Outside lever locked by turn button from inside. Unlocked by key from outside or rotating inside lever. Model CL100011: Finish: Satin Chrome, Backset: 2-3/8" or 2-3/4", Mounting: Nonhanded, Security Level: Grade 2, Exterior Access: Key, Interior Action: Turn Button, Function: Entry, Pkg Qty: 1, Package Type: Clamshell
Specifications
No specifications available for this product
Manuals
No Manuals available for this product
Warranty & Certifications
No Manuals available for this product
