Product Description

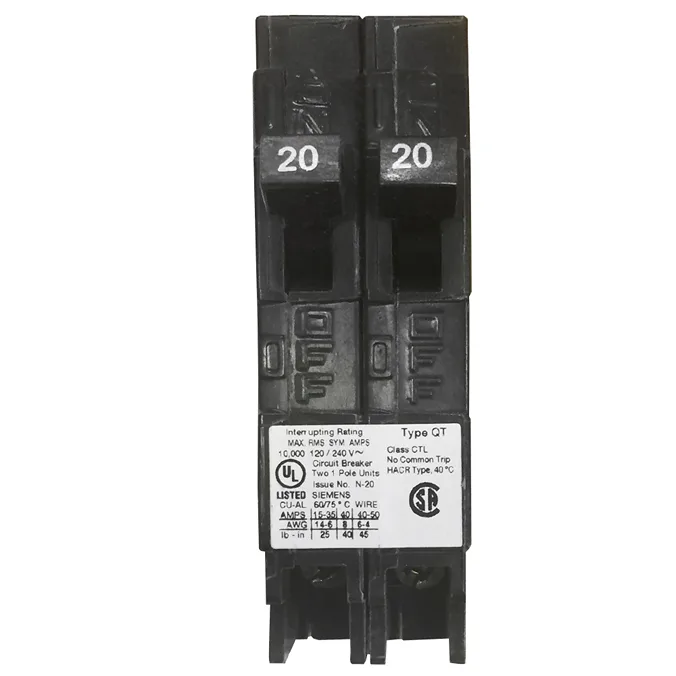

Siemens Q2020 Dual 1-Pole Plug-In Circuit Breaker is a molded case dual 1-pole breaker designed for efficient protection and performance. Rated at 20A per pole, this breaker features a rejection EQ 125A frame with a QP plug-in design, capable of handling 10,000A IR. It is UL listed for frequent switching applications (SWD) and HACR rated, ensuring safety and compliance. The load side lug wire range accommodates #14-#6 AWG copper and #12-#6 AWG aluminum wires. Its compact dimensions make it easy to install and maintain, providing reliable circuit protection.
Model Number: 4-246
Specifications
- Amps: 20A / 20A
- Manufacturer-Brand: Siemens
- Poles: 1P (Dual)
- Type: Breaker
- Volts AC: 120V
- Interrupting Rating: 10,000A IR
- Frame: EQ 125A
- Load Side Lug Wire Range: #14-#6 AWG Cu, #12-#6 AWG Al
- UL Listed for frequent switching applications (SWD)
- HACR Rated
- Dimensions:
- Length: 2-7/8"
- Depth (Excluding Toggle): 2-3/8"
- Depth (Including Toggle): 3"
- Thickness: 1"
