Product Description

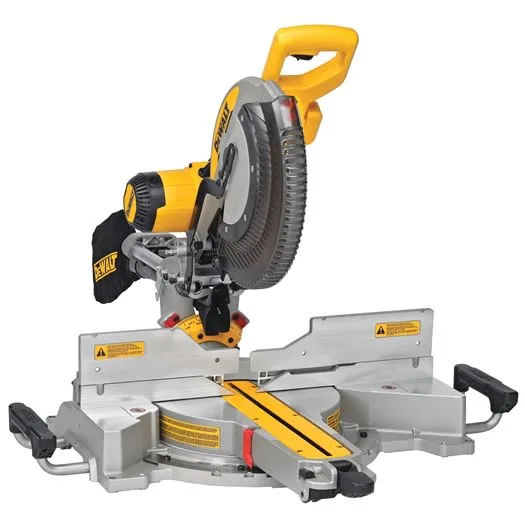

The DEWALT 12" Double Bevel Sliding Compound Miter Saw features a 15-amp motor and integrated XPS crosscut positioning system for adjustment-free, precise cut line indication. Tall sliding fences support 7-1/2” of nested crown and 6-3/4” of base molding vertically. Exclusive Back Fence Design cuts up to 2x14 dimensional lumber at 90° increased miter capacity of 60° (R) and 50° (L) features durable stainless-steel miter detent plate with cam lock for repeatable accuracy with easy adjustments.
Other Features:
Integrated CUTLINE™ Blade Positioning System – Provides adjustment free cut line indication for better accuracy and visibility
Powerful 15-amp, 3,800 RPM Motor – Delivers extended power and durability
Super-efficient dust collection system – Captures over 75% of dust generated
Tall sliding fences – Supports crown molding up to 7-1/2” nested and base molding up to 6-3/4” vertically against the fence while easily sliding out of the way for bevel cuts
Exclusive back fence design – Cuts up to 2x14 dimensional lumber at 90° and 2x10 at 45°
Adjustable stainless-steel miter detent plate with 10 positive stops – Improves productivity and ensures cutting accuracy
Miters 60° to the right and 50° to the left – Providing increased capacity
Oversized bevel scale – Makes bevel angle adjustments accurate and easy
Compact, lightweight design – Allows for easy transport and storage
Cam lock miter handle with detent override - Delivers quick and accurate miter angles
Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings – Deliver an accurate, durable and compact saw
Innovative gearbox and belt-drive design – Increases vertical cutting capacity
Precise miter system and machined base fence support – Optimize durability and cutting accuracy
Includes:
(1) 12” Miter Saw (DWS780)
(1) Blade wrench
(1) Dust bag
(1) Vertical material clamp
(1) 12” Carbide Blade
Model Number: DWS780
Specifications
45° Bevel Cut Capacity (Dimensional Lumber): 2x14 (2x16 with Back Fence)
45° Miter Cut Capacity (Max. Height): 4x8
45° Miter Cut Capacity (Max. Width): 4x8
90° Cross-Cut Capacity (Dimensional Lumber): 2x14 (2x16 with Back Fence)
90° Cross-Cut Capacity (Max. Width): 14” (16” with special setup)
Horizontal Capacity (Baseboard lying flat): 16”
Horizontal Capacity (Crown molding lying flat): 13-3/4”
Vertical Capacity (Baseboard against fence): 6-3/4”
Vertical Capacity (Crown molding vertically nested): 7-1/2”
No Load Speed: 3,800 RPM
Amps: 15
Arbor Size: 5/8” or 1”
Blade Diameter: 12”
Application: Wood Cutting
Handle Type: Top Handle
Miter Saw Type: Slide
Power Tool Type: Corded
Tool Weight: 56 lbs.
Manuals
3 Year Limited Warranty, 1 Year Free Service
Warranty & Certifications
Misplace the user manual? No problem! Hartville Hardware is here to help. Below is the user manual for the DEWALT 12 in. Double Bevel Sliding Compound Miter Saw. Read it before you buy it, or come back and download it if you have any questions after getting your sawhome.
DEWALT 12 in. Double Bevel Sliding Compound Miter Saw User Guide
