Product Description

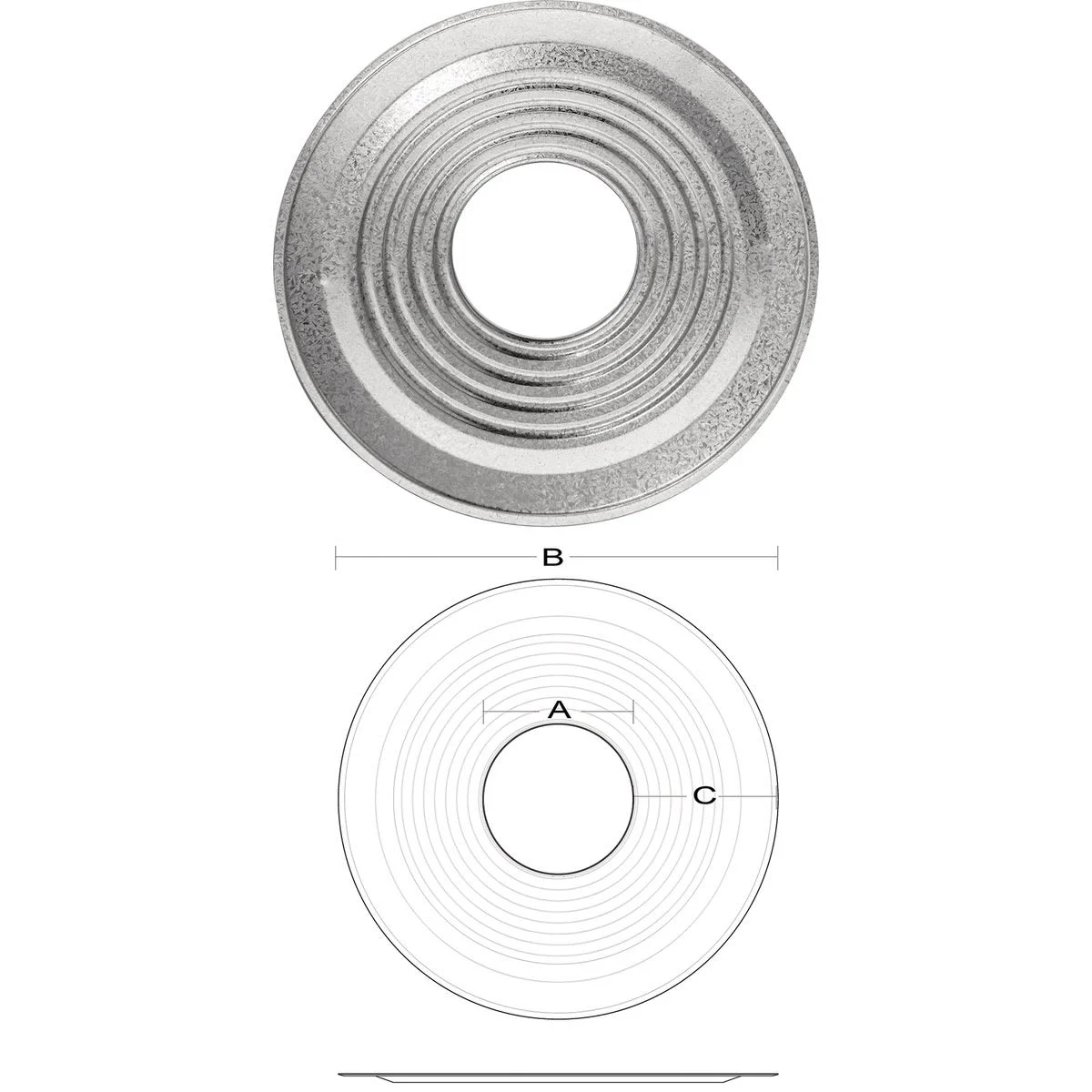

Selkirk RV 4" x 4-3/4" x 9-1/2" Gas Vent Collar serves both functional and aesthetic purposes within a gas venting system, particularly one utilizing Type B gas vents. This collar provides a finished and decorative appearance to the vent installation, ensuring that it looks clean and well-finished. Additionally, it can serve as a firestop, helping to prevent the spread of fire through openings in floors, ceilings, and walls where the gas vent passes through. The collar features a specific dimension, with a C measurement of 2-3/8". It's important to note that the sizing refers to the inside diameter of the pipe or fitting, and the outside diameter of RV pipes is typically about 1/2" larger. Overall, this gas vent collar enhances both the safety and aesthetics of the venting system.
Model Number: 104460
Specifications
- Size: 4 In.
- A Size: 4-3/4 In.
- B Size: 9-1/2 In.
- C Size: 2-3/8 In.
- Material: Galvanized Steel
- Temperature Rating: 550 F
- Grade: UL Listed
- Brand: SELKIRK
- Package Quantity: 1
- Unit of Measurement: Each
- Country of Origin: United States of America
