Product Description

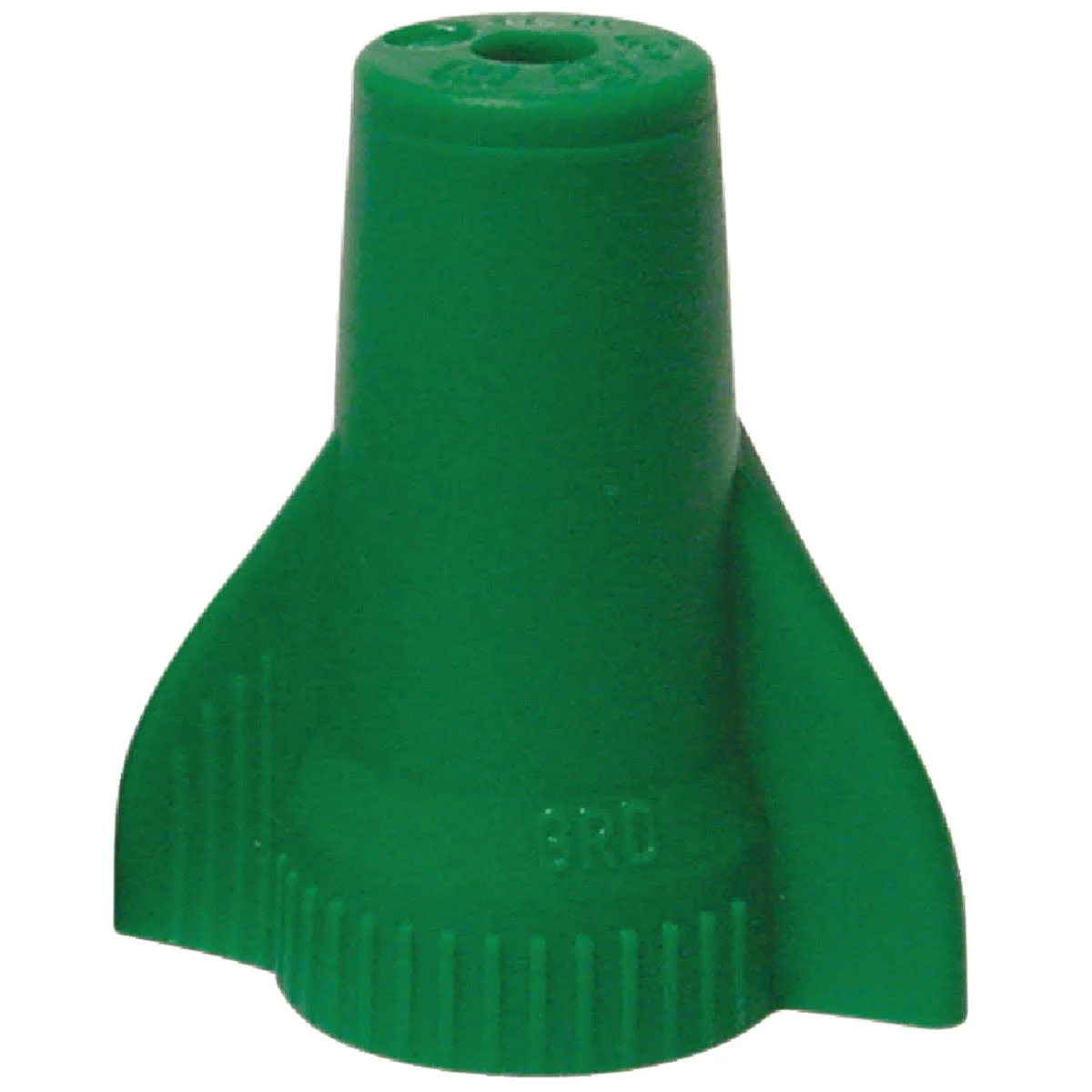

Color-coded bright green to indicate grounding. Specifically designed to make positive ground connections and bond nonmetallic sheathed cable. Live action, square wire spring automatically adjusts to wire shape and size while twisting wires together. Hole at top of wing nut for grounding wires from system to ground terminal and box. Pressure-type screw-on connector for use with 1 No. 10, with 1 or 2 No. 12, 1 No. 10, with 1 to 3 No. 14, 1 or 2 No. 12, with 1 to 3 No. 14, 3 No. 12, with 1 No. 14, 2 to 4 No. 12, 2 to 2 No. 14. No. 10-095: Size: Medium, Color: Green, Joins: 14 AWG thru 10AWG, Minimum Combo: (2) 14 AWG, Maximum Combo: (4) 12 AWG, Pkg Qty: 100, Package Type: Box No. 25-095: Size: Medium, Color: Green, Joins: 14 AWG thru 10AWG, Minimum Combo: (2) 14 AWG, Maximum Combo: (4) 12 AWG, Pkg Qty: 25, Package Type: Bag
Specifications
No specifications available for this product
Manuals
No Manuals available for this product
Warranty & Certifications
No Manuals available for this product
