Product Description

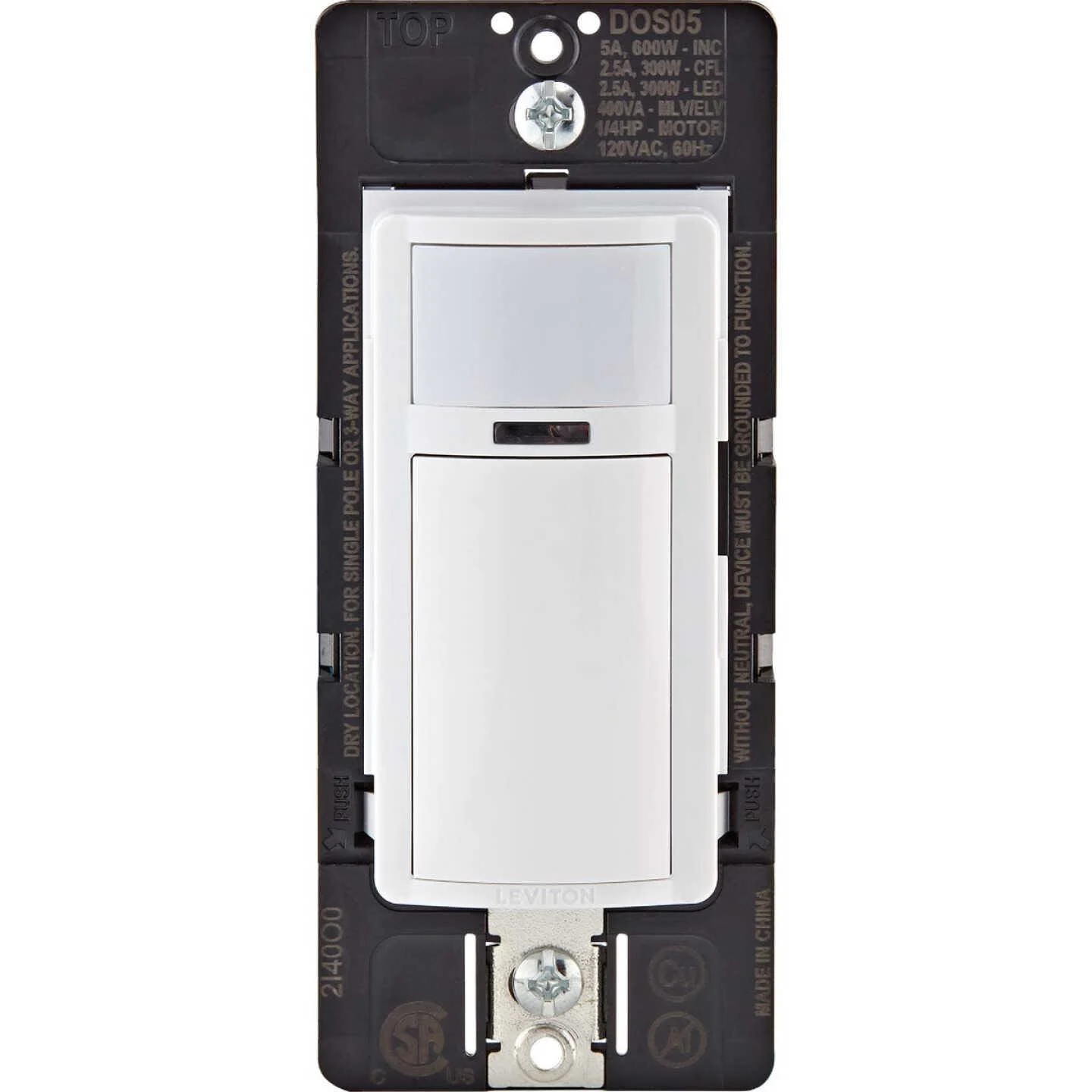

This Decora White Motion Detection Sensor Switch from Leviton is an automatic on wall box sensor switch. It is ideal for pantries, closets, laundry rooms and basements. This detection sensor has a 180-degree field of view and covers up to 900 square feet of space. This sensor switch controls LED, CFL, incandescent, halogen, magnetic low voltage and electronic low voltage light bulbs.
This switch has a shallow design that easily fits in the wall box and can replace a single pole switch. It includes leaded terminals for easy installation and the settings are able to be programmed without removing the wall plate or faceplate.
Features:
- 900 Sq. Ft. of coverage
- 180 Deg. field-of-view
- Automatic On/Off operation
- Shallow design easily fits in the wall box and can replace single pole switch
- Settings can be programmed without removing the wall plate or faceplate
- Ambient light override prevents sensor from switching the lights ON when there is ample natural light
- Adjustable delayed OFF time which can be set for 1, 5, 10, or 20 minutes
- Convenient push-button provides Manual OFF light switching at any time
- Can be used to comply with 2019 California Title 24, Part 6 Vacancy Control Device Requirements
Style Number: R02-DOS05-1LW
Specifications
- Color: White
- Coverage Area: 900 Sq. Ft.
- Field of Detection: 180 Deg.
- Type: Occupancy
- Number of Poles: Single-Pole or 3-Way
- Time Adjustment: Yes
- Voltage: 120 VAC
- Power Rating: 300W LED/CFL, 600W Incan/Halogen, 1/4HP
- Grade: Residential
- Certification: Title 24 Compliant/UL Listed
- Pack Count: 1
