Product Description

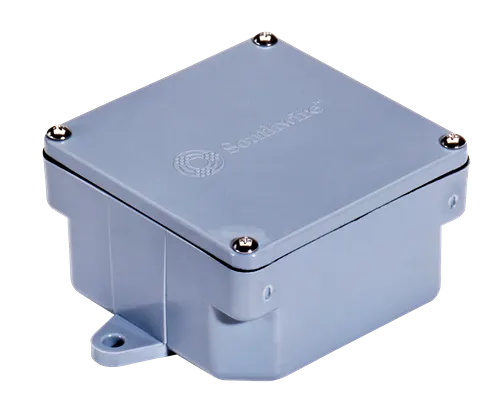

Southwire 6" x 6" x 4" Junction Box is a durable and versatile solution for protecting wire splices and connecting multiple conduits. This surface-mounted enclosure, made from PVC with zinc-plated steel screws, is designed for multiple conduit connections and internal wiring. Rated NEMA 3 where indicated, this junction box is suitable for various applications, including being concrete encased or buried, although it is not warranted to be watertight in all conditions. The box requires an appropriate round hole to be cut for conduit entrance, and male adapters or box adapters can be used to secure conduit connections.
Model Number: 1225TZ
Specifications
- Dimensions: 6" x 6" x 4"
- Material: PVC
- Screws: Zinc-plated steel
- Rating: NEMA 3 (where indicated)
- Mounting Type: Surface-mounted
- Application: Allows multiple conduit connections and wire splices
- Conduit Entrance: Requires appropriate round hole to be cut
- Adapters: Male adapters or box adapters recommended for securing conduits
- Weather Resistance: Can be concrete encased or buried (not guaranteed watertight for all conditions)
