Product Description

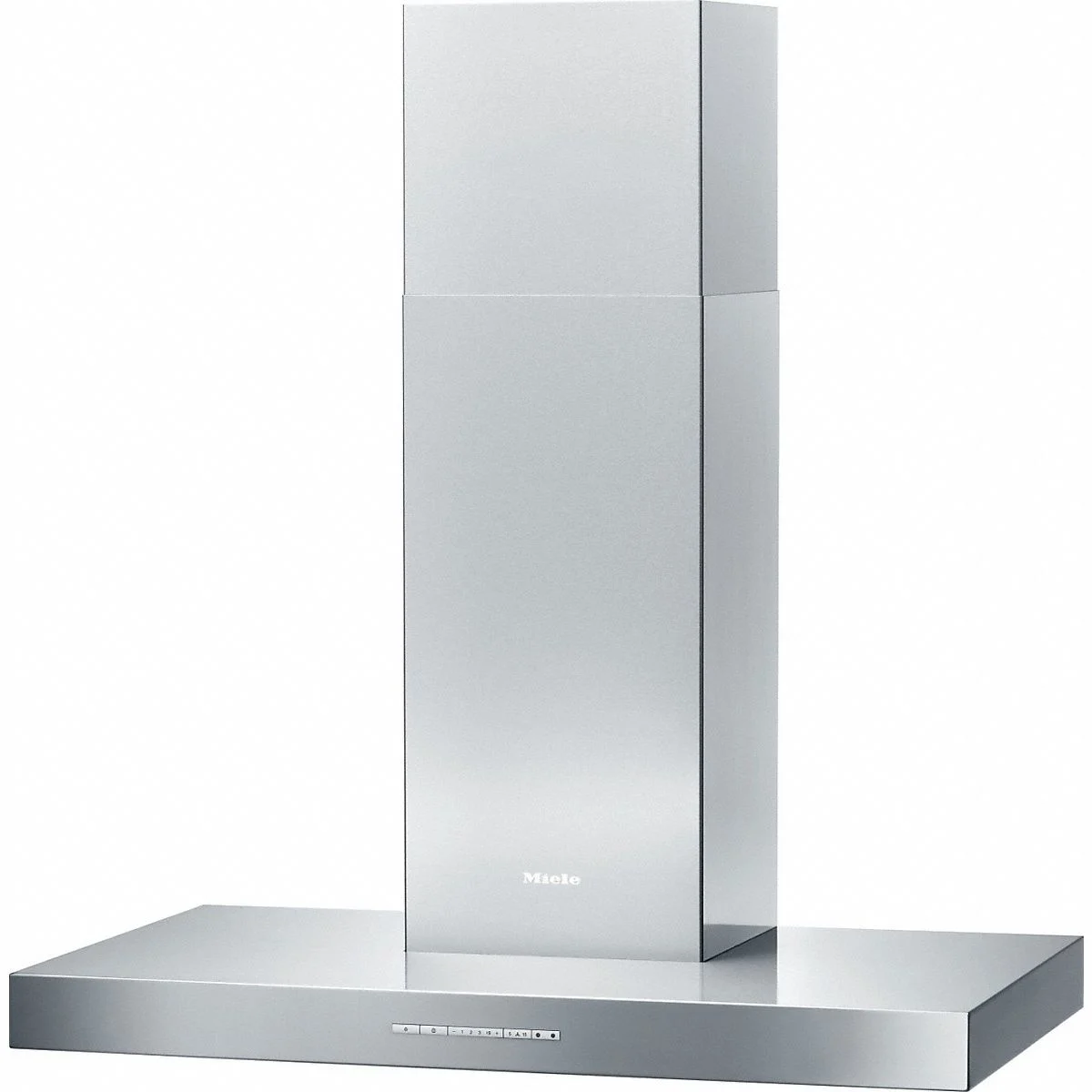

Wall ventilation hood with energy-efficient LED lighting and backlit controls for easy use.
Features
- Timeless design - 35 3/8 (898) in (mm) wide stainless steel ventilation hood
- Unique convenience - Con@ctivity 2.0
- Powerful - on the booster setting
- Efficient and beautiful - Multi-zone edge extraction
- Variable : edge vented panels made of glass or stainless steel
Specifications
| Recirculated mode | Convertible |
|---|
| Control Panel | Electronic controls |
|---|
| Control Panel | Programmable charcoal filter saturation indicator |
|---|
| Design | Multi-zone edge extraction |
|---|
| Minimum distance above electric cooktops in in.(mm) | 24 1/8 (610) |
|---|
| Power levels (number excl. Intensive) | 3 |
|---|
| Total connected load in kW | 0.36 |
|---|
| Blower | AC motor |
|---|
| Installation Notes | Vent connection at top |
|---|
| Technical Data | Standard plug fitted |
|---|
| Light intensity in Lx | 460 |
|---|
| Number of phases | 1 |
|---|
| Net weight in lbs. (kg) | 56 (25.0) |
|---|
| Installation Notes | Telescopic chimney |
|---|
| Color | Stainless steel |
|---|
| Cleaning convenience | EasyClean CleanCover hood liner |
|---|
| Control Panel | Programmable grease filter saturation indicator |
|---|
| Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm | 26 (660) |
|---|
| Dishwasher-safe stainless steel grease filters | 3 |
|---|
| Installation Notes | Vent connection at top and rear |
|---|
| LIGHTING | LED ClearView lighting |
|---|
| Standard accessories | Non-return flap |
|---|
| Installation Notes | Telescopic wall bracket |
|---|
| Networking of domestic appliances | Automatic function Con@ctivity 2.0 |
|---|
| Canopy width in in.(mm) | 35 3/8 (898) |
|---|
| Control Panel | Delayed shutdown for 5 or 15 minutes |
|---|
| Height of hood canopy in in.(mm) | 2 7/8 (70) |
|---|
| Length of electrical wire in ft (m) | 4 (1.5) |
|---|
| Control Panel | Programmable Intensive switch-off |
|---|
| Design | Variable height available as special order |
|---|
| Voltage in V | 120 |
|---|
| Diameter of vent connection in in.(mm) | 6 (150) |
|---|
| Construction type | Wall ventilation hood |
|---|
| Overall hood height for vented and external in in.(mm) | 27 3/8 (693)-39 7/8 (1,010) |
|---|
| Design | Customization possible on request |
|---|
| Color temperature in K | 3,500 |
|---|
| Design | RAL color possible as special order |
|---|
| Wireless stick Con@ctivity 2.0 for KM | XKS 3000 Z |
|---|
| Depth of hood canopy in in.(mm) | 19 3/4 (500) |
|---|
| Overall hood height for recirculation in in.(mm) | 32 3/8 (820)-45 (1,143) |
|---|
| Control Panel | Intensive setting |
|---|
| Fuse rating in A | 15 |
|---|
| Control Panel | Acoustic package |
|---|
| Blower | Dual-action blower |
|---|
| Safety | Safety shut-off |
|---|
| Control Panel | Backlit controls |
|---|
