Product Description

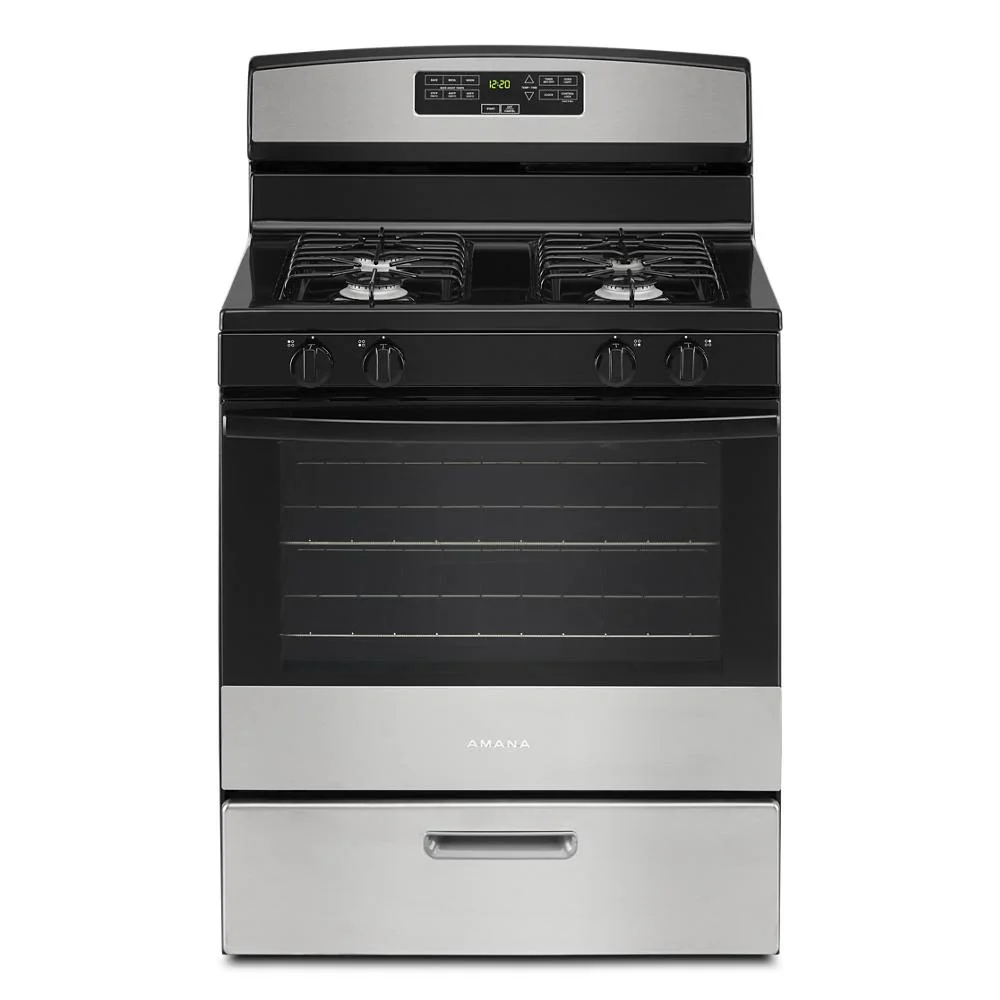

This 30-inch Amana® Gas Range with 5.1 Cu. Ft. Capacity features a Versatile Cooktop with multiple burner options to help you make more of your favorites at once. Get cooking quickly with Bake Assist Temps that offer convenient preset temperature settings. Easy Touch Electronic Controls Plus are extra large and easy to read.
Features
- Large Oven Capacity : 5.1 Cu Ft Oven Capacity gives you the space you need to make dinner and dessert at the same time.
- Versatile Cooktop : Our Versatile Cooktop features multiple burner options that provide up to 15,000 BTUs, helping you cook your favorites all at once.
- Bake Assist Temps : Bake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.
- Easy Touch Electronic Controls Plus : Quickly select bake or broil temperatures with these large and easy-to-read Easy Touch Electronic Controls Plus.
- Extra-Large Oven Window : Keep an eye on your meal through the Extra-Large Oven Window.
- Extra-Large Window
- Warm Hold : Warm Hold delivers low heat to the oven so dishes are ready to serve when you are.
- EasyAccess™ Broiler Door : The EasyAccess™ broiler door is easy to reach and can help broil large dinners like steak and roasted vegetables.
- SpillSaver™ Upswept Cooktop : The SpillSaver™ Upswept Cooktop comes with raised edges to make cleanup a cinch.
- Sealed Burners : Don't sweat the small spills. Sealed burners make cleanup easy by limiting spills from dripping beneath the cooktop.
Specifications
| Carton Depth | 28 inches |
|---|
| Natural Gas Convertible | Yes |
|---|
| Prop65 | Standard |
|---|
| Cooktop Configuration | All Burners |
|---|
| Carton Height | 48 inches |
|---|
| Hidden Bake Element | Yes |
|---|
| Left Front Element-Burner Type | Standard |
|---|
| Depth Closed Excluding Handles | 22.9 |
|---|
| Total Gas Btus - Cooktop | 54,500 |
|---|
| Automatic Convection Conversion Temperature Adjust | No |
|---|
| Right Rear Element-Burner Power | 5,000 BTU |
|---|
| Oven Cooking System | Thermal |
|---|
| Cutout Depth | 24 |
|---|
| Total Gas Btus - Ovens | 16,500 |
|---|
| Door Removable | Yes |
|---|
| Oven Interior Height | 18.375 |
|---|
| Electronic Display Type | LED |
|---|
| Left Front Element-Burner Power | 11,500 BTU |
|---|
| Interior Color | Grey |
|---|
| Oven Interior Width | 25 |
|---|
| Number Of Grates | 2 |
|---|
| Oven Selections | Audible Signal; Bake; Bake Assist Temps; Broil; Cancel/Off; Clock; Control Lock; Keep Warm/Warm Hold; Sabbath Mode; Timer |
|---|
| Griddle Included | N/A |
|---|
| Right Front Element-Burner Type | Standard |
|---|
| Range Drawer Type | Broiler Drawer |
|---|
| Handle Type | Reach Through Handle |
|---|
| Depth Closed Including Handles | 25.55 |
|---|
| Carton Width | 32 inches |
|---|
| Ignition Type | Electronic |
|---|
| Oven Cleaning Type | Manual Clean |
|---|
| Left Rear Element-Burner Type | Standard |
|---|
| Cutout Width | 30.125 |
|---|
| Oven Light Switch Location | Oven Control |
|---|
| Cooktop Surface Color | Black |
|---|
| Door Type | Glass |
|---|
| Number Of Rack Guides | 5 |
|---|
| Cooktop Control Type | Knobs |
|---|
| Broiler Location | Drawer |
|---|
| ADA Compliant | No |
|---|
| Cooktop Control Location | Front |
|---|
| Handle Color | Black |
|---|
| LP Convertible | Yes - Kit Included |
|---|
| Gross Weight | 136 pounds |
|---|
| Oven Control Location | Backguard |
|---|
| Right Front Element-Burner Power | 9,500 BTU |
|---|
| Right Rear Element-Burner Type | Simmer |
|---|
| Cutout Height | 36 |
|---|
| UL | Yes |
|---|
| Number Of Cooking Element-Burners | 4 |
|---|
| Cooktop Control Knob Type | Plastic |
|---|
| Range Type | Freestanding |
|---|
| Bake Element Power | 16,500 BTU |
|---|
| Auto Re-Ignition | No |
|---|
| Broiler Element Power | 16,500 BTU |
|---|
| Oven Rack Type | Standard |
|---|
| Cooktop Control Knob Color | Black |
|---|
| Fuel Type | Gas |
|---|
| Left Rear Element-Burner Power | 9,500 BTU |
|---|
| Net Weight | 122 pounds |
|---|
| Heating Element On Indicator Light | No |
|---|
| Number Of Oven Lights | 1 |
|---|
| Display Color | Green |
|---|
| Cooktop Element Style | Sealed Burners |
|---|
| Cooktop Surface Material | Porcelain Coated Steel |
|---|
| Oven Window Size | Extra Large |
|---|
| Hot Surface Indicator Light | No |
|---|
| Oven Interior Depth | 19 |
|---|
| Number Of Oven Racks | 2 |
|---|
| Oven Light Type | Incandescent |
|---|
| Oven Control Type | Electronic Touch |
|---|
| Grate Details | Dishwasher Safe; Flower Wire; Gloss Finish; Wire Grates |
|---|
| Power Outage Compatible | Yes |
|---|
| Power Cord Included | Yes |
|---|
| Handle Material | Plastic |
|---|
| Depth With Door Open 90 Degree | 45.78 |
|---|
