Product Description

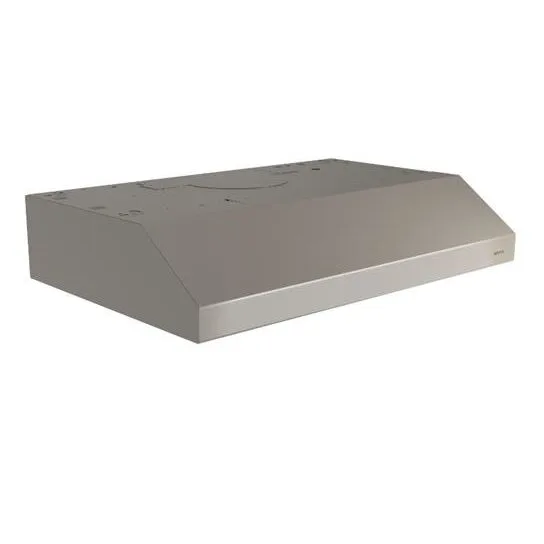

Glacier is an ENERGY STAR-qualified 30 in. under-cabinet convertible, range hood that features a clean, contemporary shape to complement nearly any kitchen design. Equipped with the exclusive Broan Captur™ system, which combines advanced blower design with new filter technology, this 300 MAX Blower CFM-rated hood provides 97.4% removal of smoke and odor
Features
ENERGY STAR qualified with either top or rear ducting applications; non-ducted operation uses charcoal filters (sold separately Filter Model HPF30)
"The Captur™ system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Two-speed blower control exhausts at 300 CFM
Smooth-flow blower wheel design and high flow filters ensure quiet, 1.5 Sones operation at normal speed
Bright, single intensity LED modules – supported by a 3-year warranty – illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K. ENERGY STAR® certification saves energy expense
Hidden on/off rocker switches control blower speeds and light levels
Dual dishwasher-safe, open-mesh filters provide efficient grease removal (model HPFA130 [service part # S99010430-002])
EZ1 brackets make it easy for single-person installation in less than half the time of traditional methods
ADA compliant, remote operation is possible using a standard UL approved wall switch. See Additional Information above
Specifications
| Accommodates Ceiling Height | N/A |
|---|
| ADA Compliance | See Additional Information above |
|---|
| Boost Mode | No |
|---|
| Cabinet Width (inches) | 30" |
|---|
| CFM Airflow Max | 250 |
|---|
| CFM Airflow Normal | 150 |
|---|
| Control Feature Filter Reminder | No |
|---|
| Damper Included | Yes |
|---|
| Delay Shut Off | No |
|---|
| Digital Clock | No |
|---|
| Duct Connector Size | 3-1/4 x 10 or 7" RD |
|---|
| ENERGY STAR® certified product | Yes |
|---|
| Filter Included | Yes |
|---|
| Filter Type | Aluminum Mesh |
|---|
| Flue Accommodates ceilings up to xx ft | N/A |
|---|
| Heat Sentry - Temperature Sensor | No |
|---|
| Light Bulb Quantity | 2 |
|---|
| Light Bulbs Included | Yes |
|---|
| Lighting Function | One-level |
|---|
| Lighting Type | LED |
|---|
| Material | Painted |
|---|
| Minimum Height Above Cook Top | 18" |
|---|
| Mounting Type | Under Cabinet |
|---|
| Nightlight Setting | No |
|---|
| Non-Ducted Filter Included | No |
|---|
| Non-Ducted Recirculation Capable | Convertible built-in |
|---|
| Non-Ducted Re-circulation Capable | Convertible |
|---|
| Product Depth (inches) | 19-5/8" |
|---|
| Product Height (inches) | 6" |
|---|
| Product Width (inches) | 29-7/8" |
|---|
| Rated Amps | 0.65 |
|---|
| Rated Voltage | 120 |
|---|
| Remote Operation Capable | No |
|---|
| Sones Max | 5 |
|---|
| Sones Normal | 1.5 |
|---|
| Speed Levels | 2 |
|---|
| Switch Style | Rocker |
|---|
| UL Listed | Yes |
|---|
