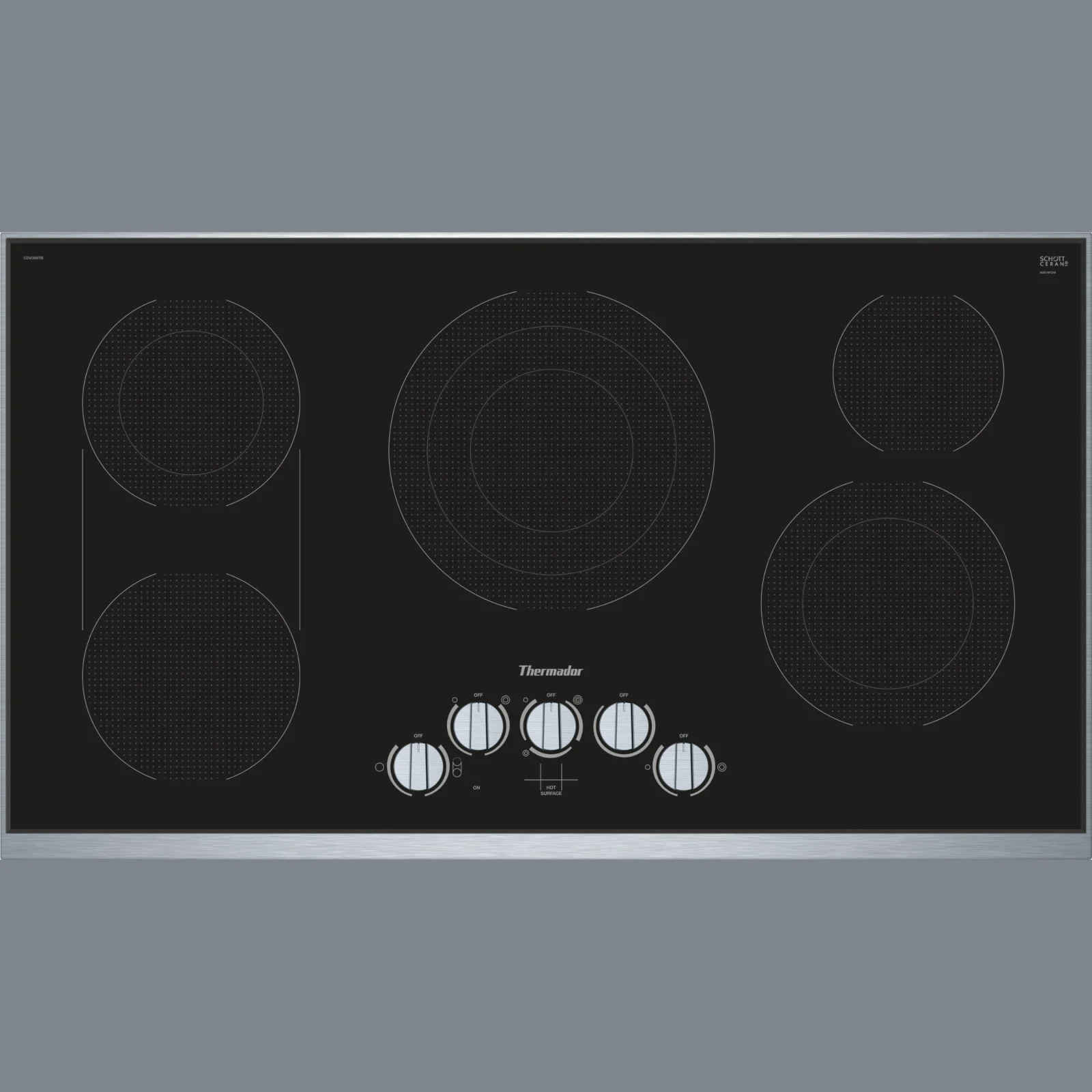

Product Description
Performance Five elements and ten cooking zones provides the space and power for most cookware Dual zone bridge element connects front and rear elements to accomodates oblong cookware and multiple diameter sizes Large triple element offers the capability to use multiple pan sizes Variable 9-stage power settings Residual heat indicator shows you what elements are still hot Design Heavy-duty stainless steel metal knobs Full stainless steel frame
Features
- Masterpiece® Series electric cooktops offer excellent performance, precise control and a sleek elegant profile
- Heavy-duty Stainless Steel Metal Knobs : Precisely control the temperature with these stylish knobs.
- Stainless Steel Frame : A sleek frame surrounds the cooktop surface.
- 9-Stage Power Setting : This variable setting offers a range of power from high heat to simmer.
- Dual Zone Bridge Element : is an exclusive feature that connects two round cooking zones, enabling use of large oval or rectangular cookware for even heating.
- Triple Element : Combine three cooking zones into one to adapt to the size of your cookware.
Specifications
| Number of electric cooking zones | 5 |
|---|
| Plug type | No Plug |
|---|
| Dimension of 3rd heating element (mm) | 180 ; 120 |
|---|
| Volts (V) | 240/208 |
|---|
| Automatic programmes | No |
|---|
| Type of frame | Convenience frame |
|---|
| Power of the heating element | 1.7 |
|---|
| Dimension of 5th heating element (mm) | 140 |
|---|
| Location of 6th heating element | center right |
|---|
| Internal article number | CEM366TB |
|---|
| Height of the packed product (mm) | 210 |
|---|
| Required cutout size (HxWxD) | 4 x 34 3/4 x 19 7/8 |
|---|
| Depth for installation (mm) | 100 |
|---|
| Construction type | Built-in |
|---|
| Main on/off switch | No |
|---|
| Maximum height for installation (mm) | 508 |
|---|
| Power cord length (cm) | 96.0 |
|---|
| Sealed Burners | No |
|---|
| SKU | CEM366TB |
|---|
| Dimension of 3rd heating element | 5" ; 7" |
|---|
| Minimum distance from counter front | 2 1/4 |
|---|
| Power of 3rd heating element (kW) | 0.7 ; 1.7 |
|---|
| Included accessories | 1 x glass scraper |
|---|
| Additional Image 1 | https |
|---|
| Location of control panel | Front |
|---|
| Type of heating element | Radiant heating |
|---|
| Current (A) | 50/40 |
|---|
| Location of 3rd heating element | back left |
|---|
| Type of lid | Without |
|---|
| Color of frame | Stainless Steel |
|---|
| Ignition system | No |
|---|
| Width of the packed product (mm) | 610 |
|---|
| Number of gas burners | 0 |
|---|
| Number of electric warming zones | 0 |
|---|
| Timer | No |
|---|
| Maximum width for installation (mm) | 886 |
|---|
| Number of radiant elements | 5 |
|---|
| Dimension of the heating element | 180 |
|---|
| Total number of cooktop burners | 5 |
|---|
| Type of control | Fixed;Front;Metal Knobs;Push-to-turn |
|---|
| Net weight | 34.000 |
|---|
| Number of induction elements | 0 |
|---|
| Type of 5th heating element | Radiant heating |
|---|
| Basic surface material | Ceramic |
|---|
| Power on indicator | Yes |
|---|
| Number of halogen elements | 0 |
|---|
| Type of control | Mechanical |
|---|
| Location of the heating element | front left |
|---|
| Minimum width for installation (mm) | 883 |
|---|
| Plate on indicator | 1 |
|---|
| UPC code | 825225924869 |
|---|
| Location of 2nd heating element | center left |
|---|
| EAN code | 825225924869 |
|---|
| Overall appliance dimensions (HxWxD) | 7/16"+4 x 37" x 21 1/4" |
|---|
| Energy input | Electric |
|---|
| Depth of the packed product (mm) | 1100 |
|---|
| Location of 4th heating element | middle back |
|---|
| Product group | Hob |
|---|
| Type of regulation | Stepless energy regulated |
|---|
| Dimension of 5th heating element | 6" |
|---|
| Product packaging dimensions (HxWxD) | 8 1/4'' x 43 5/16'' x 24" |
|---|
| dishwasher safe pan support | No |
|---|
| Gross weight (kg) | 19.7 |
|---|
| Net weight (kg) | 15.5 |
|---|
| Product name / series name | Cooking zone ceramic |
|---|
| Number of electric elements | 0 |
|---|
| Dimension of 1st heating element | 7" |
|---|
| Minimum height for installation (mm) | 505 |
|---|
| Location of 5th heating element | back right |
|---|
| Power of 5th heating element (kW) | 1.2 |
|---|
| Frequency (Hz) | 60 |
|---|
| Gross weight | 43.000 |
|---|
| Brand | Thermador |
|---|
| Minimum distance from rear wall | 2 |
|---|
| Type of 3rd heating element | Radiant heating |
|---|
