Product Description

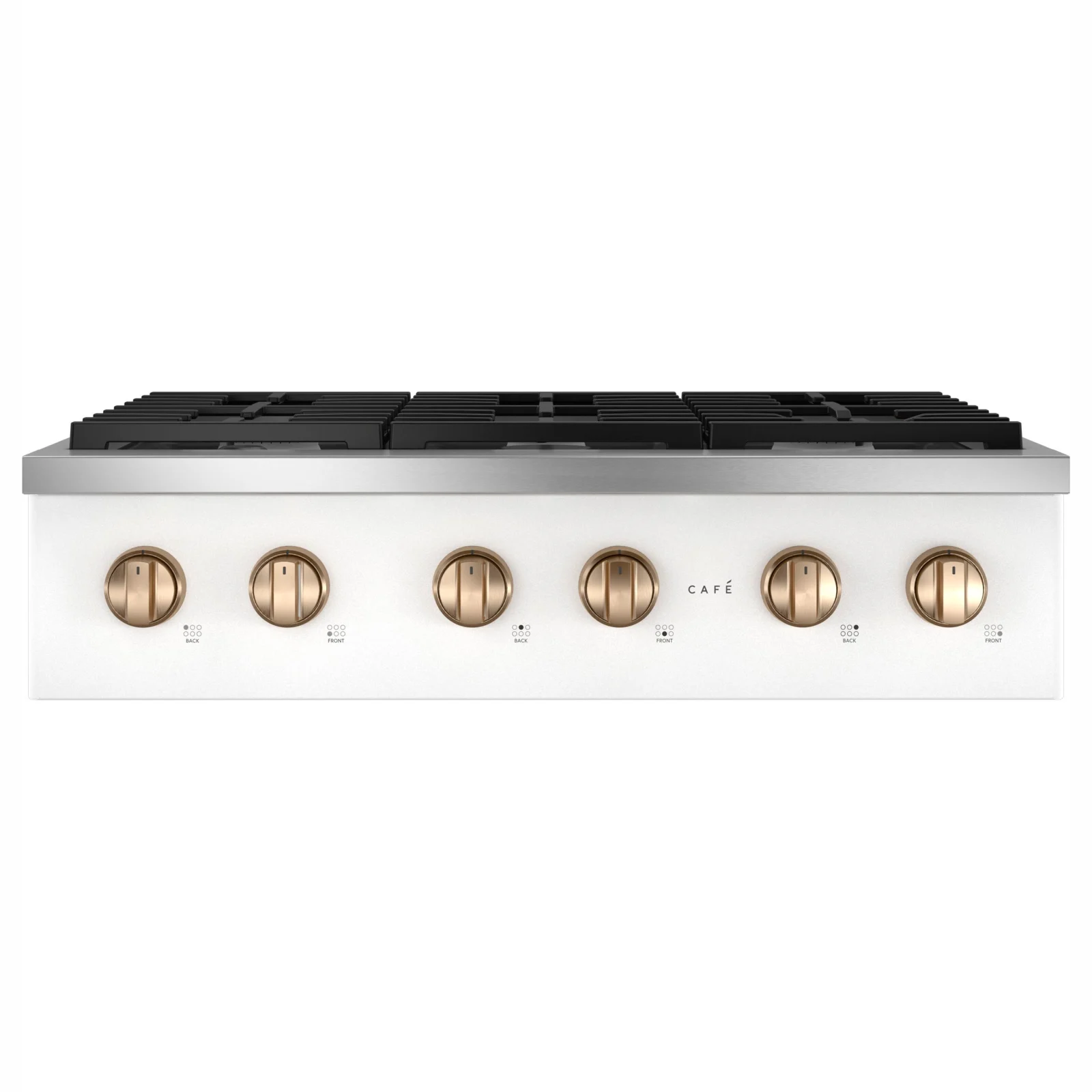

Café™ 36" Commercial-Style Gas Rangetop with 6 Burners (Natural Gas)
Features
- Versatile Cooktop : The versatile cooktop on this commercial style range features an entire arsenal of burners that give you the right amount of heat and control to perfectly cook anything from delicate sauces to expertly seared meats.
- Color-Matched Manifold : Get a coordinated look with a manifold that matches the rangetop's finish
- Superior Heat Distribution : The industry-exclusive Inspiral burner swirls the cooktop flame under cookware to more evenly spread heat from the center to the edges
- Multi-Ring Burner : A versatile burner offers different-sized flame rings on a single burner element, so it's like having multiple burners in one
- Two Griddle Burners : Cook more at once with two 12,000-BTU powerful burners that can be used together or separately with an optional griddle grill accessory
- Two High-Heat Burners : Boil water quickly with two 18,000-BTU Power Boil burners that give you more cooking power
- Inspiral™ Wok Grate : Perfect for specialty cookware like woks, the Inspiral grate is contoured to fit their shape, concentrating the Inspiral burner's heat for better cooking results.
- Reversible Stove Top Grill/Griddle Accessory : Optional, reversible stove top grill/griddle is available for purchase at an additional cost, the part number is UXPRRGG.
- Sealed Burner Cooktop : Keep your kitchen sparkling, even when there's a spill, with a sealed burner cooktop design that contains messes for easy cleanup, every time.
- Continuous Gas Stove Grates : Continuous, cast-iron gas stove grates allow you to easily move heavy cookware across the cooktop surface for a more streamlined cooking experience
- Electric Ignition Stove with Automatic Reignition : Confidently cook over a steady gas flame with this electric ignition stove, its automatic reignition feature instantly revives any accidentally extinguished flames
Specifications
| Overall Height | 8.5 in |
|---|
| Burner - Right Rear | 18,000 BTU |
|---|
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
|---|
| Cooktop Type | Continuous Grates |
|---|
| Burner - Left Front | 21,000 BTU Multi-ring Burner |
|---|
| Approximate Shipping Weight | 163 lb |
|---|
| 140 Deg. Simmer Burner | All Burners - Adjustable |
|---|
| Conversion Kit | Included - Nat. Gas to LP |
|---|
| Labor Warranty | Limited 1-year entire appliance |
|---|
| App Filter - Fuel Type | Gas |
|---|
| Burner BTU Ratings (000's/BTU) - LP Gas | (1) 18.0; (2) 15.0; (2) 12.0; (1) 9.1 |
|---|
| Extra Low Simmer | All Burners - Adjustable |
|---|
| Overall Depth | 27.5 in |
|---|
| App Filter - Control Type | Rotary knobs |
|---|
| Griddle Cover | WB34X39889 |
|---|
| Burner - Center | 12,000 BTU Front / 12,000 BTU Rear |
|---|
| App Filter - Reversible Grates | Yes |
|---|
| Dishwasher Safe Knobs | Yes |
|---|
| Net Weight | 135 lb |
|---|
| Control Knobs | Brushed Bronze, Dishwasher Safe, Professional-Style |
|---|
| Optional Backguard | 12" stainless steel backsplash (UX12B36PSS), 30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB36PSS) |
|---|
| Cooktop Surface | Gray, Porcelain-Enamel |
|---|
| Factory-installed island backguard | Yes |
|---|
| Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 21.0; (2) 18.0; (2) 12.0; (1) 10.0 |
|---|
| Cooktop Burner Grate Features | Continuous Grates, Dishwasher Safe, Matte Black, Porcelainized Cast Iron |
|---|
| Parts Warranty | Limited 1-year entire appliance |
|---|
| Control Type | Manual, Simmer (1-9) Hi |
|---|
| Configuration | 6 Burners |
|---|
| Cabinet Width | 36 in |
|---|
| Reversible Griddle/Grill Accessory | UXPRRGG |
|---|
| App Filter - Cabinet Width | Cooking 36 in. |
|---|
| Valves (Degree of Turn) | 270 |
|---|
| App Filter - Cooktop Type | Continuous Grates |
|---|
| Burner - Left Rear | 18,000 BTU |
|---|
| Automatic Re-Ignition | Yes |
|---|
| Color Appearance | Matte White |
|---|
| Overall Width | 35.875 in |
|---|
| Product Type | Rangetop |
|---|
| Optional Kits | CXPR6HKPTBT Brushed Black, CXPR6HKPTBZ Brushed Bronze, CXPR6HKPTCG Brushed Brass, CXPR6HKPTCU Brushed Copper, CXPR6HKPTFB Flat Black, CXPR6HKPTSS Brushed Stainless |
|---|
| Warranty Notes | See written warranty for full details |
|---|
| Cooktop Burner Grate Material | Heavy Cast |
|---|
| Control Location | Upfront |
|---|
| Fuel Type | Natural Gas (factory set) |
|---|
| Ignition System | Electronic w/Auto Reignition |
|---|
| Design Style | Professional |
|---|
| Burner - Right Front | 10,000 BTU |
|---|
| High Altitude Kit | Natural Gas |
|---|
