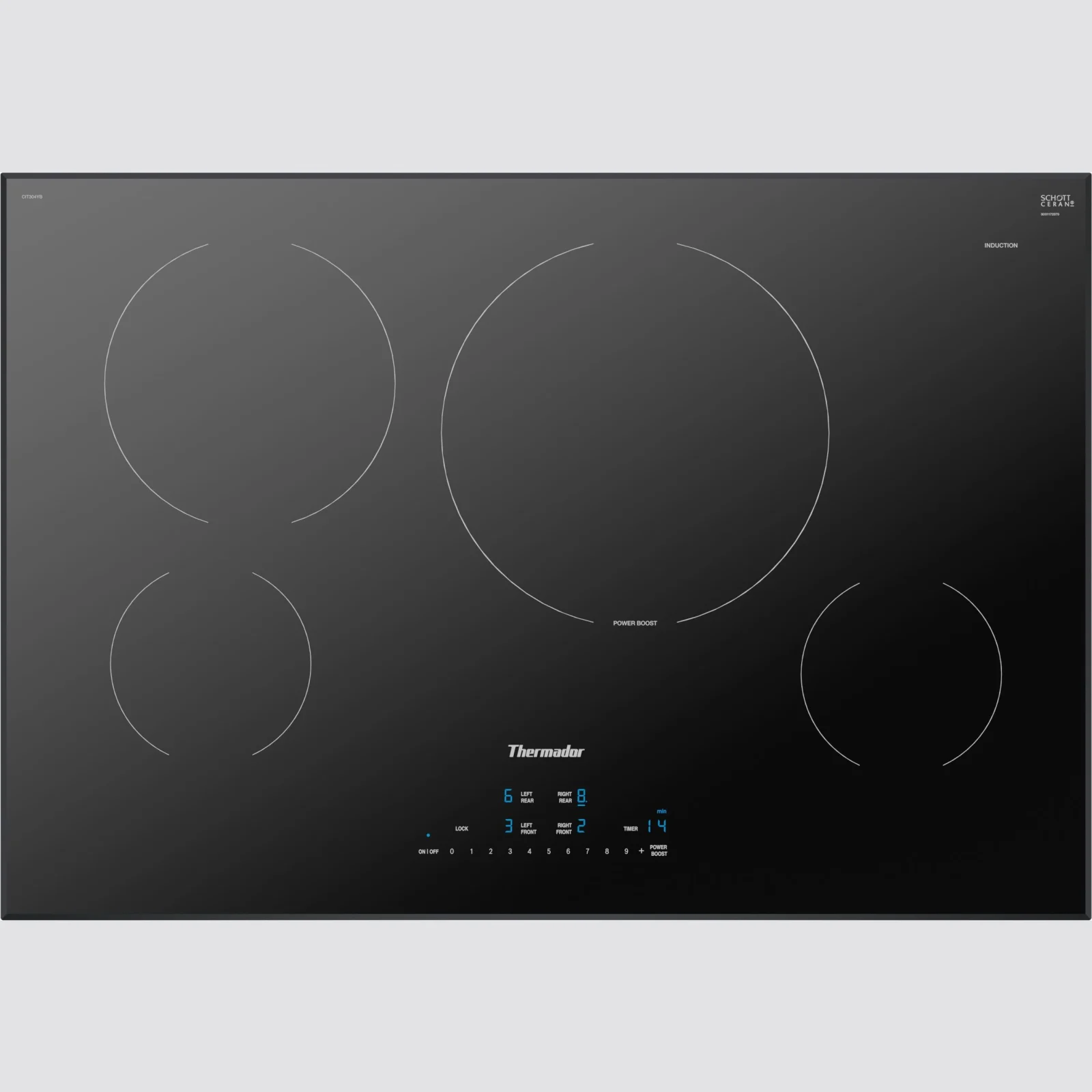

Product Description
Performance 4 induction cooking elements 17 power levels Powerful 3,700 W, 11" element for larger pots and pans PowerBoost® setting Automatic pan recognition 2 stage residual heat indicators Illuminated touch controls Child safety lock Design Frameless design
Features
- Thermador's innovative induction technology saves time in cooking and easier to care for and clean than traditional cooking methods
- 17 Power Levels : provide precise cooking with an illuminated touch control panel that is easy to clean.
- PowerBoost® : increases element power by up to 50%, saving time to heat up pots or boil water quickly.
- Timers for All Four Elements : each burner has its own cook timer, making it easier to coordinate the cooking of multiple dishes.
- 11" Heating Zone : Accommodate large pots and pans with the ultra-spacious 11" heating zone and powerful at 3,700 W.
- Superior Responsiveness : Induction technology allows instantaneous temperature changes as the power level is adjusted.
Specifications
| Plug type | No Plug |
|---|
| Number of induction elements | 4 |
|---|
| Volts (V) | 208-240 |
|---|
| Location of 3rd heating element | back left |
|---|
| Internal article number | CIT304YB |
|---|
| Power Cord Length | 37'' |
|---|
| Main on/off switch | Yes |
|---|
| Number of halogen elements | 0 |
|---|
| Minimum distance from counter front | 2 1/4'' |
|---|
| Highlights | 17 power levels, powerBoost |
|---|
| Location of 2nd heating element | center left |
|---|
| Number of radiant elements | 0 |
|---|
| Additional Image 4 | https |
|---|
| Location of control panel | Front |
|---|
| Type of 5th heating element | Induction heating |
|---|
| Power of 5th heating element (kW) | 2.6 |
|---|
| Gross weight | 51.000 |
|---|
| Power of the heating element | 1.4 |
|---|
| Type of control | Front;TouchControl Basic Timer |
|---|
| Net weight | 39.000 |
|---|
| EAN code | 825225961468 |
|---|
| Type of regulation | Stepless energy regulated |
|---|
| Additional Image 1 | https |
|---|
| Maximum width for installation (mm) | 734 |
|---|
| Gross weight (kg) | 23.0 |
|---|
| Number of electric cooking zones | 4 |
|---|
| Power of 5th heating element (kW in boost) | [3.6] |
|---|
| Burners with booster | All |
|---|
| Overall appliance dimensions (HxWxD) | 3/8''+3 7/8'' x 31'' x 21 1/4'' |
|---|
| Dimension of 3rd heating element | 9'' |
|---|
| Minimum distance from rear wall | 2'' |
|---|
| Depth of the packed product (mm) | 925 |
|---|
| Depth for installation (mm) | 98 |
|---|
| Power on indicator | No |
|---|
| Additional Image 2 | https |
|---|
| dishwasher safe pan support | No |
|---|
| Dimension of 5th heating element | 11'' |
|---|
| Energy input | Electric |
|---|
| Required cutout size (HxWxD) | 3 7/8'' x 28 7/8'' x 20'' |
|---|
| Safety device | Auto Safety Shutoff;Childproof Lock;Panel Lock;pan recognition;Power Management Function |
|---|
| Location of 5th heating element | back right |
|---|
| Location of 6th heating element | center right |
|---|
| Product packaging dimensions (HxWxD) | 7 1/16'' x 36 5/8'' x 26 5/8'' |
|---|
| Power of 1st heating element (kW in boost) | [2.2] |
|---|
| Power cord length (cm) | 96.0 |
|---|
| Sealed Burners | No |
|---|
| Location of 4th heating element | middle back |
|---|
| Brand | Thermador |
|---|
| Location of the heating element | front left |
|---|
| Type of control | Electronic |
|---|
| Net weight (kg) | 17.7 |
|---|
| Minimum width for installation (mm) | 731 |
|---|
| Dimension of 3rd heating element (mm) | 210 |
|---|
| Dimension of 1st heating element | 6'' |
|---|
| Type of heating element | Induction heating |
|---|
| Dimension of 5th heating element (mm) | 280 |
|---|
| Maximum height for installation (mm) | 508 |
|---|
| Product group | Hob |
|---|
| Basic surface material | Ceramic |
|---|
| Number of electric warming zones | 0 |
|---|
| Automatic programmes | No |
|---|
| Current (A) | 30 |
|---|
| Dimension of the heating element | 145 |
|---|
| Additional Image 5 | https |
|---|
| UPC code | 825225961468 |
|---|
| Minimum height for installation (mm) | 505 |
|---|
| SKU | CIT304YB |
|---|
| Type of frame | 4 Facettes |
|---|
| Type of 3rd heating element | Induction heating |
|---|
| Ignition system | No |
|---|
| Total number of cooktop burners | 4 |
|---|
| Timer | Yes |
|---|
| Height of the packed product (mm) | 172 |
|---|
| Frequency (Hz) | 60 |
|---|
| Power of 3rd heating element (kW) | 2.2 |
|---|
| Number of gas burners | 0 |
|---|
| Number of electric elements | 0 |
|---|
| Power of 3rd heating element (kW in boost) | [3.6] |
|---|
| Additional Image 3 | https |
|---|
| Width of the packed product (mm) | 608 |
|---|
| Product name / series name | Cooking zone ceramic |
|---|
| Type of lid | Without |
|---|
| Construction type | Built-in |
|---|
| Plate on indicator | 0 |
|---|
