Product Description

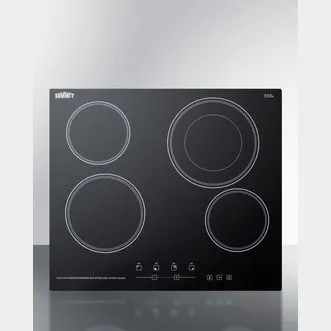

The CR4B23T5B is a 24" wide 230V radiant cooktop designed to fit popular 22" W x 19 1/2" D counter cutouts. The surface is made from smooth Schott ceramic glass in a jet black finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional.
Features
- Schott glass surface : Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish
- Extra large 2200W burner : Burner located on the rear right corner has an 8" diameter and powerful 2200W cooking power to handle large pots and help boil water with more speed
- Large 1800W burner : Burner located on the front left corner is 7" in diameter to handle larger cooking vessels
- 2 Standard 1200W burners : Front right and rear left burners are 5.5" in diameter to meet most cooking needs
- Dual cooking zone : Rear right burner includes an inner 5" burner, allowing you to save energy when heating smaller cookware
- Digital touch controls : Easy operation with a digital control panel and digital display
- 9 power levels : Select and adjust your heating levels at the touch of a button
- Timer : Allows you to program either burner to heat at a specified level for up to 99 minutes
- Residual heat indicator lights : Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch
- Designed for built-in installation : Fits counter cutout sizes that are 22" wide by 19.5" deep
- ADA compliant design : Upfront controls meet ADA guidelines for easier accessibilty
- Child lock : Safety feature lets you lock the cooktop to prevent unsupervised heating
- Safety cut-off function : If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
- Automatic shutoff : If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
- 230V operation : Requires professional hardwired installation to 230V power supply
Specifications
| Element #2 Wattage | 2200.0 |
|---|
| Element #4 Wattage | 1800.0 |
|---|
| Canadian Electrical Safety | ETL-C |
|---|
| Element #1 Size | 5.5" (14 cm) |
|---|
| Cabinet | Black |
|---|
| Number of Elements | 4 |
|---|
| Element #3 Size | 5.5" (14 cm) |
|---|
| Depth | 20.5" (52 cm) |
|---|
| US Electrical Safety | ETL |
|---|
| Width | 23.25" (59 cm) |
|---|
| Height of Cabinet | 2.0" (5 cm) |
|---|
| Element #4 Size | 7.0" (18 cm) |
|---|
| controls | Digital |
|---|
| Amps | 30.0 |
|---|
| Weight | 20.0 lbs. (9 kg) |
|---|
| Surface | Glass |
|---|
| Countertop Cutout Height | 3.2" (8 cm) |
|---|
| Element #2 Size | 8.1" (21 cm) |
|---|
| Voltage/Frequency | 230 V AC/60 Hz |
|---|
| Heating Type | Radiant |
|---|
| Element #3 Wattage | 1200.0 |
|---|
| Countertop Cutout Width | 22.0" (56 cm) |
|---|
| Shipping Weight | 22.0 lbs. (10 kg) |
|---|
| Element #1 Wattage | 1200.0 |
|---|
| Parts & Labor Warranty | 1 Year |
|---|
| Countertop Cutout Depth | 19.5" (50 cm) |
|---|
| Element Type | Glasstop |
|---|
