Product Description

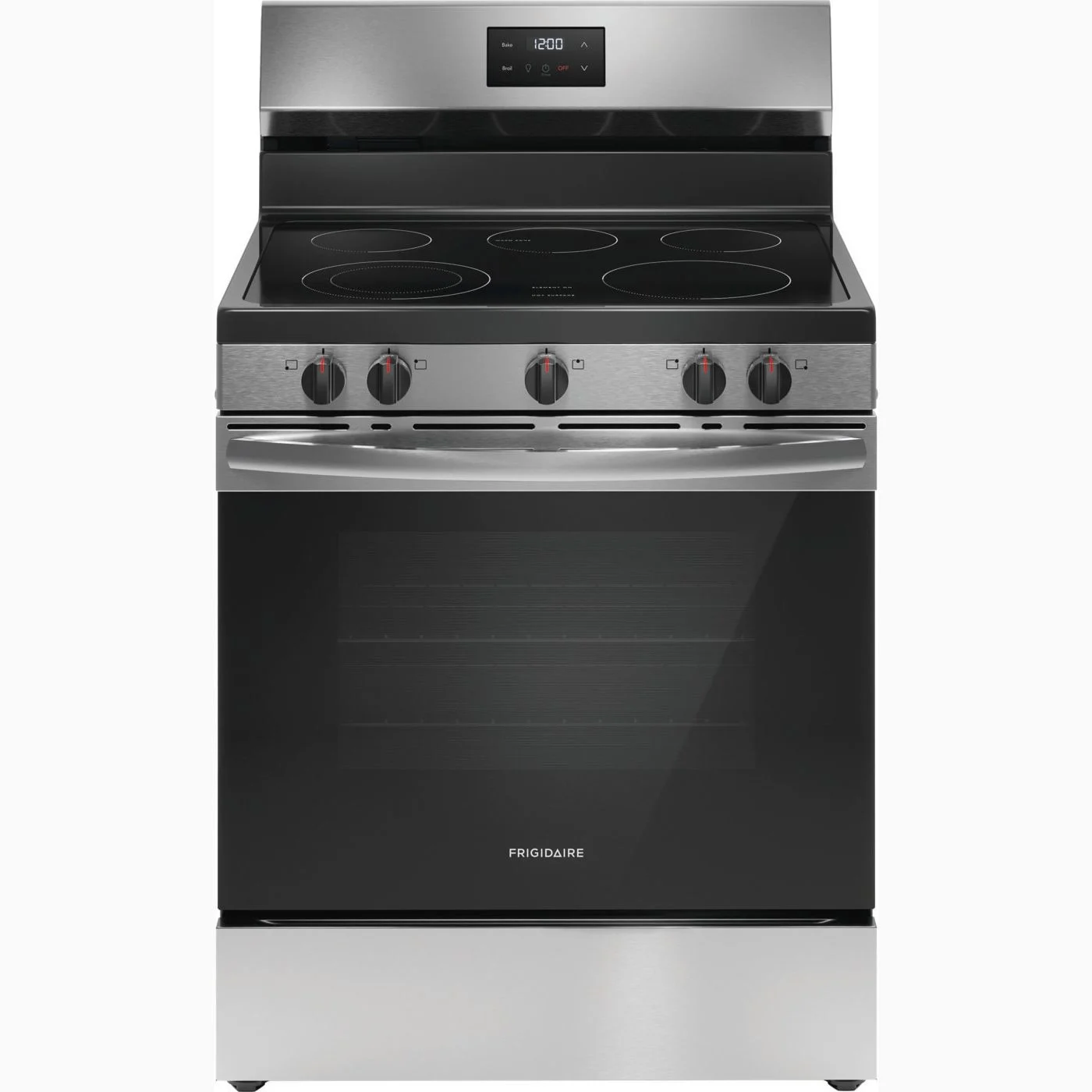

The Frigidaire 30" Electric Range allows you to get meals on the table faster with our 3,000W Quick Boil Element. Enjoy more cooktop flexibility with five cooktop elements designed to handle all of your cooking needs, including the 2-in-1 Dual Expandable Element. Plus, enjoy our redesigned Extra Wide Store-More™ Storage Drawer, now with more space to store your unused oven racks and cookware.
Features
- Get meals to the table faster with the powerful 3,000W Quick Boil element.
- Experience ultimate cooking flexibility with a cooktop that has five elements designed to handle all of your cooking needs.
- Designed to deliver even baking results, every time.
- Get two elements in one with the Dual Expandable element - a 6" inner ring for smaller pots and pans and a 9" outer ring for larger cookware.
- Large oven capacity allows you to cook more at once.
- Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
- Keep food warm until everything - and everyone - is ready.
Specifications
| Broil | Yes |
|---|
| Off | Yes |
|---|
| Preheat | Yes |
|---|
| Oven Interior Depth | 19 7/8" |
|---|
| Left Front Element Burner (Large) | 3000 Watts |
|---|
| RoHS | Yes |
|---|
| Warm Zone | Yes |
|---|
| Program Fahrenheit or Celsius | Yes |
|---|
| Prop 65 Label | Yes |
|---|
| Voltage Rating | 240 V |
|---|
| Oven Interior Width | 25 3/16" |
|---|
| Left Front Element Burner (Small) | 1400 Watts |
|---|
| Warranty - Parts | 1 Year |
|---|
| Oven Light Type | Halogen |
|---|
| Right Rear Element Burner | 1200 Watts |
|---|
| Left Front Element Burner Size (Small) | 6" |
|---|
| Display Interface Color | White |
|---|
| Depth With Handle | 28 1/2" |
|---|
| Drawer Handle Style | Integrated |
|---|
| Oven Light Quantity | 1 |
|---|
| Rack Type 1 | Flat |
|---|
| Frigidaire Fit Promise | Yes |
|---|
| UL Listed | Yes |
|---|
| Up / Down Arrow | Yes |
|---|
| Bake | Yes |
|---|
| Connected Load @ 240V | 12 kW |
|---|
| Rack Position Type | Embossed |
|---|
| Product Weight | 160 lbs |
|---|
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
|---|
| Oven Light Watts | 40 Watts |
|---|
| Number of Rack Positions | 6 |
|---|
| Oven Capacity | 5.3 Cu. Ft. |
|---|
| Right Front Element Burner Size | 9" |
|---|
| Broil Element Pass | 4 |
|---|
| Center Rear Element Burner | 100 Watts |
|---|
| Oven Interior Color | Midnight Black |
|---|
| Rack Type 1 Quantity | 2 |
|---|
| Display Type | LED |
|---|
| Right Rear Element Burner Size | 6" |
|---|
| Bake Element Type | Raised |
|---|
| Keep Warm Burner Location | Center Rear |
|---|
| Broil Element | 3000 Watts |
|---|
| Hot-Surface Indicator Light | Yes |
|---|
| Depth With Door 90° Open | 47 5/16" |
|---|
| Oven Light | Yes |
|---|
| Left Rear Element Burner | 1200 Watts |
|---|
| Bake Element Pass | 4 |
|---|
| Adjustable Leveling Legs | Yes |
|---|
| Bake Element | 2600 Watts |
|---|
| Minimum Height | 46 3/4" |
|---|
| Left Rear Element Burner Size | 6" |
|---|
| Control Location | Rear |
|---|
| Warranty - Labor | 1 Year |
|---|
| Cooking Surface Type | Smooth |
|---|
| Right Front Element Burner | 3000 Watts |
|---|
| Minimum Circuit Required | 40 Amps |
|---|
| Kitchen Timer | Yes |
|---|
| Left Front Element Burner Size (Large) | 9" |
|---|
| Drawer Type | Storage |
|---|
| Oven Interior Height | 18 1/8" |
|---|
| Element On Indicator Light | Yes |
|---|
