Product Description
Innovation Noise Control Deluxe™ reduces noise while fan is in use Cooktop Hood Sync allows hood control on Freedom® cooktop touchscreen Cooktop Hood Sync enables hood activation once Freedom® cooktop is on Remotely monitor, control, and start through the Home Connect app Flexibility to program custom settings the through Home Connect app Manage Thermador Connected Experience kitchen suite with one network Access tips and tricks on Home Connect app to master every aspect Opt to receive mobile notifications as a reminder to clean filters Performance Efficient perimeter grease-capturing filters 600 CFM blower to match in performance with Masterpiece® cooktops Select the precise fan speed needed with four different settings Automatic mode detects temperatures to adjust fan speed automatically 10-min delay shut off ensure lingering odor do not interrupt a course Delay shut off time can extend or reduce through Home Connect app Check filter reminder light illuminates after 40 hours of operation Convert to recirculation for hard to duct installs, kit sold separate Vertical ducting direction possible 8" round duct discharge Design Sleek, smooth touch control make cleaning easy with a damp cloth Beautiful illumination with white multiple level LED lighting 0-100% light slider in Home Connect app allows perfect level of light Dishwasher-safe mesh filters Chimney extension kit for 9'-12' tall ceilings sold separate
Features

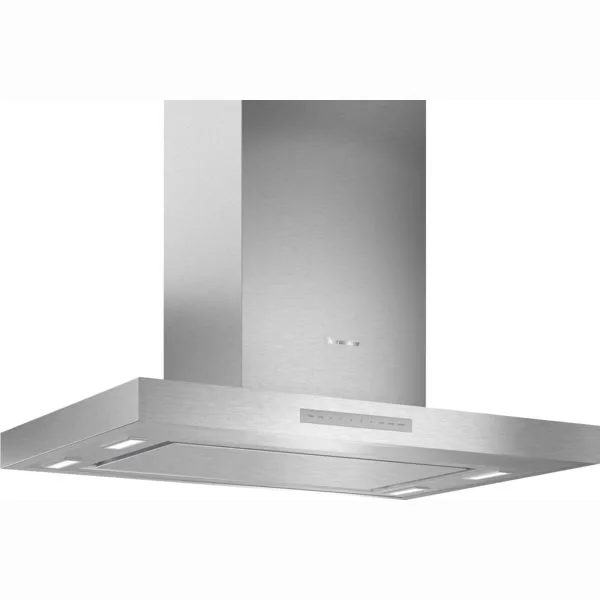

- Masterpiece® Low-Profile Island Hoods create an elegant focal point to complete your thoughtfully designed kitchen
- Wi-Fi Enabled : allows for remote monitoring and control of lights and fan speed, notification to clean the grease filter via Home Connect app, works with smart home devices and services like Amazon Alexa.
- Noise Control Deluxe™ : notably reduce noise while hood is in use—so you can keep your focus on entertaining. Noise Control Deluxe™ utilizes perimeter filters and insulation to reduce noise.
- Delay Shut Off & Automatic Mode : features an Automatic Mode, that adjusts the fan speed according to your cooking style, as well as Delay Shut Off, which runs the hood 10 minutes after you are done cooking to remove any lingering odors.
- LED Lighting : highlights your meal from first course to last with multi-level vivid LED Lighting.
- Sleek Electronic Touch Control Panel : convenient control that is easy-to-use and easy-to-clean.
Specifications
| Diameter of air duct top | 6 |
|---|
| Brand | Thermador |
|---|
| Type of control | Illuminated Buttons;Touch Control |
|---|
| Typology | Island/Ceilling |
|---|
| Height of the chimney | 27 1/4" - 33 3/4"/27 1/4" - 39 1/4" |
|---|
| Type of lamps used | Low consumption |
|---|
| Type of control | Electronic |
|---|
| Depth of the packed product (mm) | 994 |
|---|
| Current (A) | 15 |
|---|
| Additional Image 2 | https |
|---|
| EAN code | 825225935841 |
|---|
| Odour filter | No |
|---|
| Installation type | Island |
|---|
| Net weight (kg) | 41.6 |
|---|
| Volts (V) | 120 |
|---|
| Remote control | Yes |
|---|
| Material chimney | Stainless steel |
|---|
| Gross weight (kg) | 50.0 |
|---|
| Light Control Type | Continuous |
|---|
| Motor location | Integrated motor in hood chimney |
|---|
| No-return airflow flap | Yes |
|---|
| Clean filter reminders | Yes |
|---|
| Width of the packed product (mm) | 520 |
|---|
| Construction type | Built-in |
|---|
| Number of lights | 4 |
|---|
| Height of the packed product (mm) | 750 |
|---|
| Total luminance (lux) | 150 |
|---|
| Power Cord Length | 0" |
|---|
| Product group | Hood |
|---|
| Gross weight | 110.000 |
|---|
| Grease filter type | Multilayer cassette |
|---|
| Color body | Stainless Steel |
|---|
| Total output power of the motors | 468 |
|---|
| Watts (W) | 468 |
|---|
| Type of automatic control devices | Control via cooker/hotplate |
|---|
| Additional Image 3 | https |
|---|
| Height of product, without chimney (mm) | 70 |
|---|
| Net weight | 92.000 |
|---|
| Type of manual control devices | touch control |
|---|
| Number of speed settings | 4-stage |
|---|
| Grease filter material | Washable stainless steel |
|---|
| Internal article number | HMIB36WS |
|---|
| Air exhaust | Yes |
|---|
| Required distance above cooktop/ranges | 30''/30'' |
|---|
| SKU | HMIB36WS |
|---|
| Power cord length (cm) | 0.0 |
|---|
| UPC code | 825225935841 |
|---|
| Design | Island chimney hood |
|---|
| Number of motors | 1 |
|---|
| Overall appliance dimensions (HxWxD) | 30" - 42" x 36" x 26 15/16" |
|---|
| Frequency (Hz) | 60 |
|---|
| Additional Image 1 | https |
|---|
| Diameter of air duct (mm) | 150 |
|---|
| Optional accessories | CHFHMCD, CHXTHMIB, RECHMIB, REMCPW |
|---|
| Plug type | Fixed Connection, No Plug |
|---|
| Product packaging dimensions (HxWxD) | 29 1/2" x 39 1/8" x 20 1/2" |
|---|
