Product Description

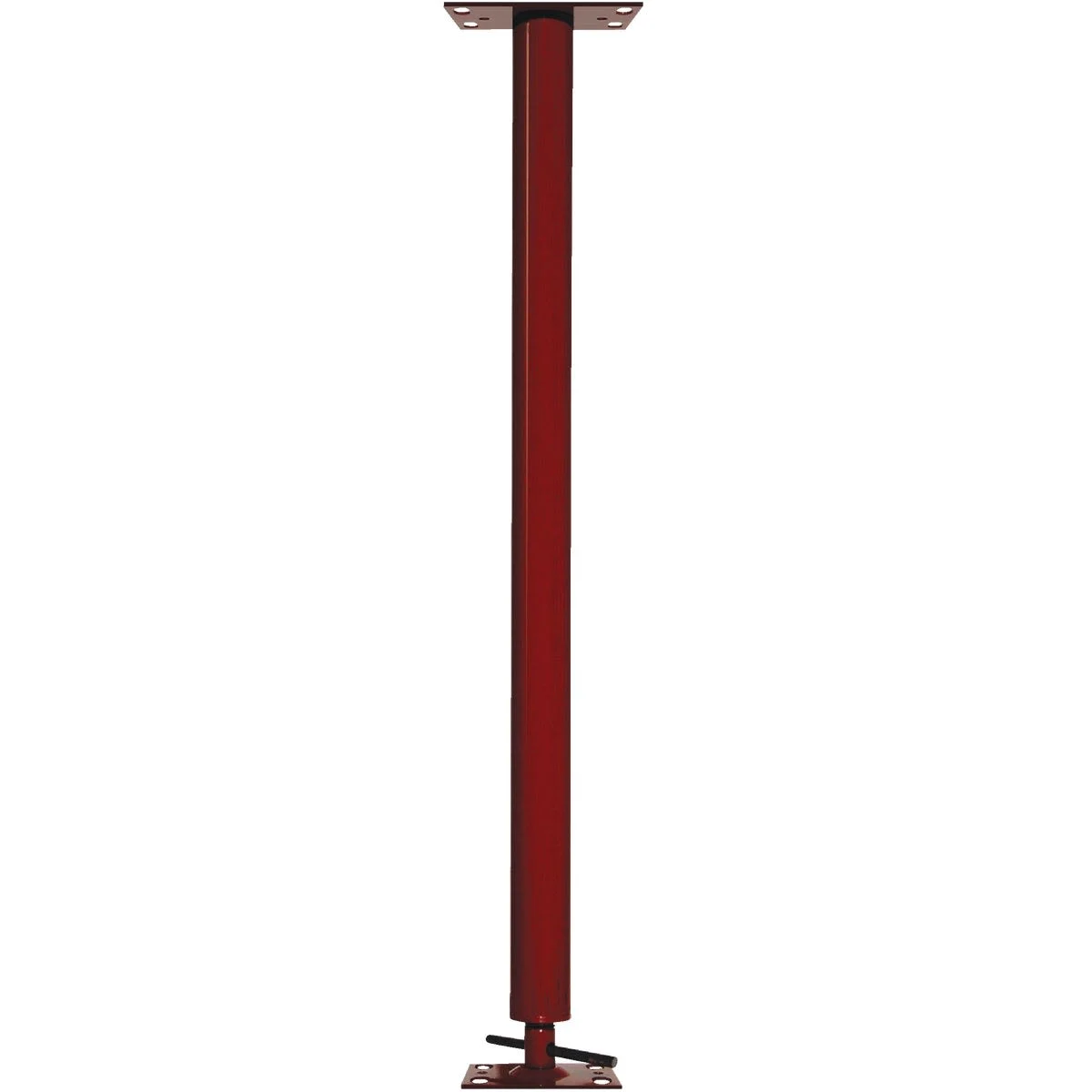

Steel M series mono posts are designed for permanent support during new home construction and can be easily installed by 1 person in less than 15 minutes. M series monoposts are fully assembled, have no loose parts, and are coated with corrosion-resistant primer. 3" outside diameter, 11-gauge carbon steel tubing. M series mono posts have a 4-1/4" x 7-1/2" x 3-gauge welded plate on 1 end and a 4" x 5-1/2" x 3-gauge swivel plate on the adjustable end. Each column has a 4" adjustment range. No. M/202: Adjustable: 6'6" to 6'10", Load Capactiy: 13,000 lbs, Material: Steel, Pkg Qty: 1 No. M/203: Adjustable: 6'9" to 7'1", Load Capactiy: 12,700 lbs, Material: Steel, Pkg Qty: 1 No. M/204: Adjustable: 7'0" to 7'4", Load Capactiy: 12,400 lbs, Material: Steel, Pkg Qty: 1 No. M/205: Adjustable: 7'3" to 7'7", Load Capactiy: 12,100 lbs, Material: Steel, Pkg Qty: 1 No. M/206: Adjustable: 7'6" to 7'10", Load Capactiy: 11,800 lbs, Material: Steel, Pkg Qty: 1 No. M/207: Adjustable: 7'9" to 8'1", Load Capactiy: 11,500 lbs, Material: Steel, Pkg Qty: 1 No. M/208: Adjustable: 8'0" to 8'4", Load Capactiy: 11,200 lbs, Material: Steel, Pkg Qty: 1
Specifications
No specifications available for this product
Manuals
No Manuals available for this product
Warranty & Certifications
No Manuals available for this product
