Product Description

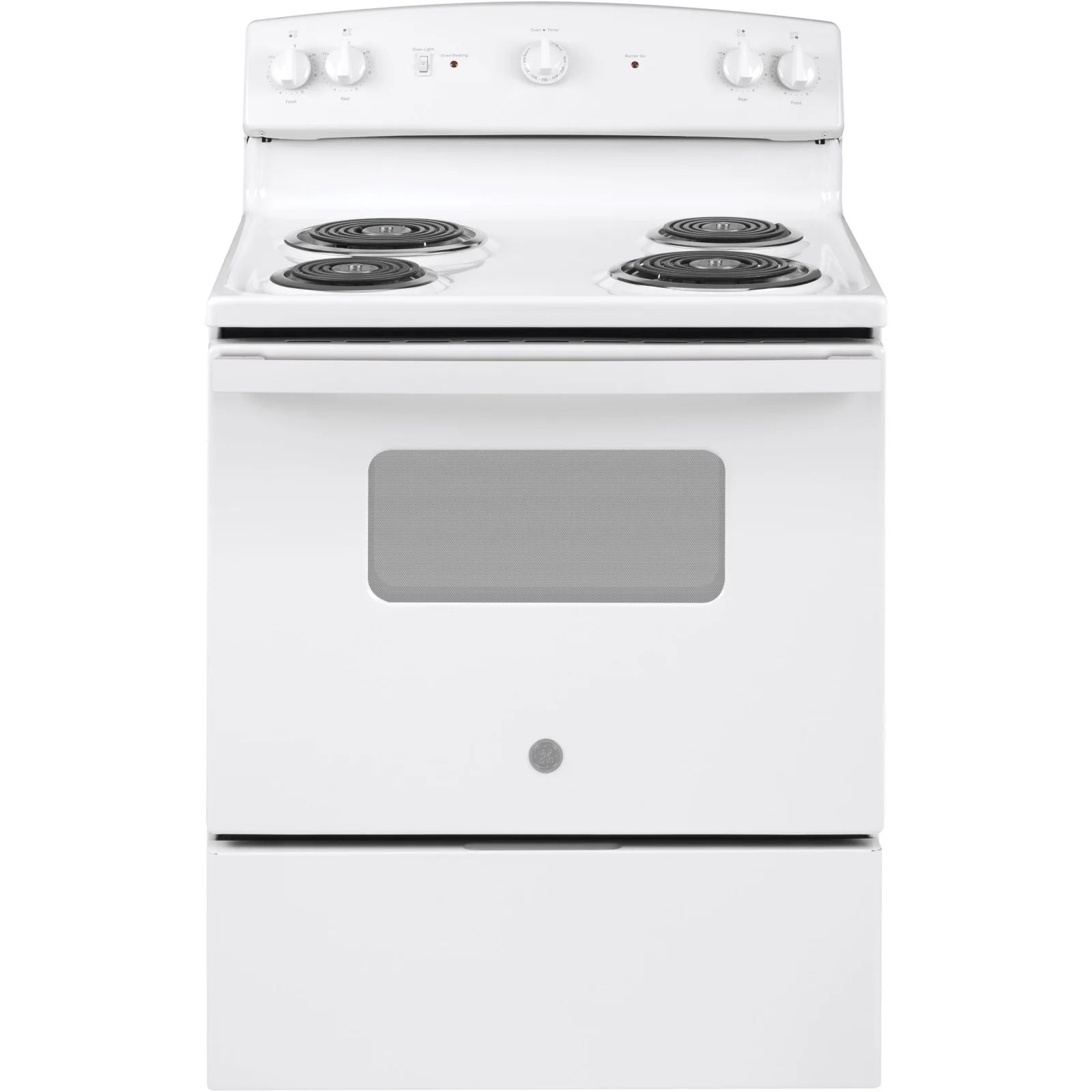

GE® ENERGY STAR® 30" Free-Standing Electric Range
Features
- 5.0 cu. ft. oven capacity : Cook more dishes at once
- Standard clean oven : Smooth surface and rounded corners make clean-up quick and easy
- Sensi-temp technology : Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety
- Dual-element Bake : Upper and lower elements produce even heat and great results
- Removable full-width storage drawer : Large trays and other cookware can be conveniently stored for quick access
Specifications
| Heating Element "ON" Indicator Light | Yes |
|---|
| Overall Height | 47 in |
|---|
| Control Location | Backsplash |
|---|
| Element - Left Front | 6" 1250W Temp Limiting Coil |
|---|
| Drawer Type | Storage |
|---|
| Cooking System | Traditional |
|---|
| Element - Right Front | 8" 2400W Temp Limiting Coil |
|---|
| Cooktop Type | Coil |
|---|
| Oven Features | 4-Pass Bake Element, 4-Pass Broil Element |
|---|
| Cooktop Burner Type | Coil |
|---|
| Total Capacity (cubic feet) | 5 cu ft |
|---|
| Amp Rating at 208V | 40 |
|---|
| Overall Depth | 29 in |
|---|
| Net Weight | 130 lb |
|---|
| Oven Rack Features | 2 Oven Racks |
|---|
| Oven Control Features | Oven "ON" Light |
|---|
| Depth with Door Open | 46.25 in |
|---|
| Parts Warranty | Limited 1-year entire appliance |
|---|
| Fuel Type | Electric |
|---|
| Cooking Technology | Traditional |
|---|
| Product Type | Free-Standing Single Oven |
|---|
| KW Rating at 240V | 11.5 |
|---|
| Labor Warranty | Limited 1-year entire appliance |
|---|
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
|---|
| Bake Wattage | 2585W |
|---|
| Oven Cleaning Type | Standard Clean |
|---|
| App Filter - Product Type | Ranges Free-Standing Single Oven |
|---|
| App Filter - Drawer Type | Storage |
|---|
| Broiler Wattage | 3410W |
|---|
| Warranty Notes | See written warranty for full details |
|---|
| Lift-Up Cooktop With Support Rods | Yes |
|---|
| Element - Right Rear | 6" 1250W Temp Limiting Coil |
|---|
| Textured Steel Side Panels | Yes |
|---|
| Oven Door Features | Metal Door, Small Window |
|---|
| App Filter - Convection | No |
|---|
| Storage Drawer Features | Removable Full-Width |
|---|
| App Filter - Fuel Type | Electric |
|---|
| Element - Left Rear | 8" 2400W Temp Limiting Coil |
|---|
| Cabinet Width | 30 in |
|---|
| Oven Rack Positions (Single or Upper/Lower) | 6 |
|---|
| Handle | Designer Style |
|---|
| App Filter - Control Type | Rotary knobs |
|---|
| OU Certified | No |
|---|
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
|---|
| App Filter - Cooking Technology | Traditional |
|---|
| KW Rating at 208V | 8.8 |
|---|
| Amp Rating at 240V | 40 |
|---|
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
|---|
| Color Appearance | White |
|---|
| App Filter - Cooktop Type | Coil |
|---|
| Cooktop Surface | One-Piece Upswept, Porcelain-Enamel |
|---|
| Handle Color | White |
|---|
| Overall Width | 30 in |
|---|
| App Filter - Cleaning Type | Manual |
|---|
| Depth Without Handle | 26.25 in |
|---|
| Removable One-Piece Drip Bowls | Chrome |
|---|
| Sabbath Mode | Yes |
|---|
| Configuration | Range with Storage Drawer |
|---|
| Oven Interior | 1 Incandescent Light |
|---|
| Approximate Shipping Weight | 150 lb |
|---|
| Control Knobs | Color-Matched |
|---|
