Product Description

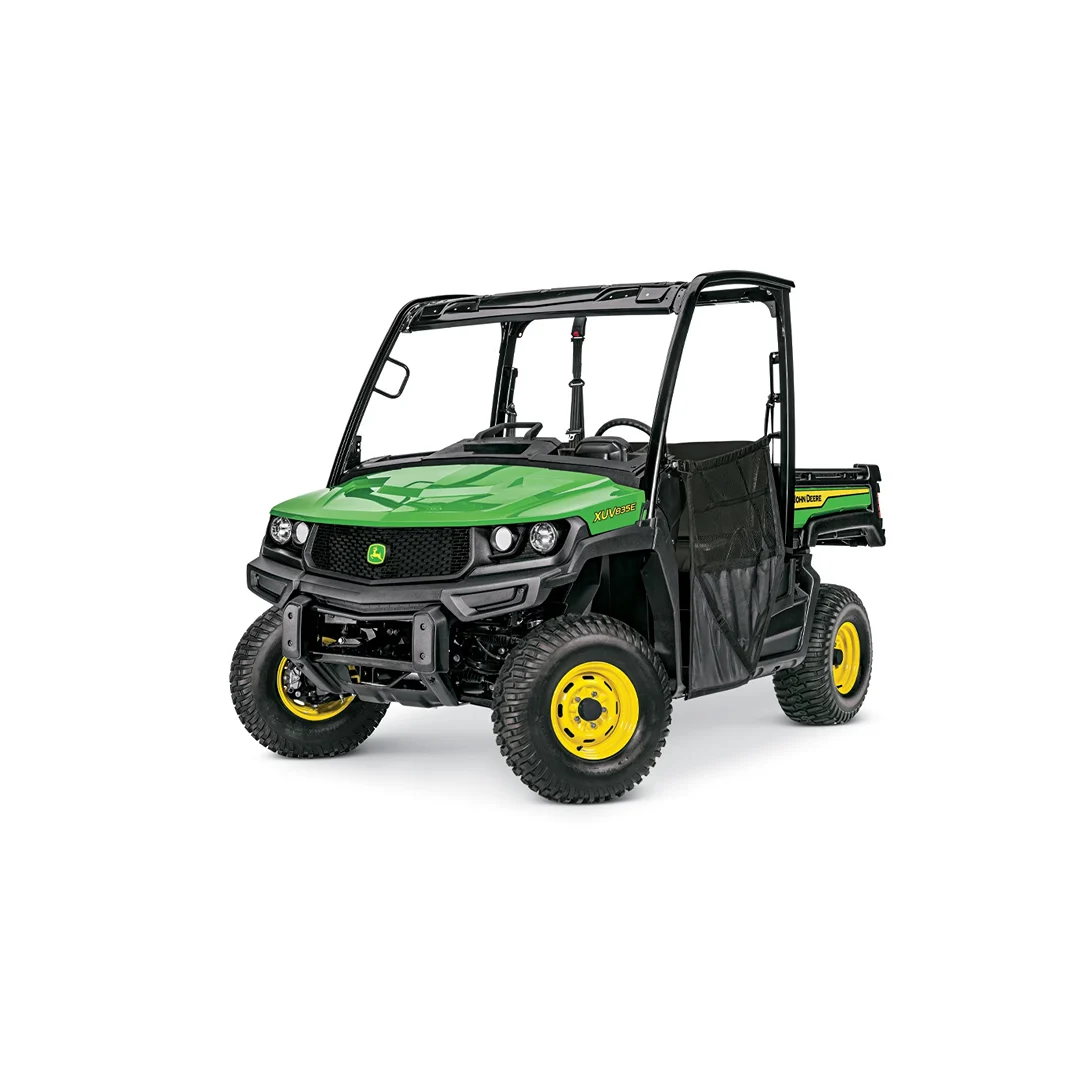

John Deere XUV590M S4 Crossover Utility Vehicle is built for multi-passenger capability, accommodating up to four people. As our fastest mid-size XUV, it features power steering for effortless control. This model boasts easier shifting with an integrated park position and an electronic switch for instant 4WD engagement. The precision-engineered drive system optimizes acceleration, hauling, towing, and hill-climbing capabilities, delivering quick acceleration and a top speed of more than 77 km/h (48 mph). Designed for all-day comfort with numerous vehicle conveniences, it includes a large, extra-durable, one-piece cargo box that ensures hard-driving performance and longevity. The four-wheel independent suspension provides an unparalleled ride over challenging terrain and excellent handling through corners.
Multi-passenger capability for four people
Fastest mid-size XUV with power steering
Easier shifting with integrated park position
Electronic switch for instant 4WD engagement
Precision-engineered drive system for optimized performance
Top speed of more than 77 km/h (48 mph)
Designed for all-day comfort with many conveniences
Large, extra-durable, one-piece cargo box
Four-wheel independent suspension for excellent handling
View Brochure
Model may be pictured with optional features. Additional options may be available to add for an additional price. Looking for John Deere equipment? We are a certified John Deere dealer with all the equipment, accessories, and parts you need to maintain your perfect lawn. Does your mower or tractor need serviced or repaired? Schedule a service appointment and one of our trained experts will get it running like new. Near downtown Hartville, our location is perfect for Stark, Summit, and Portage County residents in Hartville, Uniontown, Alliance, Mogadore, Jackson Township, and the Canton area, including North Canton.
Specifications
Engine:
23.8 kW / 32 hp
4-cycle gas, inline-twin, electronic fuel injection (EFI), overhead valves (OHV)
Displacement: 586 cc
Liquid cooled
Transmission:
Continuously Variable Transmission (CVT) with clutch enclosure
Final drive: Park, high, low, neutral, reverse transaxle
Four-wheel drive: Dash switch actuated
Drivetrain:
Traction assist: Limited slip front differential, Positive locking, switch actuated rear differential lock
Descent control: No
Suspension:
Front: Fully independent dual A-arm with adjustable coil-over shocks, 203 mm (8 in.) travel, anti-roll bar
Rear: Fully independent with lower A-arm and upper camber link with adjustable coil-over shocks, 203 mm (8 in.) travel
Brakes:
196 mm ventilated four-wheel stainless-steel disc brakes with hydraulic 34.93 mm (1.375 in.) diameter twin-piston calipers
Park brake: Park in-transmission
Tires / Wheels:
Front: 25x8-12 Terra Hawk all-terrain on steel wheels, 26x8-14 Maxxis® Bighorn® 2.0 extreme terrain on steel or alloy wheels
Rear: 25x10-12 Terra Hawk all-terrain on steel wheels, 26x10-14 Maxxis Bighorn 2.0 extreme terrain on steel or alloy wheels
Dimensions / Capacities:
Wheelbase: 2743 mm / 108 in.
Weight: With fuel and fluids: 788 kg / 1736 lb
Length: 3658 mm / 144 in.
Width: 1435 mm / 56.5 in.
Height: 1880 mm / 74 in.
Tread centers: Front: 1220 mm / 48 in., Rear: 1168 mm / 46 in.
Ground clearance: Minimum: 236 mm / 9.3 in.
Fuel capacity: 28 L / 7.4 U.S. gal.
Cargo box dimensions: 820 x 1209 x 297 mm / 32.3 x 47.6 x 11.7 in.
Cargo box capacity (weight): 227 kg / 500 lb
Payload capacity: 590 kg / 1300 lb
Towing capacity: 680 kg / 1500 lb
Hitch: Standard 50 mm (2 in.) rear receiver with optional 50 mm (2 in.) front receiver with recovery loops
Manuals
Misplace the user manual? No problem! Hartville Hardware is here to help. Below is the user manual for the John Deere XUV590M Utility Vehicle . Read it before you buy it, or come back and download it if you have any questions after getting your product home.
John Deere XUV590M Utility Vehicle Manual
Warranty & Certifications
John Deere offers a warranty for all Turf and Utility Equipment that they manufacture.
Each piece of equipment carries a specific warranty including a specific warranty period. Please contact your Hartville Hardware Outdoor Power Sales Team Member for more details.
