Product Description

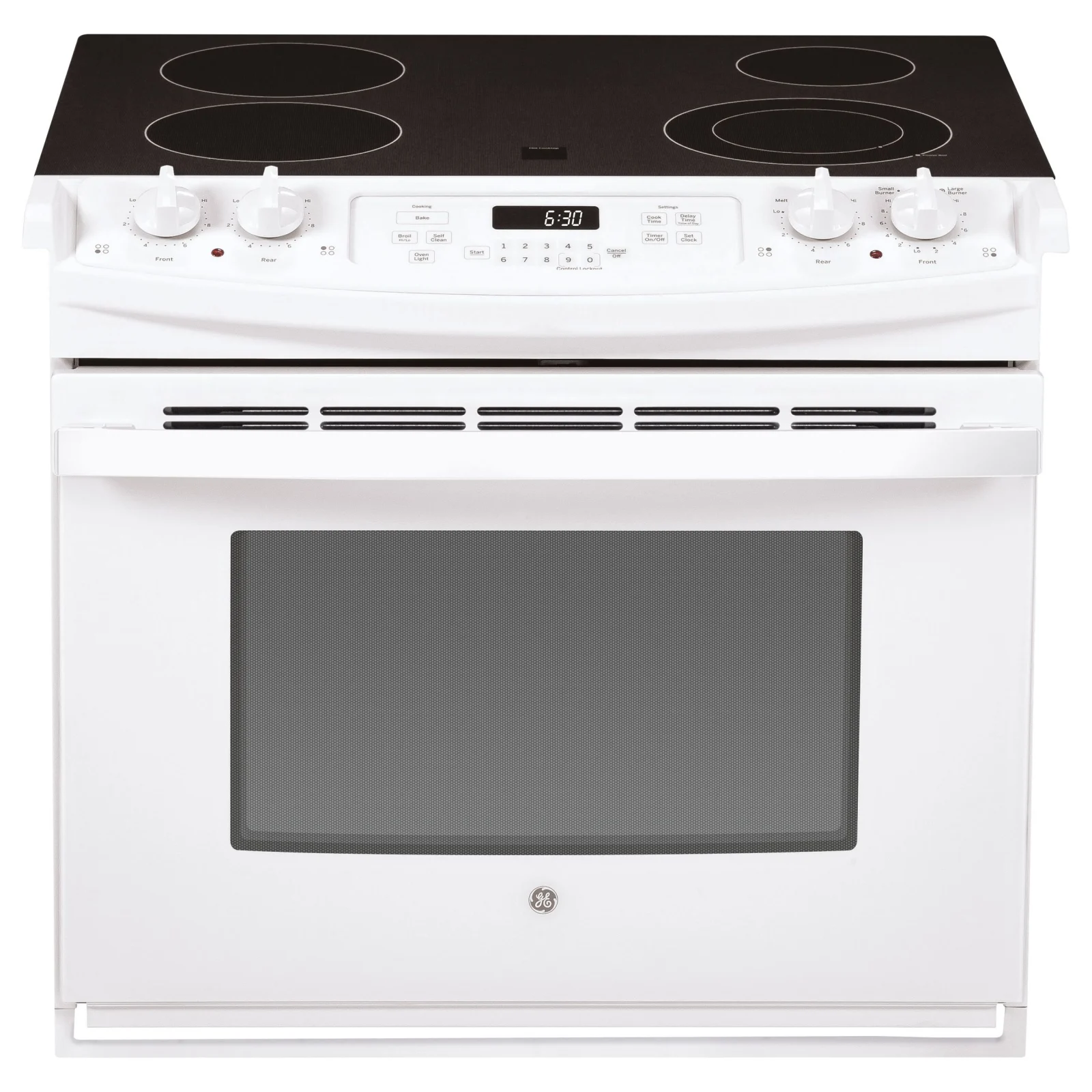

GE® 30" Drop-In Electric Range
Features
- 9"/6" Power Boil element : Produces rapid, powerful heat
- Self-clean oven : Cleans the oven cavity without the need for scrubbing
- Ceramic glass cooktop : Smooth cooktop easily wipes clean
- Black gloss oven interior : Enjoy a clean and sleek appearance
- Dual-element Bake : Upper and lower elements produce even heat and great results
- Electronic oven controls : Electronic touch pads are easy to operate
Specifications
| Installation | Flush Appearance |
|---|
| Oven Rack Positions (Single or Upper/Lower) | 7 |
|---|
| Self-Clean Oven Door Lock | Automatic |
|---|
| Depth Without Handle | 25.75 in |
|---|
| Labor Warranty | Limited 1-year entire appliance |
|---|
| Warranty Notes | See written warranty for full details |
|---|
| Total Capacity (cubic feet) | 4.4 cu ft |
|---|
| Interior Oven Light | 1 Incandescent |
|---|
| Oven Control Features | Audible Preheat Signal, Auto Oven Shut-Off with Override, Certified Sabbath Mode, Control Lock Capability, C° or F° Programmable, Delay Bake Option With Cook & Hold, Electronic Clock & Kitchen Timer |
|---|
| Sabbath Mode | Yes |
|---|
| Cooktop Width | 31.25 in |
|---|
| Net Weight | 152 lb |
|---|
| Product Type | Drop-In |
|---|
| Control Knobs | Weighted, White |
|---|
| Overall Height | 27 in |
|---|
| Handle Color | White |
|---|
| KW Rating at 208V | 8.9 |
|---|
| Oven Rack Features | 2 Oven Racks |
|---|
| Cooking Technology | Traditional |
|---|
| Cooktop Type | Radiant Smoothtop |
|---|
| Broiler Wattage | 3420W |
|---|
| Oven Door Features | Big View Oven Window, Glass Door |
|---|
| Cooktop Surface | Overhanging Cooktop, White Patterned Ceramic Glass |
|---|
| KW Rating at 240V | 11.9 |
|---|
| Oven Cleaning Type | Self-Clean |
|---|
| Cooktop Burner Type | Radiant, Smoothtop |
|---|
| Bake Wattage | 3410W |
|---|
| Hot Surface Indicator Lights | 4 |
|---|
| Element - Left Rear | 8" 2000W |
|---|
| Approximate Shipping Weight | 179 lb |
|---|
| Handle | Designer Style |
|---|
| Heating Element "ON" Indicator Light | 2 |
|---|
| Amp Rating at 240V | 40 |
|---|
| Color Appearance | White on White |
|---|
| Element - Left Front | 8" 2000W |
|---|
| Melt Setting | Yes |
|---|
| Power Boil Burner | Yes |
|---|
| Oven Features | 6-Pass Bake Element, 6-Pass Broil Element |
|---|
| Amp Rating at 208V | 40 |
|---|
| OU Certified | No |
|---|
| Parts Warranty | Limited 1-year entire appliance |
|---|
| Overall Depth | 28.5 in |
|---|
| Cabinet Width | 30 in |
|---|
| Control Type | Digital Temperature Display, Electronic, Touchpads |
|---|
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 17-1/2 x 18-1/4 |
|---|
| Cabinet Opening | 30 in |
|---|
| Fuel Type | Electric |
|---|
| Element - Right Front | 9"/6" 3000W Power Boil |
|---|
| Element - Right Rear | 6" 1200W |
|---|
| Control Location | Front |
|---|
| Overall Width | 31.25 in |
|---|
| Depth with Door Open | 44.625 in |
|---|
