Product Description

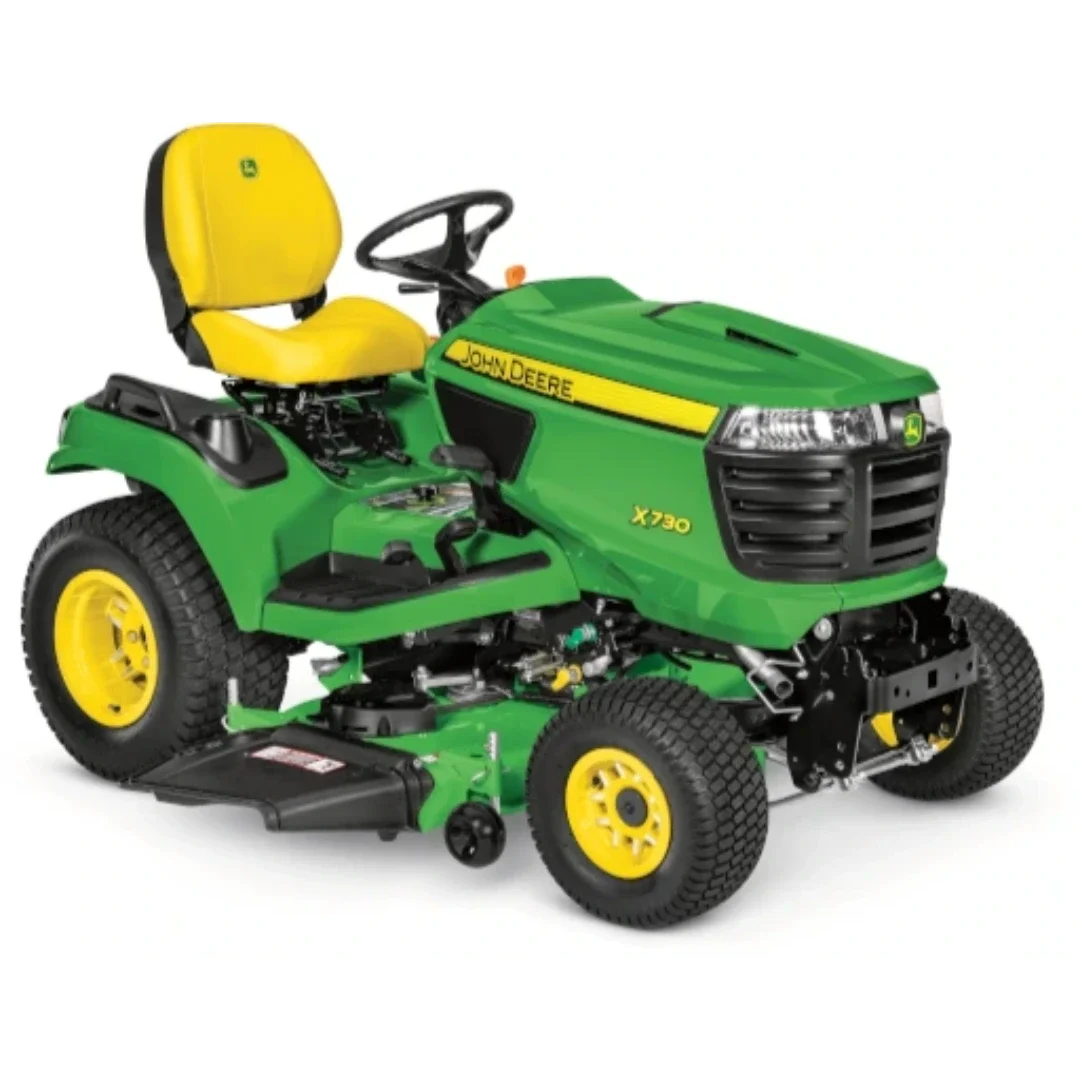

John Deere X730 Signature Series Lawn Tractor is engineered to provide top-notch performance and reliability. Powered by a 25.5-hp (19 kW) iTorque™ Power System, this model ensures smooth and efficient operation, making it ideal for all your lawn care needs. The X730 features power two-wheel steer, a power lift system, and Twin-Touch™ forward and reverse foot pedals, providing exceptional ease of use and maneuverability.
Features:
This lawn tractor comes with a choice of 48-, 54-, and 60-inch mower deck sizes, ensuring you have the right size for your mowing needs. The 54-in. (137-cm) and 60-in. (152-cm) High-Capacity (HC) Mower Decks are built to handle tough mowing tasks with ease. The engine is a reliable V-twin liquid-cooled design, providing consistent performance. The operator station is designed for comfort and convenience, making long hours of operation more enjoyable. This model is backed by a four-year or 700-hour bumper-to-bumper warranty, providing peace of mind and long-term reliability. It is also compatible with a range of snow removal and yard care equipment, making it versatile for year-round use.
View Brochure
Model Number: 5812M
This model is the tractor only. Model may be pictured with optional features. Additional options may be available to add for an additional price. Looking for John Deere equipment? We are a certified John Deere dealer with all the equipment, accessories, and parts you need to maintain your perfect lawn. Does your mower or tractor need service or repair? Schedule a service appointment, and one of our trained experts will get it running like new. Near downtown Hartville, our location is perfect for Stark, Summit, and Portage County residents in Hartville, Uniontown, Alliance, Mogadore, Jackson Township, and the Canton area, including North Canton.
Specifications
Engine:
Power: 25.5 hp / 19 kW
Manufacturer/model: FD750D EFI
Type: Electronic fuel injection (EFI), overhead valve, full-pressure lube, oil filter
Displacement: 45.5 cu in. / 745 cc
Cylinders: V-twin, cast-iron liners
Governor: Mechanical
Choke/speed control: No choke required
Cooling method: Liquid
Air cleaner: Dry, replaceable with foam precleaner
Oil change: No tools
Fuel System:
Type: Gasoline
Fuel delivery: Electronic fuel injection
Fuel gauge: Gauge on dash
Fuel tank location: Rear
Fuel fill opening: On left fender, 3 in. / 7.6 cm
Fuel tank capacity: 5.2 U.S. gal. / 19.7 L
Electrical System:
Battery: 12 V / 340 CCA
Charging system: Flywheel alternator, regulated, 20 amp
Engine starter: Solenoid shift
Hour meter: Yes
Headlights: Two standard, halogen, 37 W
Taillights or reflector: Taillights
Backup lights: Yes
Rear work lights: Yes
12-V outlet: Yes
Transaxle:
Type: K90 hydrostatic integrated with transaxle
Control: Twin Touch™ pedals
Cruise control: Yes
Oil cooler: Yes
Oil filter: Replaceable suction side 10 micron
Differential lock: Standard
Forward speed: 0-8.5 mph / 0-13.7 km/h
Reverse speed: 0-6 mph / 0-9.7 km/h
Brakes: Internal wet disc
Chassis:
Frame: Welded heavy-duty
Primer/paint: E-coat/powder
Weight bracket: Standard front - holds up to four Quik-Tatch weights, 42 lb / 19 kg
Receiver hitch: Yes, front
Front axle: JDM BA8 nodular iron casting
Spindle bushings: Metal, replaceable
Front tires: 18x8.5-8 turf
Rear tires: 26x12-12 turf
Hood material: Noryl GTX902, painted
Fender deck material: Stamped steel
Floor mats: Sure-grip rubber
Storage: Covered toolbox
Service interval decal: Yes
Fender handles/grips: Handles
Cup holder: Yes
Equipment mounting: Optional category 1 3-point hitch
Maximum towing capacity: 1,000 lb / 454 kg
Steering:
Type: Hydraulic power
Four-wheel steer: Not available on this model
Steering wheel: 14 in. / 35.6 cm
Tilt steering wheel: Standard, six position
Turning radius: 25 in. / 63.5 cm
Uncut circle radius: 54 HC, 32 in. / 81.3 cm; 60 HC, 28 in. / 71.1 cm
Seat:
Type: Two-piece adjustable seat with brand embroidery
Seat back height: 21 in. / 53.3 cm
Armrests: Optional
Fore-aft adjustment: While seated, slide rail, 14-position, 7 in. / 17.8 cm
Seat suspension: Six-position parallel arm
Lift System:
Type: Two-function hydraulic
Hydraulic outlets: Four, standard
Mower cut height: 1-5.25 in. / 2.5-13.3 cm
Cut height increments: 0.25 in. / 0.64 cm
Preset cut height: Yes
Mower Deck:
Type: Side discharge
Cutting width: Accel Deep™ mower deck, 48 in. / 122 cm; High capacity mower deck, 54, 60 in. / 137, 152 cm
Construction: Forged steel deck shell
Mower deck material: 48A, 10 gauge / 0.135 in. / 3.4 mm; 54 HC and 60 HC, 9 gauge / 0.150 in. / 3.8 mm
Mower wash port: Yes
Mower drive system: Hydraulic clutch, shaft
Mower wheels: 48A, four and center front roller; 54 and 60 HC, four with optional center front roller
Mower wheel adjustment: Spring-loaded pin
Mower level adjustment: Exact Adjust ports and onboard deck-leveling gauge
Mower Attachability:
Type: Roll under tractor (48A); Drive-over deck (54, 60 HC)
Front draft arms: Overcenter
Rear draft arms: V-align
Mower wheels rotate: Yes, 90 degrees for easy mower removal (48A); N/A (54 HC, 60 HC)
Drive system: Shaft or AutoConnect
Manuals
Misplace the user manual? No problem! Hartville Hardware is here to help. Below is the user manual for the John Deere X730 Lawn Tractor. Read it before you buy it, or come back and download it if you have any questions after getting your product home.
John Deere X730 Lawn Tractor Manual
Warranty & Certifications
John Deere offers a warranty for all Turf and Utility Equipment that they manufacture.
Each piece of equipment carries a specific warranty including a specific warranty period. Please contact your Hartville Hardware Outdoor Power Sales Team Member for more details.
