Product Description
John Deere XUV825M 4 Seater Crossover Utility Vehicle is the perfect UTV to conquer tough terrain with confidence.
Features:
Climate Controlled Cab. Standard four-wheel drive with rear differential lock. Dual a-arm front and rear independent suspension. Built to last with a heavy-duty frame, automotive grade panels, and constant velocity boot protection. Pick-up truck like controls and instrument panel. Room for four people. Able to haul 454 kg (1000 lbs) and tow 1814 kg (4000 lbs). 812-cc electronic fuel injection gasoline engine with liquid-cooled, dual-overhead cams. Go further with the 42.8-L (11.3-gal) fuel tank. Available in Green & Yellow, Olive & Black, or Camo.

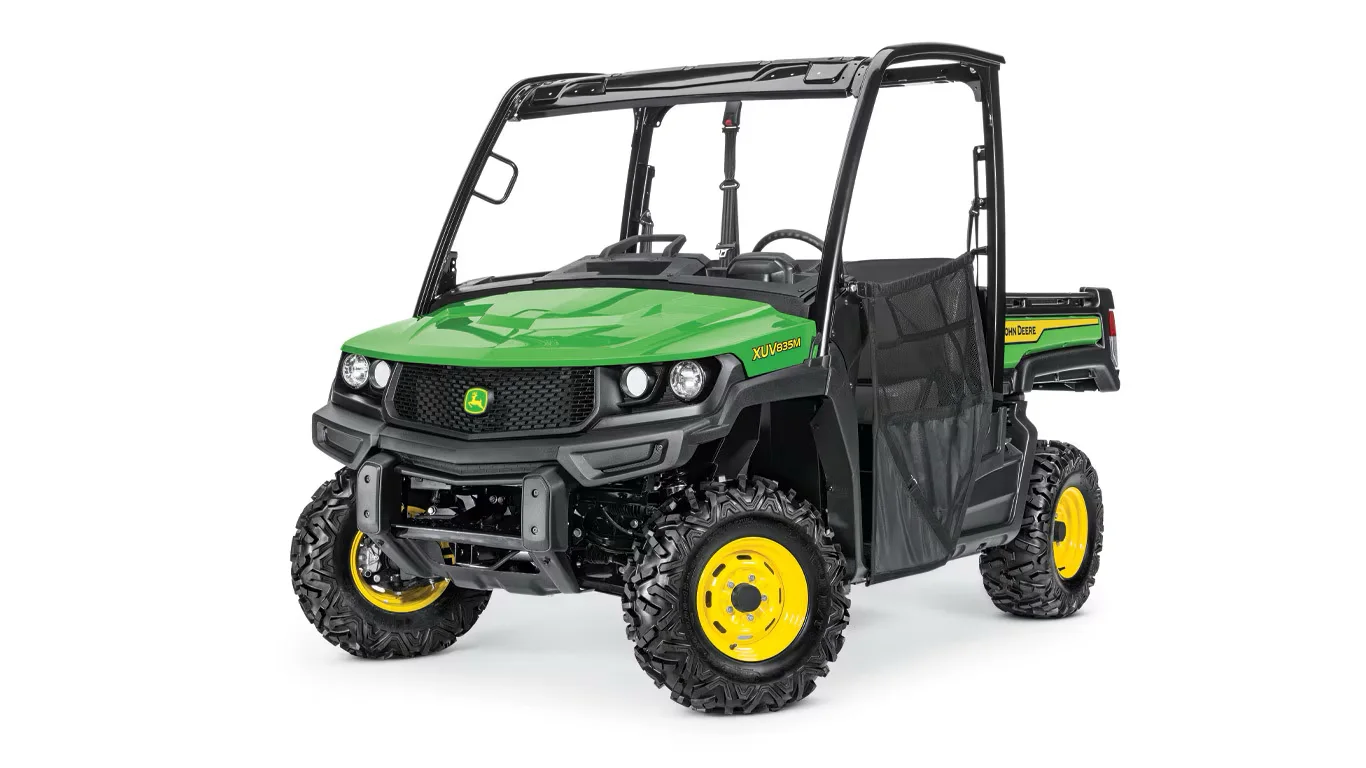

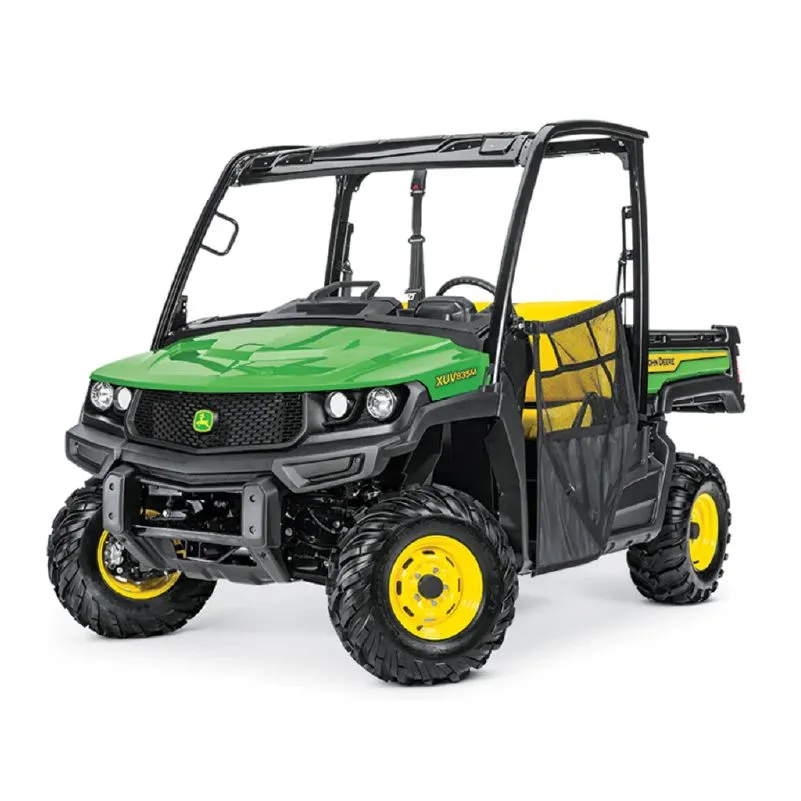

View Brochure NOTE: Base model image shown. Does not include any additional accessories. Additional accessories can be added for an additional cost. Additional color options are available at an additional cost. Looking for John Deere equipment? We are a certified John Deere dealer with all the equipment, accessories, and parts you need to maintain your perfect lawn. Does your mower or tractor need serviced or repaired? Schedule a service appointment, and one of our trained experts will get it running like new. Near downtown Hartville, our location is perfect for Stark, Summit, and Portage County residents in Hartville, Uniontown, Alliance, Mogadore, Jackson Township, and the Canton area, including North Canton.
Specifications
Engine:
Power: 38.8 kW / 52 hp
Type: 4-cycle gas, electronic fuel injection (EFI)
Displacement: 812 cc
Cooling System: Liquid
Cargo Box:
Dimensions: 1143 x 305 x 1320 mm / 45 x 12 x 52 in.
Capacity (Weight): 454 kg / 1000 lb
Towing Capacity:
Suspension:
Front: Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel
Rear: Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel
Final Drive:
Park, high, low, neutral, reverse transaxle
Four-Wheel Drive:
Dash switch actuated four-wheel drive system
Fuel Capacity:
Key Specs:
Type: 4-cycle gas, electronic fuel injection (EFI)
Displacement: 812 cc
Power: 38.8 kW / 52 hp
Cooling System: Liquid
Engine:
Type: 4-cycle gas, electronic fuel injection (EFI)
Displacement: 812 cc
Power: 38.8 kW / 52 hp
Cooling System: Liquid
Transmission:
Continuously Variable Transmission (CVT) with clutch enclosure
Final Drive:
Park, high, low, neutral, reverse transaxle
Four-Wheel Drive:
Dash switch actuated four-wheel drive system
Traction Assist: Limited slip front differential, Positive locking, switch actuated rear differential lock
Descent Control: Yes
Suspension:
Front: Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel
Rear: Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel
Brakes:
Type: Front/rear hydraulic disc with twin piston front calipers
Park Brake: Park in-transmission, Optional factory-installed secondary foot operated with hand release
Tires / Wheels:
Front: 27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on steel or alloy wheels; 27x9-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels
Rear: 27x11-R14 Maxxis Bighorn 2.0 extreme terrain radials on steel or alloy wheels; 27x11-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels
Dimensions / Capacities:
Wheelbase: 2896 mm / 114 in.
Weight: With fuel and fluids: 953 kg / 2101 lb
Length: 3911 mm / 154 in.
Width: 1574 mm / 62.0 in.
Height: 1903 mm / 74.9 in.
Tread Centers: 1305 mm / 51.4 in.
Ground Clearance: 280 mm / 11.0 in.
Fuel Capacity: 27.6 L / 7.3 U.S. gal.
Cargo Box Dimensions: 1143 x 305 x 1320 mm / 45 x 12 x 52 in.
Cargo Box Capacity (Weight): 454 kg / 1000 lb
Payload Capacity: 592 kg / 1305 lb
Towing Capacity: 680 kg / 1500 lb
Hitch: Standard receiver: 5.1 cm / 2 in.
Electrical:
Battery: 12 V 480 CCA
Alternator: 85 amp
DC Outlet: 12 V
Instrumentation:
Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)
Manuals
Misplace the user manual? No problem! Hartville Hardware is here to help. Below is the user manual for the John Deere XUV825M Utility Vehicle. Read it before you buy it, or come back and download it if you have any questions after getting your product home.
John Deere XUV825M Utility Vehicle Manual
Warranty & Certifications
John Deere offers a warranty for all Turf and Utility Equipment that they manufacture.
Each piece of equipment carries a specific warranty including a specific warranty period. Please contact your Hartville Hardware Outdoor Power Sales Team Member for more details.
