Product Description

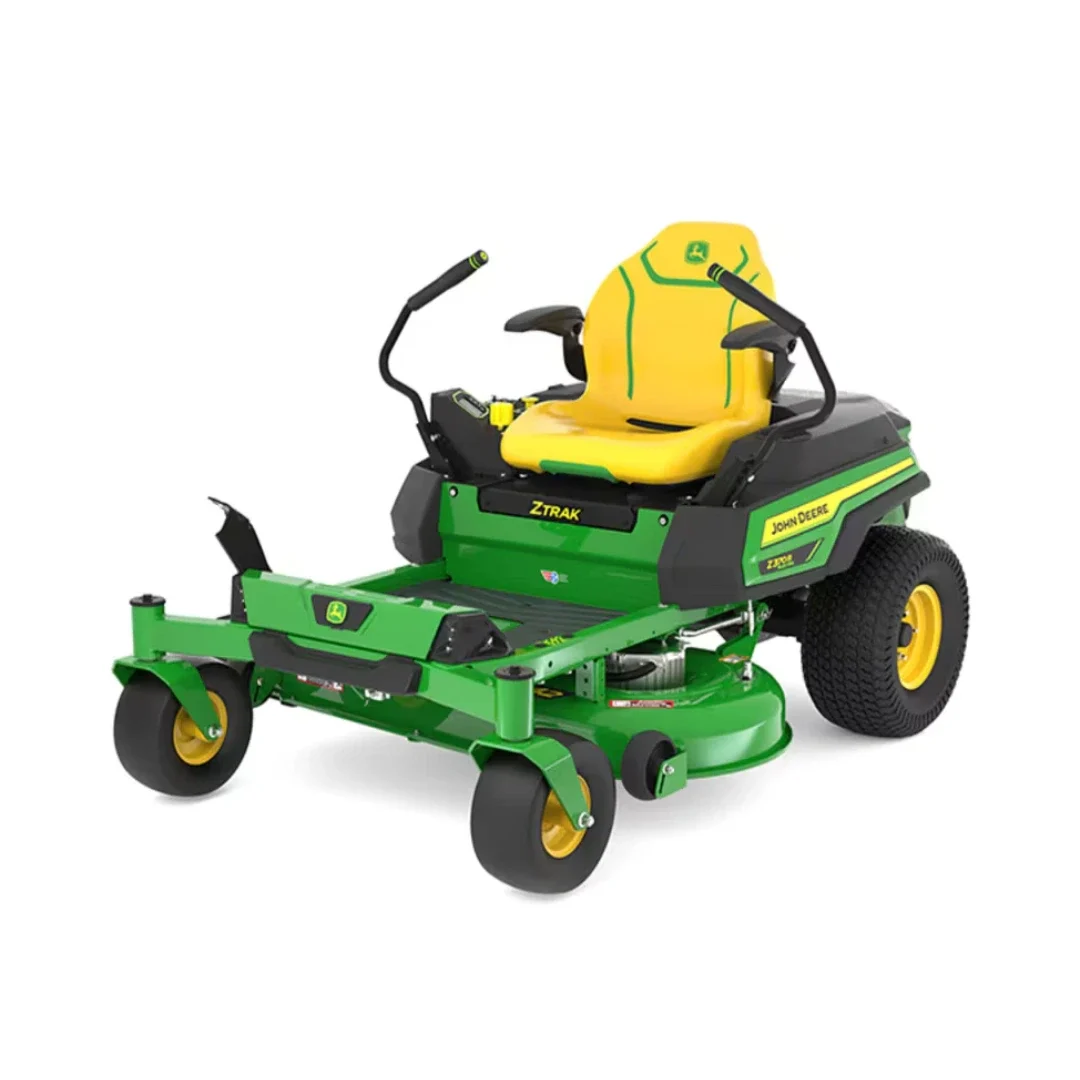

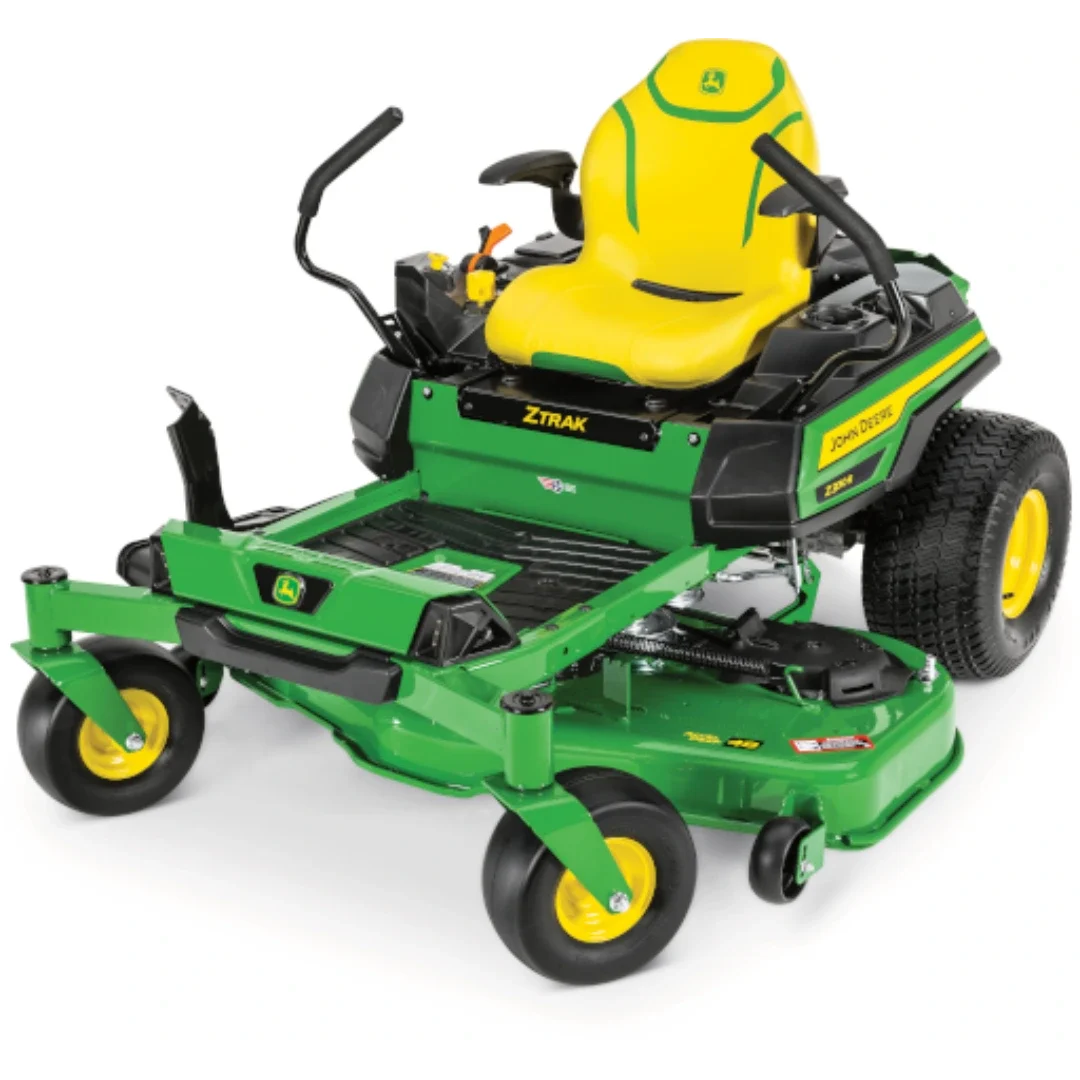

John Deere Z330M ZTrak Mower with 54-in. Deck is designed to provide efficient and reliable performance for mowing up to 2 acres. Powered by a 23 HP* (17 kW) V-Twin engine, this mower delivers a powerful and durable operation. The 20-inch (50.8 cm) high-back custom-tailored seat and standard rear hitch enhance comfort and versatility, making your mowing experience more enjoyable.
The Z330M features the 48-in. (122-cm) Accel Deep™ (48A) Mower Deck with a flat-top design, ensuring a clean and precise cut every time. For those needing a larger deck, the 54-in. (137-cm) Accel Deep™ (54A) Mower Deck is also available. The operator station offers adjustable controls and seat position for a comfortable ride, making long mowing sessions more manageable. Backed by a 3-year/200-hour bumper-to-bumper warranty, the Z330M provides peace of mind and dependable service. Convenient machine servicing and easy-to-find-and-use instruments and controls make this mower user-friendly and efficient.
View Brochure
Model Number: 5710GX
This model includes the mower only. Additional attachments and accessories sold separately. Model may be pictured with optional features. Additional options may be available to add for an additional price. Looking for John Deere equipment? We are a certified John Deere dealer with all the equipment, accessories, and parts you need to maintain your perfect lawn. Does your mower or tractor need service or repair? Schedule a service appointment, and one of our trained experts will get it running like new. Near downtown Hartville, our location is perfect for Stark, Summit, and Portage County residents in Hartville, Uniontown, Alliance, Mogadore, Jackson Township, and the Canton area including North Canton.
Specifications
Engine:
Power: 23 hp / 17.2 kW
Model Number: FR691V
Displacement: 44.3 cu in. / 726 cc
Cylinders: V-twin
Lubrication: Full pressure with replaceable filter, capacity 2.2 U.S. qt / 2.1 L
Type: Overhead valve
Battery: 12 V / 300 CCA
Choke/Speed Control: Separate levers
Cooling Method: Air
Fuel Tank Capacity: 3.0 U.S. gal. / 11.4 L
Fuel Gauge: Translucent tank
Drive Train:
Dual Hydros: Hydro-Gear EZT-D with 1-in. (2.5-cm) axles
Travel Speed:
Forward Speed: 0-7 mph / 0-11.3 km/h
Reverse Speed: 0-3.5 mph / 0-5.6 km/h
Speed and Direction Control: Twin levers
Control Adjustment: 3 height, 11 positions
Chassis:
Frame: Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing
Primer/Paint: E-coat/powder
Front Caster Tires: 11x6-5
Front Caster Bearings: Sealed ball bearings
Drive Tires: 20x10-8
Hour Meter: Yes
Service Interval Decal: Yes
Storage Compartment: Optional covered
Cup Holder: Yes
Maximum Towing Capacity: 250 lb / 113 kg
Seat:
Seat Back Height: High back with optional armrests, 20 in. / 51 cm
Fore-Aft Adjustment: 2.9 in. / 7 cm
Seat Suspension: Two springs
Lift System:
Type: Foot lift
Mower Cut Height: 1.25-4.5 in. / 3-11 cm
Cut Height Increments: 0.25 in. / 0.64 cm
Preset Cut Height: Yes
Mower Deck:
Width of Cut: Accel Deep™ mower deck, 48 in. / 122 cm; Accel Deep™ mower deck, 54 in. / 137 cm
Type: Side discharge
Mower Deck Material: 10 gauge / 0.135 in. / 3.4 mm
Mower Drive System: V-belt
PTO:
Type: Electric, 105 lb-ft / 142 Nm
Drive: V-belt
Dimensions:
Wheelbase: 49.4 in. / 1255 mm
Overall Length: 75.4 in. / 1915 mm
Width Without Mower: 43.3 in. / 1100 mm
Width With Mower: 48A: 62.6 in. / 1590 mm; 54A: 68.5 in. / 1740 mm
Width With Mower (Deflector Raised for Storage): 48A: 52.8 in. / 1340 mm; 54A: 57.1 in. / 1450 mm
Height: 44.2 in. / 1123 mm
Weight: 48A: 598 lb / 272 kg; 54A: 609 lb / 277 kg
Operation:
Rollover Protective Structure (ROPS): No
Slope Operating Limit: 13 degrees; 10 degrees with Material Collection System
Operator Presence System: Yes
Park Brake Interlock: Yes
Operator Video: Yes, online
Note 1: Durable Accel Deep Mower Decks are forged from 10-gauge steel with double captured mower wheels
Note 2: Easily change cut height from 1.25 to 4.5 in. (3 to 11 cm) using the foot lift and cutting height dial
Note 3: Integrated park brake is automatically applied when steering levers are stowed outward
Warranty:
3 year or 200 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Manuals
Misplace the user manual? No problem! Hartville Hardware is here to help. Below is the user manual for the John Deere Z330M Zero-Turn. Read it before you buy it, or come back and download it if you have any questions after getting your zero-turn home.
John Deere Z330M Manual
Warranty & Certifications
John Deere offers a warranty for all Turf and Utility Equipment that they manufacture.
Each piece of equipment carries a specific warranty including a specific warranty period. Please contact your Hartville Hardware Outdoor Power Sales Team Member for more details.
