Product Description

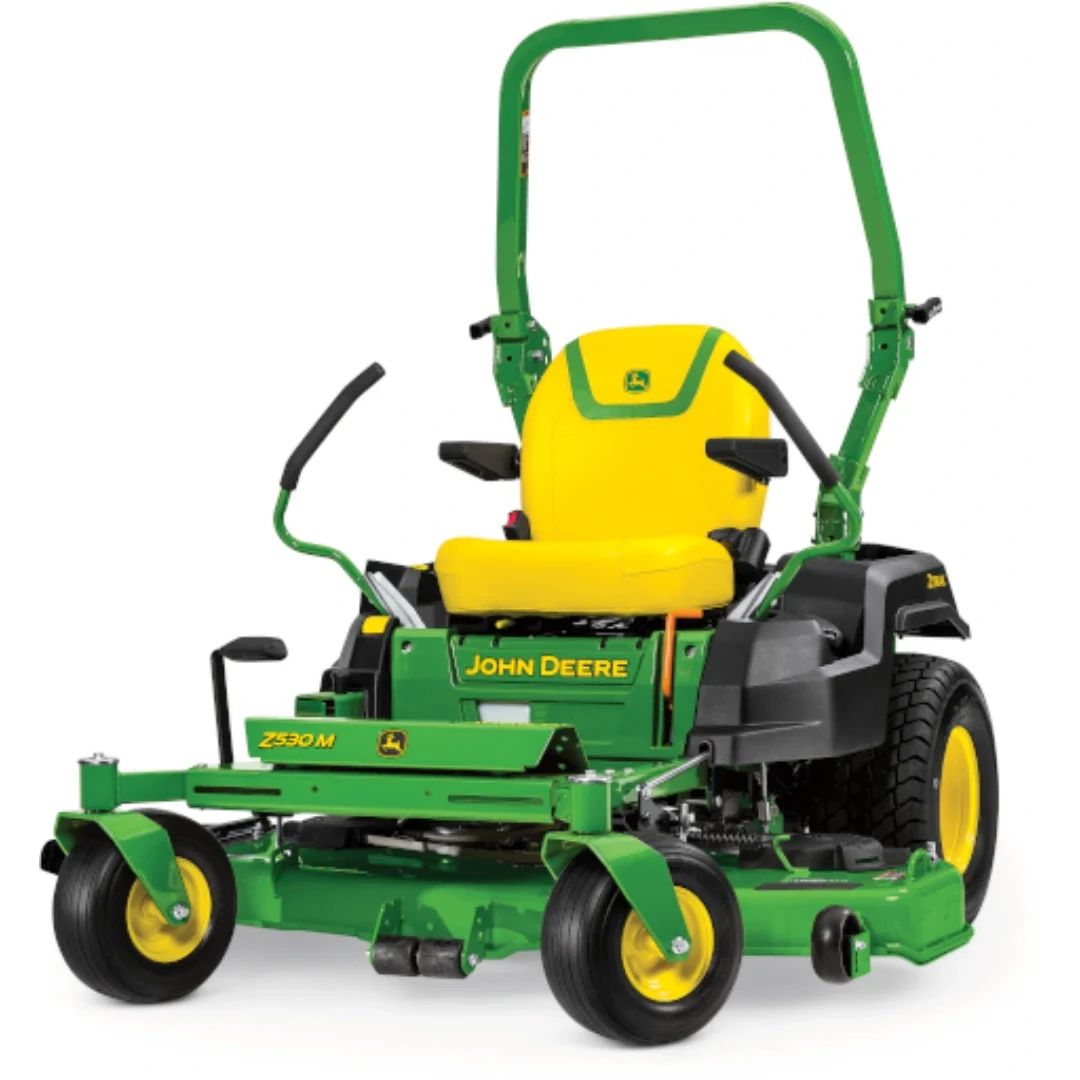

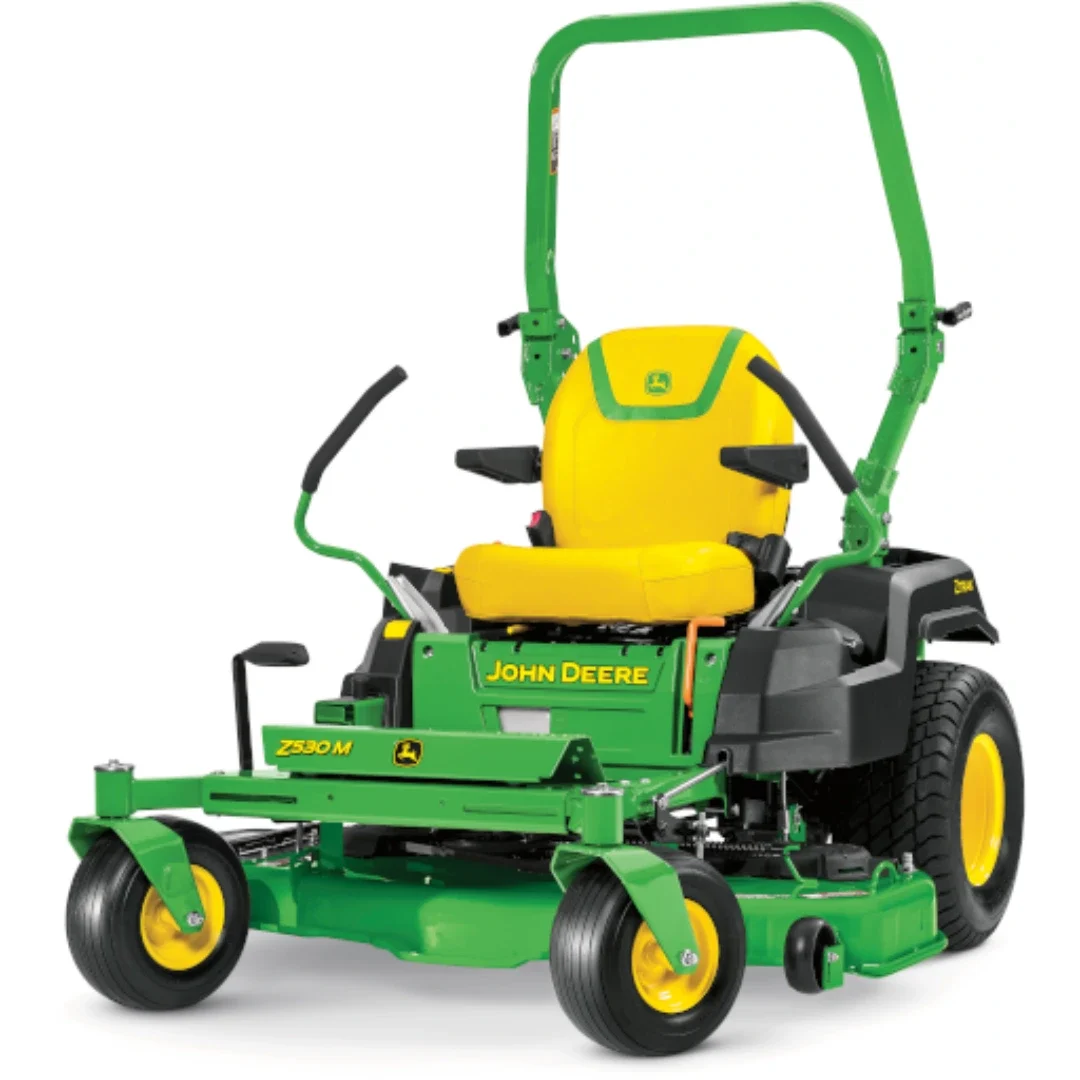

John Deere Z530M ZTrak Mower with 48-In. Deck is built for those who demand superior performance and comfort. Featuring a 24 hp* (17.9 kW) V-Twin engine, this mower ensures smooth and powerful operation.
The 20-in. cut and sewn seat with ComfortGlide™ suspension provides an exceptionally comfortable ride, even during long mowing sessions. The operator station is designed with adjustable controls and ComfortGlide™ suspension, enhancing user comfort and convenience. The easy-to-see-and-use electric fuel gauge, instruments, and controls make operating this mower straightforward and efficient. The flat-top design of the Accel Deep™ Mower Decks ensures superior cut quality and productivity, maintaining your lawn’s pristine appearance. With a 44.3-cu in. (726-cc) V-Twin engine, the Z530M delivers superior performance and long life. The rollover protective structure (ROPS) provides a protective zone around the operator, ensuring safety while mowing. Backed by a 4-year/300-hour bumper-to-bumper warranty**, this mower offers peace of mind and reliable service.
View Brochure
Model Number: 5630GX
This model includes the mower only. Additional attachments and accessories sold separately. Model may be pictured with optional features. Additional options may be available to add for an additional price. Looking for John Deere equipment? We are a certified John Deere dealer with all the equipment, accessories, and parts you need to maintain your perfect lawn. Does your mower or tractor need service or repair? Schedule a service appointment, and one of our trained experts will get it running like new. Near downtown Hartville, our location is perfect for Stark, Summit, and Portage County residents in Hartville, Uniontown, Alliance, Mogadore, Jackson Township, and the Canton area including North Canton.
Specifications
Engine:
Power: 24 hp / 17.9 kW
Model Number: FR730V
Displacement: 44.3 cu in. / 726 cc
Cylinders: V-twin
Lubrication: Full pressure with replaceable filter, capacity 2 U.S. qt / 1.9 L
Type: Overhead valve
Battery: 12 V / 300 CCA
Choke/Speed Control: Separate control levers
Cooling Method: Air
Fuel Tank Capacity: 4.5 U.S. gal. / 17 L
Fuel Gauge: Electric gauge and fuel level sight line
Drive Train:
Dual Hydros: Tuff Torq® TZT7-U with 1-in. (2.5-cm) axles
Travel Speed:
Forward Speed: 0-8 mph / 0-12.9 km/h
Reverse Speed: 0-4 mph / 0-6.4 km/h
Speed and Direction Control: Twin premium levers
Control Adjustment: 2-height/9-fore-aft, 18 positions
Chassis:
Frame: Heavy-duty frame tubing
Primer/Paint: E-coat/powder
Front Caster Tires: 13x6.5-6
Front Caster Bearings: Sealed ball bearings
Drive Tires: 22x9.5-10
Hour Meter: Yes
Service Interval Decal: Yes
Storage Compartment: Yes
Cup Holder: Yes
Maximum Towing Capacity: 250 lb / 113 kg
Seat:
Seat Back Height: High back with armrests and ComfortGlide™, 20 in. / 50.8 cm
Fore-Aft Adjustment: While seated, 3 in. / 7.6 cm
Seat Suspension: Two springs and ComfortGlide™
Lift System:
Type: Foot lift
Mower Cut Height: 1-4 in. / 2.5-10.2 cm
Cut Height Increments: 0.25 in. / 0.64 cm
Preset Cut Height: Yes
Mower Deck:
Width of Cut: Accel Deep™ mower deck, 48 in. / 122 cm; Accel Deep™ mower deck, 54 in. / 137 cm; Accel Deep™ mower deck, 60 in. / 152 cm
Type: Side discharge
Mower Deck Material: 10 gauge / 0.135 in. / 3.4 mm
Mower Drive System: V-belt
PTO:
Type: Electric, 105 lb-ft / 142.4 Nm
Drive: V-belt
Dimensions:
Wheelbase: 49.2 in. / 1250 mm
Overall Length: 76.9 in. / 1953 mm
Width Without Mower: 46.6 in. / 1184 mm
Width With Mower: 48A: 62.8 in. / 1595 mm; 54A: 68.6 in. / 1742 mm; 60A: 73.4 in. / 1864 mm
Width With Mower (Deflector Raised for Storage): 48A: 53.9 in. / 1370 mm; 54A: 59.7 in. / 1517 mm; 60A: 65.6 in. / 1667 mm
Height: ROPS in folded position: 48.6 in. / 1235 mm; ROPS in raised position: 71.1 in. / 1806 mm
Weight: With mower and fuel, 48A: 772 lb / 351 kg; 54A: 780 lb / 355 kg; 60A: 788 lb / 358 kg
Operation:
Rollover Protective Structure (ROPS): Yes
Slope Operating Limit: 15 degrees, 10 degrees with an MCS
Operator Presence System: Yes
Park Brake Interlock: Yes
Operator Video: Yes
Note 1: Mower wash port makes cleaning the deck easier
Note 2: Flip-up foot platform for easy service access
Note 3: 18-position adjustable motion-control levers
Warranty:
4 year or 300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Manuals
Misplace the user manual? No problem! Hartville Hardware is here to help. Below is the user manual for the John Deere Z530M Zero-Turn. Read it before you buy it, or come back and download it if you have any questions after getting your zero-turn home.
John Deere Z530M Manual
Warranty & Certifications
John Deere offers a warranty for all Turf and Utility Equipment that they manufacture.
Each piece of equipment carries a specific warranty including a specific warranty period. Please contact your Hartville Hardware Outdoor Power Sales Team Member for more details.
