Product Description

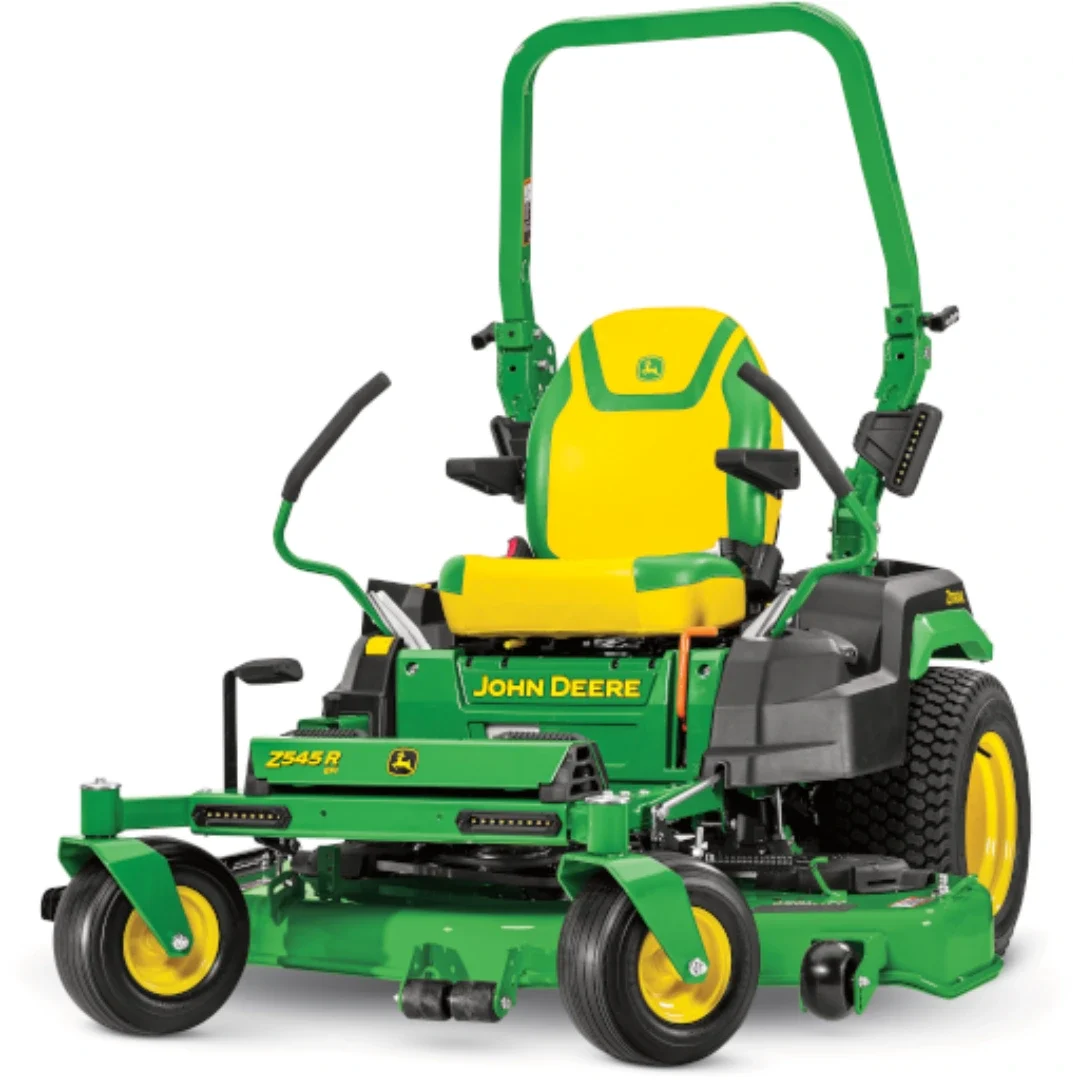

John Deere Z545R ZTrak Mower with 54-In. Deck is engineered for top performance and user comfort. Powered by a 25 hp* (18.6 kW) EFI engine with Electronic Throttle Control, this mower ensures quick starts and consistent, powerful operation. The 22.5-in. seat with armrests and ComfortGlide™ suspension provides an exceptionally comfortable ride, even during extended mowing sessions.
Features:
The Z545R features an operator station with premium controls and an advanced instrument display, including an electric fuel gauge and easy-to-use controls. The flat-top design of the 9-gauge, 0.15-in. (3.8-mm) high-capacity mower decks ensures superior durability and productivity, delivering a clean and precise cut. The 44.2-cu in. (724-cc) V-twin engine, equipped with electronic fuel injection (EFI) and electronic throttle control (ETC), offers top performance and efficiency. The rollover protective structure (ROPS) provides a protective zone around the operator, ensuring safety during operation. Backed by a 4-year/500-hour bumper-to-bumper warranty**, the Z545R offers peace of mind and dependable service for years to come.
View Brochure
Model Number: 5650GX
Additional attachments and accessories sold separately. Model may be pictured with optional features. Additional options may be available to add for an additional price. Looking for John Deere equipment? We are a certified John Deere dealer with all the equipment, accessories, and parts you need to maintain your perfect lawn. Does your mower or tractor need service or repair? Schedule a service appointment, and one of our trained experts will get it running like new. Near downtown Hartville, our location is perfect for Stark, Summit, and Portage County residents in Hartville, Uniontown, Alliance, Mogadore, Jackson Township, and the Canton area including North Canton.
Specifications
Engine:
Power: 25 hp / 18.6 kW
Model Number: HTR EFI/ETC
Displacement: 44.2 cu in. / 724 cc
Cylinders: V-twin
Lubrication: Full pressure with replaceable filter, capacity 2 U.S. qt / 1.9 L
Type: Overhead valve
Battery: 12 V / 300 CCA
Choke/Speed Control: Separate control levers
Cooling Method: Air
Fuel Tank Capacity: 4.5 U.S. gal. / 17 L
Fuel Gauge: Electric gauge and fuel level sight line
Drive Train:
Dual Hydros: Tuff Torq TZT7-M with 1-in. (2.5-cm) axles
Travel Speed:
Forward Speed: 0-9 mph / 0-14.5 km/h
Reverse Speed: 0-4.5 mph / 0-7.2 km/h
Speed and Direction Control: Twin premium levers
Control Adjustment: 2-height/9-fore-aft, 18 positions
Chassis:
Frame: Heavy-duty frame tubing
Primer/Paint: E-coat/powder
Front Caster Tires: 13x6.5-6
Front Caster Bearings: Sealed ball bearings
Drive Tires: 23x10.5-12
Hour Meter: Yes
Service Interval Decal: Yes
Storage Compartment: Yes and covered
Cup Holder: Yes
Maximum Towing Capacity: 250 lb / 113 kg
Seat:
Seat Back Height: High back with armrests and ComfortGlide™, 22.5 in. / 57.1 cm
Fore-Aft Adjustment: While seated, 3 in. / 7.6 cm
Seat Suspension: Two springs and ComfortGlide™
Lift System:
Type: Foot lift
Mower Cut Height: 1-4 in. / 2.5-10.2 cm
Cut Height Increments: 0.25 in. / 0.64 cm
Preset Cut Height: Yes
Mower Deck:
Width of Cut: High capacity mower deck, 48 in. / 122 cm; High capacity mower deck, 54 in. / 137 cm; High capacity mower deck, 60 in. / 152 cm
Type: High-capacity side discharge
Mower Deck Material: 9 gauge / 0.150 in. / 3.8 mm
Mower Drive System: V-belt
PTO:
Type: Electric, 125 lb-ft / 169.5 Nm
Drive: V-belt
Dimensions:
Wheelbase: 49.2 in. / 1250 mm
Overall Length: 81.9 in. / 2080 mm
Width Without Mower: 48.7 in. / 1237 mm
Width With Mower: 48 HC: 62.4 in. / 1585 mm; 54 HC: 68.3 in. / 1735 mm; 60 HC: 73.5 in. / 1867 mm
Width With Mower (Deflector Raised for Storage): 48 HC: 53.6 in. / 1361 mm; 54 HC: 59.6 in. / 1514 mm; 60 HC: 65.6 in. / 1667 mm
Height: ROPS in folded position: 49.2 in. / 1250 mm; ROPS in raised position: 71.7 in. / 1821 mm
Weight: With mower and fuel, 48 HC: 826 lb / 375 kg; 54 HC: 832 lb / 378 kg; 60 HC: 840 lb / 382 kg
Operation:
Rollover Protective Structure (ROPS): Yes
Slope Operating Limit: 15 degrees, 10 degrees with an MCS
Operator Presence System: Yes
Park Brake Interlock: Yes
Operator Video: Yes
Note 1: Mower wash port makes cleaning the deck easier
Note 2: Flip-up foot platform for easy service access
Note 3: 18-position adjustable motion-control levers
Warranty:
4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Manuals
Misplace the user manual? No problem! Hartville Hardware is here to help. Below is the user manual for the John Deere Z545R Zero-Turn. Read it before you buy it, or come back and download it if you have any questions after getting your zero-turn home.
John Deere Z545R Manual
Warranty & Certifications
John Deere offers a warranty for all Turf and Utility Equipment that they manufacture.
Each piece of equipment carries a specific warranty including a specific warranty period. Please contact your Hartville Hardware Outdoor Power Sales Team Member for more details.
