Product Description

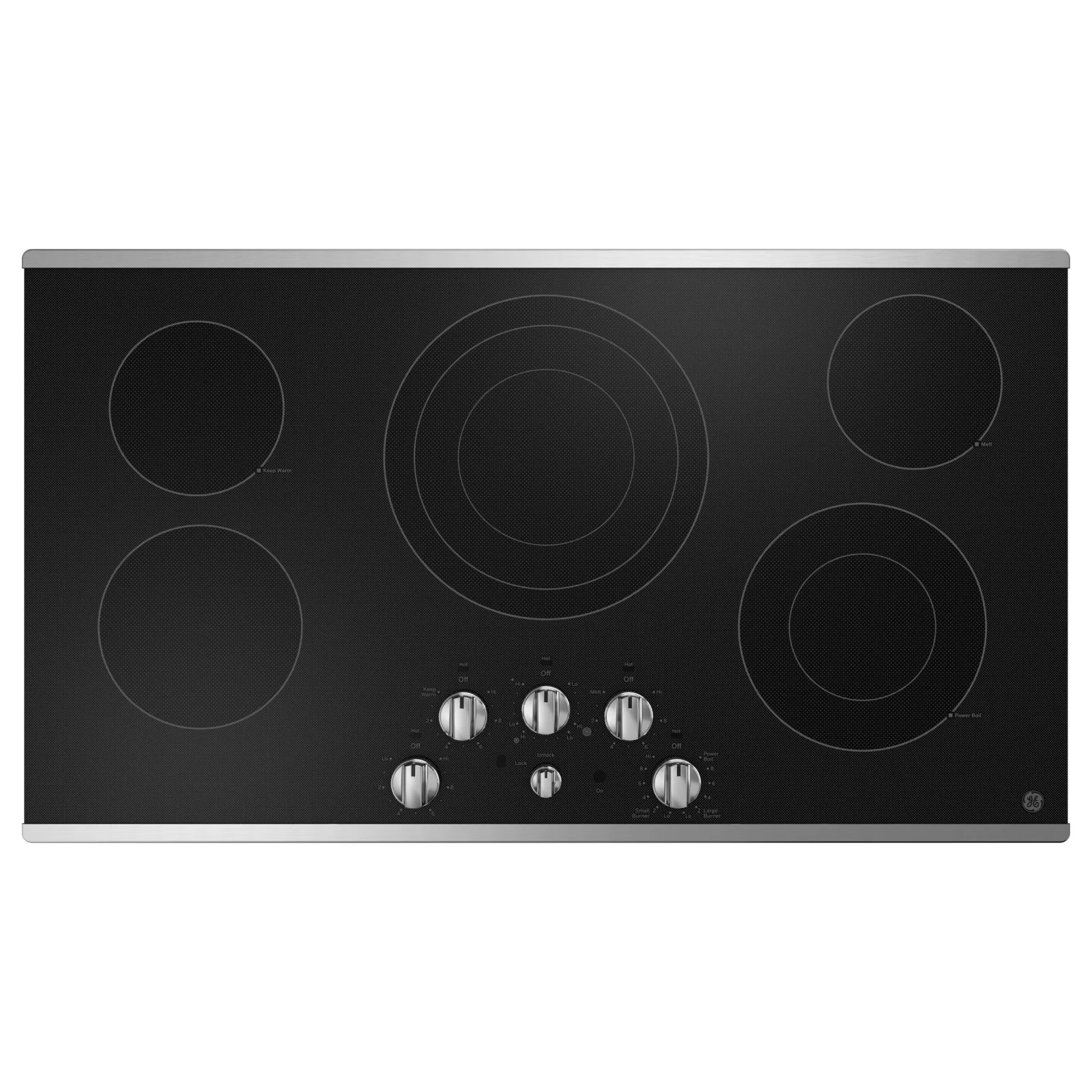

GE® 36" Built-In Knob Control Electric Cooktop
Features
- Easy Clean Surface : A smooth glass surface makes cleaning up messes simpler than ever on this easy clean electric cooktop
- Power Boil on Tri-Ring Element : Cook faster with a variety of different pan sizes on this powerful rapid boil electric cooktop with a 3,000-watt flexible element
- Power Boil Dual-Ring Element (2,400W) : Cook more dishes quickly with an additional 2,400-watt flexible cooking element that rapidly boils water in different pan sizes
- Keep Warm Setting : This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water
- Control Lock : Protect against unintentionally turning your cooktop on with a safety control lock setting
- Hot Surface Indicator Lights : A quick glance is all it takes to know when elements are warm on this electric cooktop with hot surface indicator lights
- Fit Guarantee : This cooktop will fit your existing 36" cut-out or GE Appliances will help pay for modifications up to $100
- Flexible Cooktop : 5 variously sized cooking burners on this flexible electric cooktop let you find the perfect fit for your pans and pots
- Melt Setting : Gently melt delicate foods without scorching thanks to this optimal melt option cooktop
Specifications
| Overall Depth | 21.125 in |
|---|
| Labor Warranty | Limited 1-year entire appliance |
|---|
| App Filter - Fuel Type | Electric |
|---|
| Frame Color / Material | Stainless Steel |
|---|
| Parts Warranty | Limited 1-year entire appliance |
|---|
| App Filter - Cabinet Width | Cooking 36 in. |
|---|
| Melt Setting | Yes |
|---|
| Overall Height | 3.375 in |
|---|
| Cooktop Size | 36 in |
|---|
| Element - Right Rear | 6" 1200W (Melt) |
|---|
| Element - Center | 12"/9"/6" 3000W Tri-ring Power Boil |
|---|
| Cutout Depth (in) | 19 1/8 in |
|---|
| Fuel Type | Electric |
|---|
| Control Knobs | Stainless Steel Appearance |
|---|
| Approximate Shipping Weight | 48 lb |
|---|
| Recommended Circuit Breaker (Amps) at 208V | 40 |
|---|
| Max. Current Draw (Amps) at 208V | 34.1 |
|---|
| Cabinet Width | 36 in |
|---|
| Filler trim kit | JXTR32B (not included) |
|---|
| Power Boil Burner | Yes |
|---|
| Cooktop Type | Radiant Smoothtop |
|---|
| Max. Connected Load (kW) at 240V | 9.4 |
|---|
| Product Type | Cooktop |
|---|
| Max. Connected Load (kW) at 208V | 7.1 |
|---|
| App Filter - Cooktop Type | Radiant Smoothtop |
|---|
| Timer | Yes |
|---|
| Cooktop Burner Type | 5 Ribbon, Smoothtop |
|---|
| Recommended Circuit Breaker (Amps) at 240V | 40 |
|---|
| Element - Left Rear | 6" 1200W |
|---|
| Overall Width | 36.25 in |
|---|
| Indicator Lights | 5 Hot Surface, Red, Surface Element "ON" |
|---|
| Max. Current Draw (Amps) at 240V | 39.2 |
|---|
| Element - Left Front | 7" 1500W (Keep Warm) |
|---|
| Net Weight | 42 lb |
|---|
| App Filter - Control Type | Digital touch |
|---|
| Color Appearance | Stainless Steel on Black |
|---|
| Warranty Notes | See written warranty for full details |
|---|
| Cooktop Control Features | Keep-Warm Setting, Melt Setting |
|---|
| Control Location | Front Center |
|---|
| Cutout Width (in) | 33-7/8 |
|---|
| Control Type | Knob (Infinite switch) |
|---|
| Element - Right Front | 8"/5" 2400W Power Boil |
|---|
| Cooktop Surface | Black Ceramic Glass with Stainless Steel Trim |
|---|
