Product Description

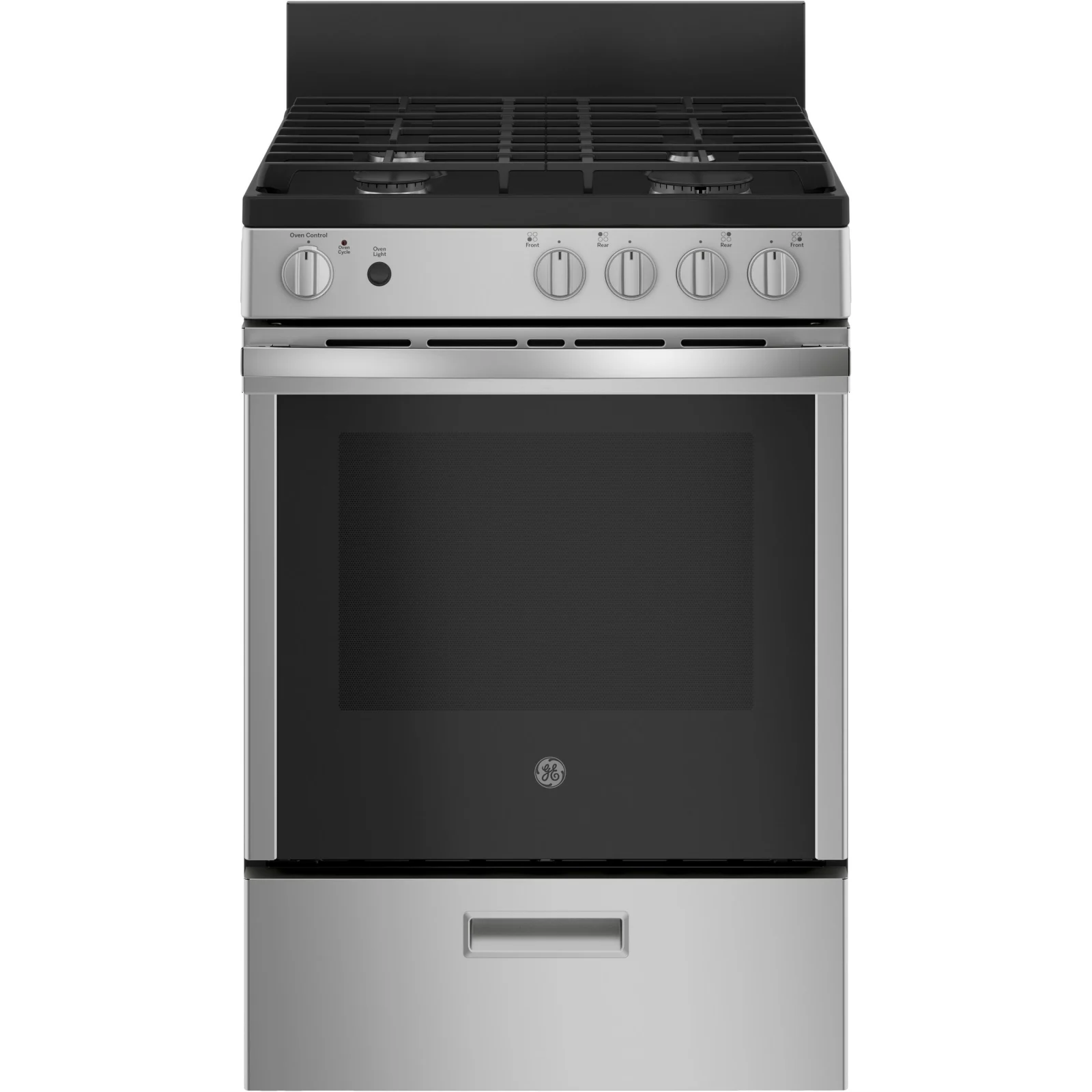

GE® 24" Steam Clean Free-Standing/Slide-in Gas Range
Features
- Front controls : Easily-accessible controls make it simple to control the stovetop and oven
- Edge-to-edge cooktop with heavy-cast grates : Enjoy the versatility of a large cooking surface on the stove that can handle lots of cookware combinations
- In-oven broil : Healthy meals are hassle-free with in-oven broiling
- Sealed cooktop burners : Contains spills and make cleaning quick and easy
- Steam clean : The power of steam eliminates oven scrubbing with just a 30-minute cycle
- Modular backguard : Versatile design gives you the option of a traditional look, or flip down to create a slide-in appearance
Specifications
| App Filter - Cabinet Width | Cooking 24 in. |
|---|
| Handle Color | Stainless Steel |
|---|
| App Filter - Product Type | Ranges Free-Standing Single Oven |
|---|
| Oven Cleaning Type | Standard Clean |
|---|
| Color Appearance | Stainless Steel/Black |
|---|
| Configuration | Range with In Oven Broil |
|---|
| Control Location | Front |
|---|
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 13.0 |
|---|
| App Filter - Control Type | Rotary knobs |
|---|
| Burner - Right Rear | 5,000 BTU |
|---|
| Parts Warranty | Limited 1-year entire appliance |
|---|
| Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
|---|
| Control Knobs | Stainless Steel |
|---|
| Oven Rack Positions (Single or Upper/Lower) | 4 |
|---|
| Net Weight | 107 lb |
|---|
| Leveling System | 4 Leveling Legs |
|---|
| Volts/Hertz/Amps | 120V ; 60Hz ; 15A |
|---|
| Valves (Degree of Turn) | 270 |
|---|
| Top Burner BTU Rating - LP (000's BTU's) | (1) 15.0; (2) 9.5; (1) 5.0 |
|---|
| App Filter - Fuel Type | Gas |
|---|
| Overall Depth | 28.125 in |
|---|
| Optional Backguard | Included |
|---|
| Handle | Designer Style |
|---|
| Cooktop Type | Standard Grates |
|---|
| Oven Rack Features | 2 Flat Nickel Racks |
|---|
| Warranty Notes | See written warranty for full details |
|---|
| Cooktop Surface | Porcelain-Enamel |
|---|
| Cooktop Burner Grate Material | Cast-Iron |
|---|
| Fuel Type | Natural Gas (factory set) |
|---|
| Door Swing | Pull-Down |
|---|
| Product Type | Free-Standing Single Oven |
|---|
| Oven Door Features | Oven Window |
|---|
| Depth with Door Open | 45.625 in |
|---|
| Burner - Left Rear | 9,500 BTU |
|---|
| Oven Cooking Modes | Bake, Broil |
|---|
| Bake/Broiler BTU Rating - LP (000's BTU's) | 13.0 |
|---|
| Oven Interior Dimensions (W x H x D) (in.) | 19 x 15-3/8 x 17-1/8 |
|---|
| App Filter - Cooking Technology | Traditional |
|---|
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (2) 9.5; (1) 5.0 |
|---|
| Burner - Right Front | 15,000 BTU |
|---|
| Cooking Technology | Traditional |
|---|
| Total Capacity (cubic feet) | 2.9 cu ft |
|---|
| Labor Warranty | Limited 1-year entire appliance |
|---|
| Depth Without Handle | 25.875 in |
|---|
| App Filter - Cooktop Type | Standard Grates |
|---|
| OU Certified | No |
|---|
| Drawer Type | Lower Storage Drawer |
|---|
| Cooktop Burner Type | Sealed |
|---|
| Ignition System | Electronic |
|---|
| LP Conversion Kit | Included |
|---|
| Approximate Shipping Weight | 120 lb |
|---|
| Oven Interior | 1 Incandescent Light, Blue Gray |
|---|
| App Filter - Cleaning Type | Manual |
|---|
| App Filter - Convection | No |
|---|
| Overall Width | 24 in |
|---|
| Burner - Left Front | 9,500 BTU |
|---|
| Sabbath Mode | Yes |
|---|
| Overall Height | 41 in |
|---|
| Cabinet Width | 24 in |
|---|
