Product Description

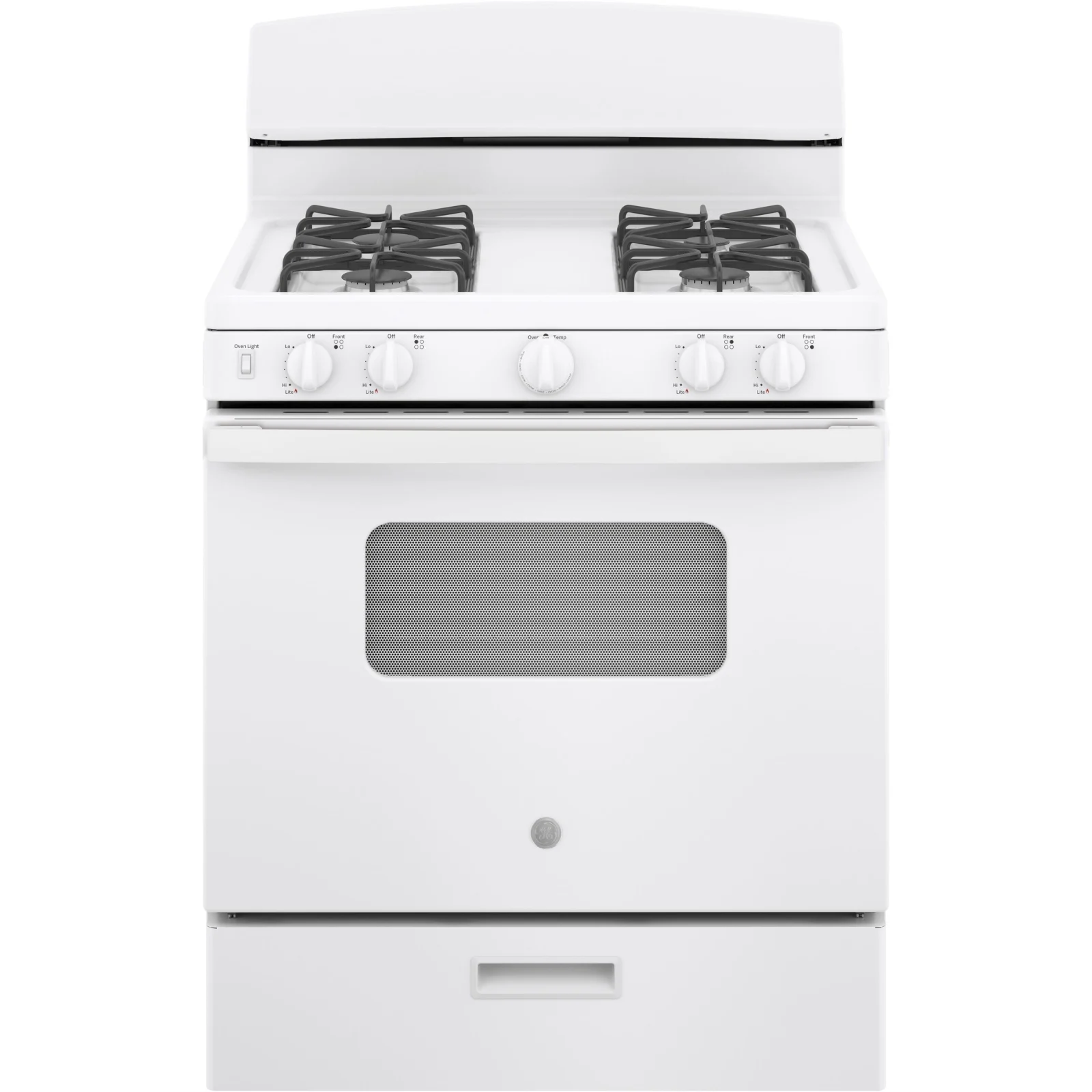

GE® 30" Free-Standing Front Control Gas Range
Features
- Front controls : Easily-accessible controls make it simple to control the stovetop and oven
- 4.8 cu. ft. oven capacity : Enough room to cook an entire meal at once
- Sealed cooktop burners : Contains spills and make cleaning quick and easy
- Heavy-duty grates : Durable grates are easy to clean and can hold a wide variety of cookware on the stove
- Broil option : A versatile heating element allows for more cooking options in the oven
- Standard clean oven : Smooth surface makes cleaning by hand easier
Specifications
| Labor Warranty | Limited 1-year entire appliance |
|---|
| Oven Rack Features | 2 Flat Nickel Racks |
|---|
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
|---|
| Cooktop Burner Type | Sealed |
|---|
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake / 18.0 Broiler |
|---|
| App Filter - Cleaning Type | Manual |
|---|
| Cooktop Burner Grate Material | Heavy Steel |
|---|
| Cooking Technology | Traditional |
|---|
| Burner - Right Front | 13,000 BTU |
|---|
| Product Type | Free-Standing Single Oven |
|---|
| Drawer Type | Broiler |
|---|
| Burner - Left Front | 9,500 BTU |
|---|
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
|---|
| Top Burner BTU Rating - LP (000's BTU's) | (2) 9.5; (1) 13.0; (1) 5.0 |
|---|
| Depth with Door Open | 46.25 in |
|---|
| Burner - Left Rear | 9,500 BTU |
|---|
| Parts Warranty | Limited 1-year entire appliance |
|---|
| Cooktop Surface | Porcelain-Enamel |
|---|
| Overall Depth | 28.75 in |
|---|
| Oven Rack Positions (Single or Upper/Lower) | 6 |
|---|
| App Filter - Product Type | Ranges Free-Standing Single Oven |
|---|
| App Filter - Drawer Type | Broiler |
|---|
| Control Location | Front |
|---|
| App Filter - Fuel Type | Gas |
|---|
| App Filter - Cooktop Type | Standard Grates |
|---|
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 16.0 Broiler |
|---|
| App Filter - Convection | No |
|---|
| Cooktop Type | Standard Grates |
|---|
| App Filter - Voltage | 120V |
|---|
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 13.0; (2) 9.5, (1) 5.0 |
|---|
| Color Appearance | White |
|---|
| Overall Width | 30 in |
|---|
| Oven Door Features | Oven Window |
|---|
| Depth Without Handle | 26.25 in |
|---|
| Control Knobs | Gloss White |
|---|
| Total Capacity (cubic feet) | 4.8 cu ft |
|---|
| Sabbath Mode | Yes |
|---|
| Configuration | Range with Broiler Drawer |
|---|
| Warranty Notes | See written warranty for full details |
|---|
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
|---|
| App Filter - Control Type | Rotary knobs |
|---|
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
|---|
| OU Certified | No |
|---|
| Oven Cleaning Type | Standard Clean |
|---|
| Fuel Type | Natural Gas (factory set) |
|---|
| Net Weight | 145 lb |
|---|
| Cabinet Width | 30 in |
|---|
| Slide - Out Broiler Drawer | Drop Down Door |
|---|
| Cooktop Burner Grate Color | Black Gloss |
|---|
| App Filter - Cooking Technology | Traditional |
|---|
| Ignition System | Electronic |
|---|
| Overall Height | 46.25 in |
|---|
| Valves (Degree of Turn) | 140 |
|---|
| Oven Interior | 1 Incandescent Light |
|---|
| Burner - Right Rear | 5,000 BTU Precise Simmer |
|---|
| Approximate Shipping Weight | 165 lb |
|---|
| Handle | Designer Style |
|---|
| LP Conversion Kit | Included |
|---|
