Product Description

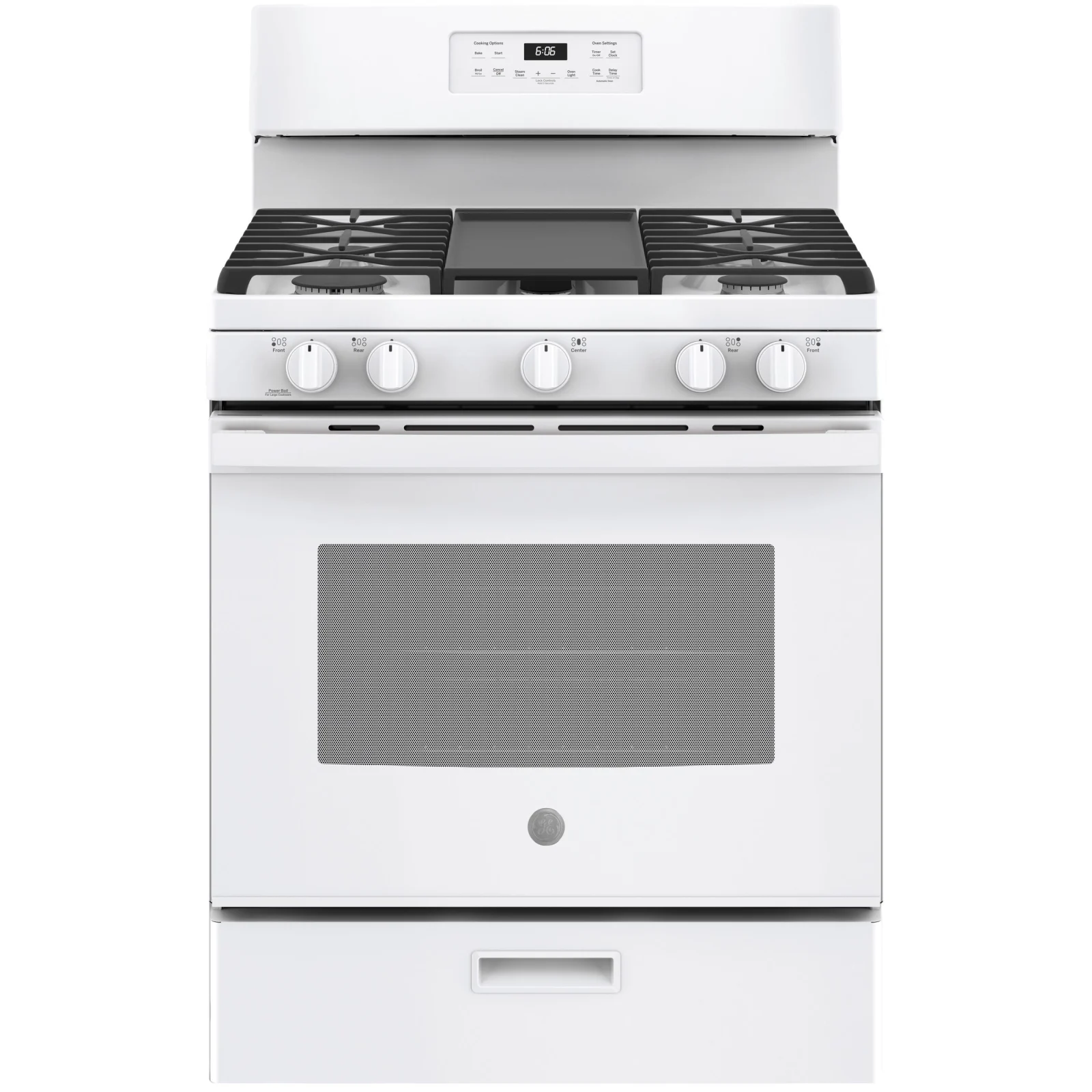

GE® 30" Free-Standing Gas Range
Features
- Edge-to-edge cooktop : A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner
- Extra-large integrated griddle : Cook up to six grilled cheeses at once on the industry's largest integrated griddle
- 15,000 BTU Power Boil Burner : Delivers high heat for fast boiling
- Center oval burner : Large oval fifth burner is ideal for griddle cooking
- Steam clean : Save time and effort by steam-cleaning the oven after cooking. No special water, kits or extra steps required.
- Precise Simmer burner : Delicate foods don't burn with low, even heat
- Heavy duty, dishwasher-safe grates : Easily and safely clean grates in the dishwasher
- 5.0 cu. ft. oven capacity : Cook more dishes at once
- Sealed cooktop burners : Contains spills and make cleaning quick and easy
- Deep-recessed cooktop : Contains spills for quick and easy cleaning
- Flexible broiling : Broil in any size cookware with a flexible broiling element that can be set to hi or low based on your broiling needs
- Electronic clock and timer : Help cooks coordinate meal preparation and cooking
Specifications
| Oven Door Features | Big View Oven Window |
|---|
| Cooktop Burner Grate Features | Continuous Grates |
|---|
| Drawer Type | Broiler |
|---|
| LP Conversion Kit | Included |
|---|
| Griddle Accessory | Integrated Griddle (Included) |
|---|
| Oven Rack Features | 2 Flat Nickel Racks |
|---|
| Product Type | Free-Standing Single Oven |
|---|
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 10.0 |
|---|
| App Filter - Fuel Type | Gas |
|---|
| Cooktop Burner Grate Color | Matte Black |
|---|
| Handle | Designer Style |
|---|
| Overall Height | 47.25 in |
|---|
| Overall Depth | 28.75 in |
|---|
| Burner - Left Front | 15,000 BTU |
|---|
| Center Grate | Optional - JXGRATE1 |
|---|
| Cooktop Type | Continuous Grates with Griddle |
|---|
| App Filter - Cleaning Type | Steam and Manual |
|---|
| Top Burner BTU Rating - LP (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 8.0 |
|---|
| Burner - Left Rear | 5,000 BTU Precise Simmer |
|---|
| Overall Width | 30 in |
|---|
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
|---|
| Oven Rack Positions (Single or Upper/Lower) | 6 |
|---|
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake / 18.0 Broiler |
|---|
| Oven Cleaning Type | Steam Clean |
|---|
| App Filter - Cooktop Type | Continuous Grates with Griddle |
|---|
| Burner - Center | 10,000 BTU Oval |
|---|
| Control Location | Front |
|---|
| App Filter - Edge-to-Edge Cooktop | Yes |
|---|
| Interior Oven Light | 1 Incandescent |
|---|
| Griddle | Integrated (Included) |
|---|
| App Filter - Cooking Technology | Traditional |
|---|
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
|---|
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
|---|
| Depth Without Handle | 26.25 in |
|---|
| Oven Control Features | Audible Preheat Signal, Auto Oven Shut-Off, Delay Bake Option, Electronic Clock and Timer, Hi / Low Broil, Oven Control Lock Capability |
|---|
| Fuel Type | Natural Gas (factory set) |
|---|
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
|---|
| Control Knobs | Gloss White |
|---|
| Cooking Technology | Traditional |
|---|
| Control Type | Electronic Touch |
|---|
| Cooktop Surface | Edge-to-Edge, One-Piece Upswept, Porcelain-Enamel, White |
|---|
| Cooktop Burner Grate Material | Heavy Cast Iron |
|---|
| Net Weight | 150 lb |
|---|
| Configuration | Range with Broiler Drawer |
|---|
| Parts Warranty | Limited 1-year entire appliance |
|---|
| Approximate Shipping Weight | 172 lb |
|---|
| App Filter - Drawer Type | Broiler |
|---|
| Burner - Right Front | 9,500 BTU |
|---|
| Total Capacity (cubic feet) | 5 cu ft |
|---|
| App Filter - Control Type | Electronic touchpad |
|---|
| Depth with Door Open | 46.25 in |
|---|
| Labor Warranty | Limited 1-year entire appliance |
|---|
| Warranty Notes | See written warranty for full details |
|---|
| Burner - Right Rear | 12,000 BTU |
|---|
| App Filter - Product Type | Ranges Free-Standing Single Oven |
|---|
| Cabinet Width | 30 in |
|---|
| Cooktop Burner Type | Sealed |
|---|
| App Filter - Voltage | 120V |
|---|
| OU Certified | Embedded OU/CRC Enhanced Shabbos Mode |
|---|
| App Filter - Convection | No |
|---|
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 16.0 Broiler |
|---|
| Sabbath Mode | Yes |
|---|
| Color Appearance | White |
|---|
| Ignition System | Electronic |
|---|
