Product Description

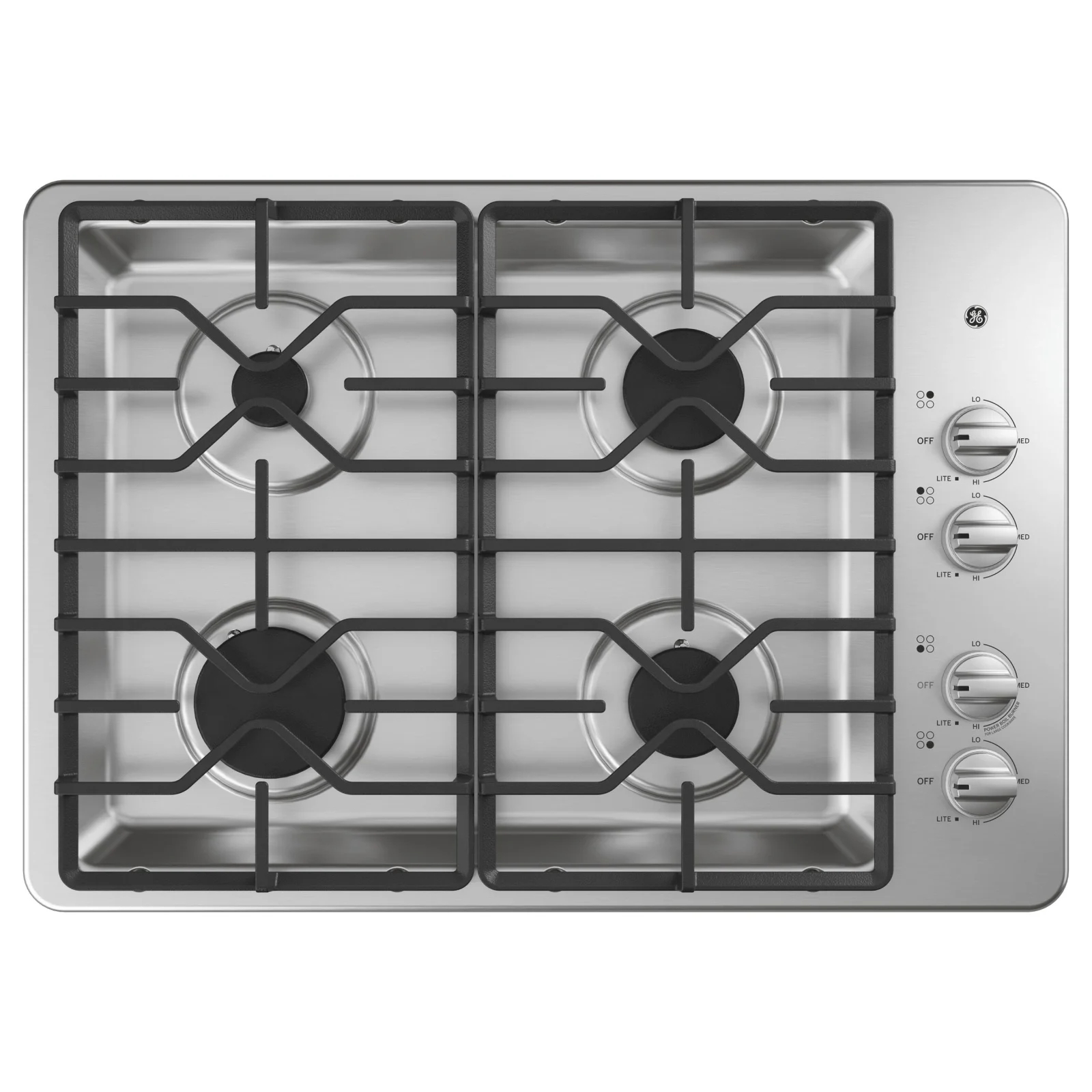

GE® 30" Built-In Gas Cooktop with Dishwasher-Safe Grates
Features
- Dishwasher-Safe Grates : Heavy-duty grates are easy to clean in the dishwasher
- Spend Less Time Cleaning Up : Sealed cooktop burners contain spills and make cleaning quick and easy
- Designed for Easy Cleaning : Recessed surface helps contain spills and make cleaning easy
- 15,000 BTU Power Boil Burner : Delivers high heat for fast boiling
- Precise Simmer Burner : Protect delicate foods with low, even heating
- MAX Burner System : Delivers the same maximum BTU power to propane and natural gas cooktops
- Fit Guarantee : Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
Specifications
| App Filter - Control Type | Rotary knobs |
|---|
| Warranty Notes | See written warranty for full details |
|---|
| Overall Width | 30 in |
|---|
| Burner - Right Rear | 12,000 BTU |
|---|
| Burner - Left Front | 15,000 BTU Power Boil |
|---|
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
|---|
| Valves (Degree of Turn) | 270 |
|---|
| Parts Warranty | Limited 1-year entire appliance |
|---|
| Overall Height | 4.75 in |
|---|
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
|---|
| Cutout Width (in) | 28-1/2 |
|---|
| Color Appearance | Stainless Steel |
|---|
| Net Weight | 39 lb |
|---|
| Labor Warranty | Limited 1-year entire appliance |
|---|
| Cooktop Burner Grate Color | Matte Black |
|---|
| Cooktop Surface | Deep Stainless Steel |
|---|
| App Filter - Fuel Type | Gas |
|---|
| Control Type | Knob |
|---|
| Burner - Left Rear | 5,000 BTU |
|---|
| Cooktop Burner Grate Features | Continuous Grates, Dishwasher Safe |
|---|
| Power Boil Burner | Yes |
|---|
| Ignition System | Electronic |
|---|
| Cooktop Burner Type | 4 Sealed |
|---|
| Cabinet Width | 30 in |
|---|
| Fuel Type | Natural Gas (factory set) |
|---|
| Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0 |
|---|
| Control Location | Right Side |
|---|
| Cooktop Burner Grate Material | Standard Cast |
|---|
| Burner BTU Ratings (000's/BTU) - LP Gas | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0 |
|---|
| App Filter - Cooktop Type | Continuous Grates |
|---|
| Cooktop Type | Continuous Grates |
|---|
| Burner - Right Front | 9,500 BTU |
|---|
| Cutout Depth (in) | 19 5/8 in |
|---|
| Stainless Steel Cleaner | Included |
|---|
| Control Knobs | Dishwasher Safe, Stainless Steel Appearance |
|---|
| Overall Depth | 21 in |
|---|
| Approximate Shipping Weight | 44 lb |
|---|
