Product Description

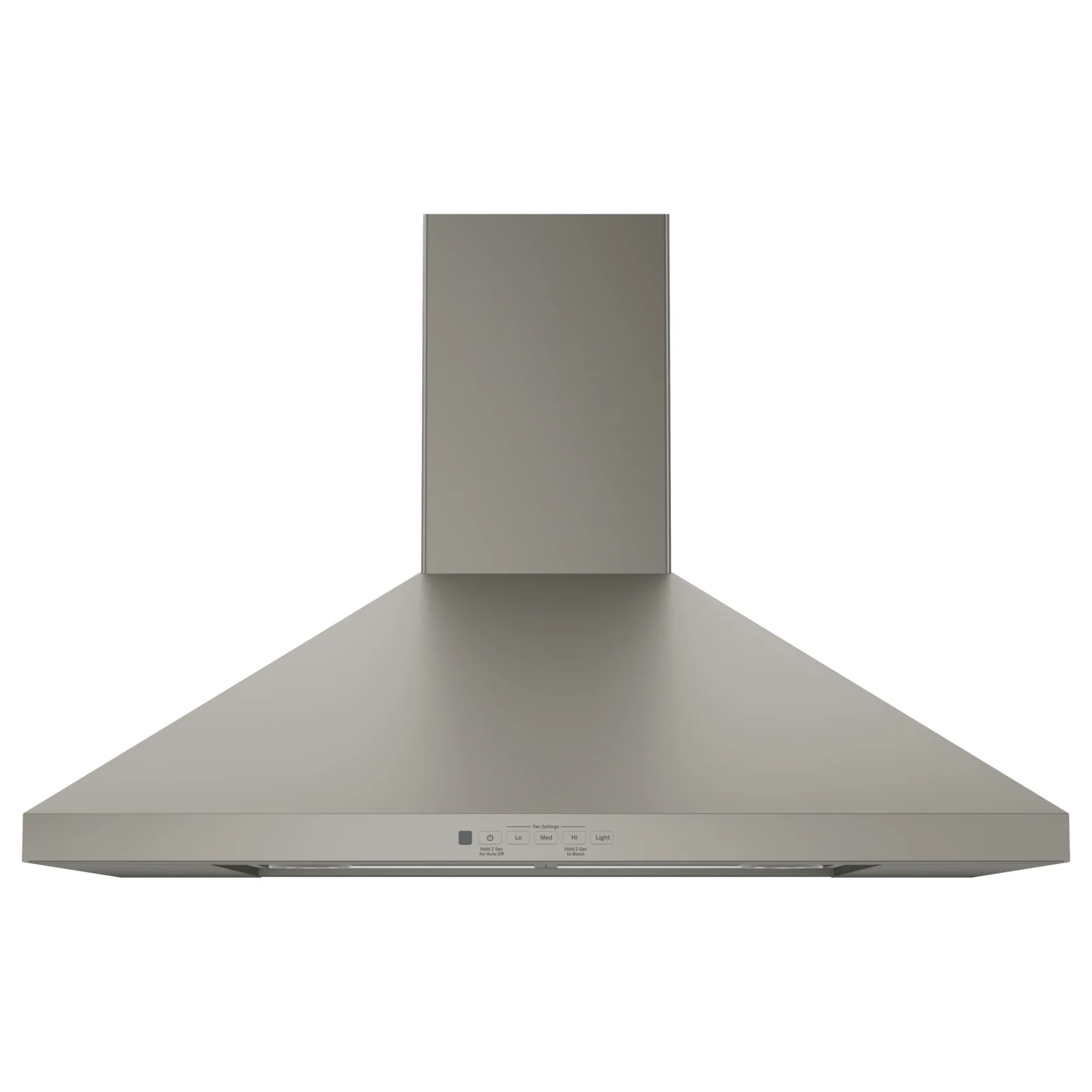

GE® 30" Wall-Mount Pyramid Chimney Hood
Features
- Easy do-it-yourself Installation : Can be installed either as a recirculating or external-venting hood
- 350-CFM venting system with boost : Effectively remove smoke, grease, odor and moisture
- Electronic backlit controls : Add a sophisticated look with this up-front, easy-to-use display
- Dual halogen cooktop lighting : Enjoy better visibility with a brightly lit cooktop and surrounding surface
- Night light : Keep a dim light on for visibility at all hours
- Convertible venting options : Select recirculating or external venting
- Optional remote control (JXRC70) : Control your ventilation lighting and fan speed from anywhere in the kitchen
- Auto-off : Set the vent hood to automatically shut off after 15 minutes
- Dishwasher safe filter : Filters grease and is dishwasher-safe
Specifications
| Net Weight | 43 lb |
|---|
| Cabinet Width | 30 in |
|---|
| Approximate Shipping Weight | 61 lb |
|---|
| Blower / Light Switch Color | Backlit |
|---|
| App Filter - Hood Type | Designer (includes "canopy" and "chimney") |
|---|
| Material | Metal |
|---|
| Removable Grease Filter(s) | Yes |
|---|
| Warranty Notes | See written warranty for full details |
|---|
| Filter Cleaning | Dishwasher Safe |
|---|
| 6" Round Duct | Yes |
|---|
| Product Type | Designer Hood |
|---|
| Labor Warranty | Limited 1-year entire appliance |
|---|
| App Filter - Venting Type | Convertible |
|---|
| Light Controls | On/Off/Night |
|---|
| App Filter - Cabinet Width | Vent 30 in. (Standard) |
|---|
| CFM/ Sones Rating | 150/1.0 (Working Speed), 340/5.1 (High Speed), 350/6.6 (Boost Speed) |
|---|
| Ducting | Vertical Only |
|---|
| Control Location | Front |
|---|
| Exhaust Options | Recirculating, Vented to Outside |
|---|
| Overall Height | 9.875 in |
|---|
| Cooktop Lighting | 1, Halogen |
|---|
| Color Appearance | Fingerprint Resistant Slate |
|---|
| Venting Type | Convertible |
|---|
| Overall Depth | 18.5 in |
|---|
| Fan Speed Control | 4-Speed |
|---|
| Parts Warranty | Limited 1-year entire appliance |
|---|
| Overall Width | 30 in |
|---|
| Max CFM | 350 |
|---|
| Optional Accessories | JXCF72 - Charcoal Filter, UXRC70 - Remote Control |
|---|
| Amp Rating at 120V | 2.5 |
|---|
| Control Type | Backlit |
|---|
