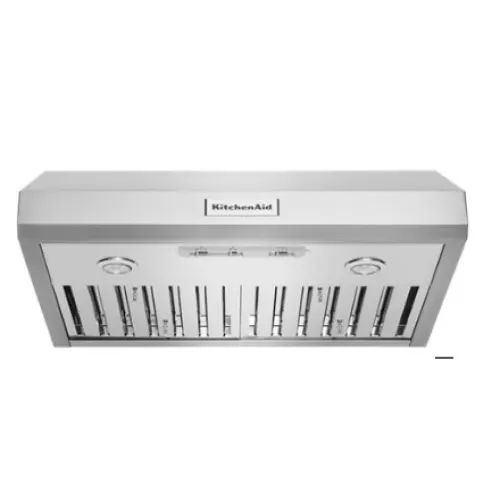

Product Description
Equip your kitchen with a powerful 30-inch 585 CFM motor class under-cabinet range hood system designed to pair with 30-inch KitchenAid® Commercial-Style Ranges and Rangetops. A 65,000 BTU rating allows this vent hood to keep up with high-heat cooking on multiple burners. Three fan speeds let you choose the right setting for cooking adventures from simmering to searing.
Features
585 CFM Motor Class Ventilation System : Equips your kitchen with the powerful ventilation necessary to match the high heat of commercial-style ranges and rangetops with comparable width and total burner outputs.
Three-Speed Fan :
Features low, medium and high settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.
65,000 BTU Rating : Pairs with any 30-inch and 36-inch range or cooktop with a total burner output up to 65,000 BTU.
Automatic Turn On : Provides intuitive assistance to help keep smoke and steam from building up in the kitchen. If the hood's sensor detects high-heat cooking on multiple burners while the controls are off, it will automatically turn on the fan and set it to Power Boost.
Two LED Lights with Night Light Setting :
Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.
Removable Stainless Steel Baffle Filters :
Help capture the grease, steam and odors for all your cooking needs. The stainless steel design adds to the hood's bold commercial-style look and the filters are removable for easy cleaning with soap and water.
Specifications
| Canopy Height (IN,inches) | 10 |
|---|
| Cutout Depth(IN,inches) | 13 |
|---|
| Cutout Height(IN,inches) | 10 |
|---|
| Cutout Width(IN,inches) | 30 |
|---|
| Depth(IN,inches) | 23 |
|---|
| Maximum Height(IN,inches) | 36 |
|---|
| Net Weight(LB,pounds) | 41 |
|---|
| Width(IN,inches) | 30 |
|---|
| Hood Type | Under Cabinet |
|---|
| Size (in.) | 30 |
|---|
| Control Location | Hidden |
|---|
| Control Type | Slide Controls |
|---|
| Lighting Control Type | Slider |
|---|
| Night Light | No |
|---|
| Number of Task Light Settings | 1 |
|---|
| Task Light Type | LED |
|---|
| Task Lighting | Yes |
|---|
| Auto Function | Auto On |
|---|
| Blower Motor | NA |
|---|
| Blower Type | Centrifugal |
|---|
| CFM Motor Class | 585 |
|---|
| Duct Direction | Vertical or Horizontal |
|---|
| Duct Length | 13.000 |
|---|
| Duct Outlet Size (in.) | 3 1/4 x 10 |
|---|
| Duct Type | Rectangular |
|---|
| Exhaust Vent Location | Rear,Top |
|---|
| Filters | Grease Filters |
|---|
| Number of Speeds | 3 |
|---|
| Sound Max Speed (Sones) | 12.0 |
|---|
| Vent Fan Location | Side |
|---|
| Vent Material | Aluminum |
|---|
| Venting | Exterior |
|---|
| Energy Star® Qualified | No |
|---|
| Kosher Consumer Friendly | No |
|---|
| Prop 65 | Standard |
|---|
| UL | Yes |
|---|
| Gross Weight(LB,pounds) | 60 |
|---|
| Amps | 3.75 |
|---|
| Hz | 60 |
|---|
| Power Cord Included | No |
|---|
| Volts | 120 |
|---|
| Watts | 450 |
|---|
| Accessory Relationships | Yes |
|---|
| ProductOutletCategories | Cooking |
|---|
| Home Delivery | Yes |
|---|
| Style | Hoods |
|---|
| Will Call | Yes |
|---|
| Carton Depth | 15 inch |
|---|
| Carton Height | 33 1/2 inch |
|---|
| Carton Width | 26 15/16 inch |
|---|
| Cutout Depth (in) | 13 inch |
|---|
| Cutout Height (in) | 10 inch |
|---|
| Cutout Width (in) | 30 inch |
|---|
| Depth | 23 inch |
|---|
| Width | 30 inch |
|---|
| Gross Weight | 60 inch |
|---|
| Maximum Height | 36 inch |
|---|
| Minimum Height | 24 inch |
|---|
| Net Weight | 40.6 inch |
|---|
