Product Description

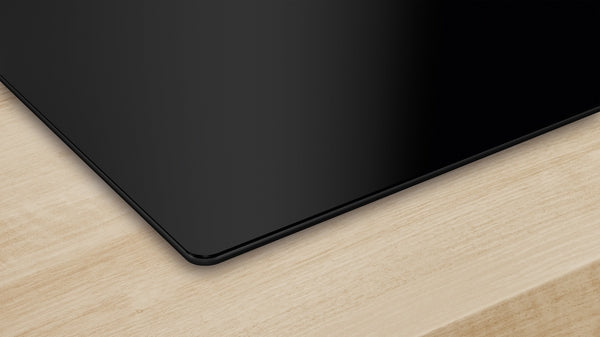

Design Black-glass Seamless Design Cooktop Design Coordinates with Bosch Ovens and Ventilation Performance Dual Elements Offer the Capability to use Multiple Pan Sizes Bridge Element Accomodates Oblong or Oversized Pans and Griddles SpeedBoost® - Delivers More Power to Speed Up the Cooking Process Convenience PreciseSelect® - Direct Cooking Level Selection - 17 Settings for Precise Control Use the Kitchen Timer to Measure Cooking Time or as a Reminder CleanLock - Prevents Unwanted Changing of Setting While Cleaning Spills Safety Two-Level Heat Indicator - Warns if Cooktop is Warm or Hot ChildLock - Prevents the Cooktop from Being Accidentally Switched On, Locks Temperature Settings if in Use
Features
- Sleek in Design, and Features SpeedBoost® Which Adds Even More Power to the Cooking Process
- 17 Power Levels : offers a variety of cooking options with different heat levels for every need.
- Power Boost : up to 20% more energy when cooking on your electric hob.
- Infinite Temperature Controls for Precision Cooking
- Count-Up Timer : allows you to accurately time each step of your recipe.
- Bridge Element : combines two cooking areas to accommodate larger cookware.
Specifications
| Dimension of the heating element | 180 |
|---|
| Net weight | 30.000 |
|---|
| SKU | NET8669UC |
|---|
| Number of electric warming zones | 0 |
|---|
| Power of 5th heating element (kW) | 1.2 |
|---|
| Depth of the packed product (mm) | 1100 |
|---|
| Minimum distance from counter front | 2 1/4 |
|---|
| Type of regulation | Stepless energy regulated |
|---|
| Product group | Hob |
|---|
| Gross weight | 40.000 |
|---|
| Minimum width for installation (mm) | 883 |
|---|
| Energy input | Electric |
|---|
| Power on indicator | Yes |
|---|
| Optional accessories | HEZ390210, HEZ390220 |
|---|
| Location of 4th heating element | middle back |
|---|
| Plate on indicator | 1 |
|---|
| Width of the packed product (mm) | 610 |
|---|
| Brand | Bosch |
|---|
| Dimension of 3rd heating element (mm) | 180 |
|---|
| Product name / series name | Cooking zone ceramic |
|---|
| Type of heating element | Radiant heating |
|---|
| Height of the packed product (mm) | 210 |
|---|
| dishwasher safe pan support | No |
|---|
| Type of 3rd heating element | Radiant heating |
|---|
| Main on/off switch | Yes |
|---|
| Power of the heating element | 1.8 |
|---|
| Location of 6th heating element | center right |
|---|
| Type of frame | Frameless |
|---|
| Dimension of 1st heating element | 7" |
|---|
| Additional Image 3 | https |
|---|
| Number of induction elements | 0 |
|---|
| Timer | Yes |
|---|
| Dimension of 3rd heating element | 7" |
|---|
| Maximum width for installation (mm) | 886 |
|---|
| Product packaging dimensions (HxWxD) | 7 7/8" x 43 5/16" x 24" |
|---|
| Type of lid | Without |
|---|
| Net weight (kg) | 13.8 |
|---|
| Location of the heating element | front left |
|---|
| UPC code | 825225960201 |
|---|
| Number of electric elements | 0 |
|---|
| Minimum distance from rear wall | 2 |
|---|
| Ignition system | No |
|---|
| Additional Image 6 | https |
|---|
| Type of control | DirectSelect 1.0 (Timer);Front |
|---|
| Additional Image 5 | https |
|---|
| Minimum height for installation (mm) | 505 |
|---|
| Dimension of 5th heating element | 6" |
|---|
| Highlights | 17 power levels |
|---|
| Number of electric cooking zones | 5 |
|---|
| Volts (V) | 240/208 |
|---|
| Dimension of 5th heating element (mm) | 140 |
|---|
| Construction type | Built-in |
|---|
| Type of 5th heating element | Radiant heating |
|---|
| Required cutout size (HxWxD) | 4 " x 34 3/4 " x 19 7/8 " |
|---|
| Type of control | Electronic |
|---|
| Basic surface material | Ceramic |
|---|
| Overall appliance dimensions (HxWxD) | 1/4"+4 " x 37" x 21 1/4" |
|---|
| Plug type | No Plug |
|---|
| Current (A) | 50/40 |
|---|
| Location of 5th heating element | back right |
|---|
| Location of 3rd heating element | back left |
|---|
| Maximum height for installation (mm) | 508 |
|---|
| Power of 3rd heating element (kW) | 1.8 |
|---|
| Power cord length (cm) | 96.0 |
|---|
| EAN code | 4242005178971 |
|---|
| Location of control panel | Front |
|---|
| Safety device | Auto Safety Shutoff;Childproof Lock;Panel Lock |
|---|
| Number of halogen elements | 0 |
|---|
| Sealed Burners | No |
|---|
| Frequency (Hz) | 60 |
|---|
| Number of radiant elements | 5 |
|---|
| Location of 2nd heating element | center left |
|---|
| Depth for installation (mm) | 100 |
|---|
| Burners with booster | Rear middle |
|---|
| Number of gas burners | 0 |
|---|
| Gross weight (kg) | 18.1 |
|---|
| Automatic programmes | No |
|---|
| Additional Image 4 | https |
|---|
| Additional Image 2 | https |
|---|
| Internal article number | NET8669UC |
|---|
| Additional Image 1 | https |
|---|
| Total number of cooktop burners | 5 |
|---|
| Additional Image 7 | https |
|---|
Manuals
No Manuals available for this product
Warranty & Certifications
No Manuals available for this product
