Product Description

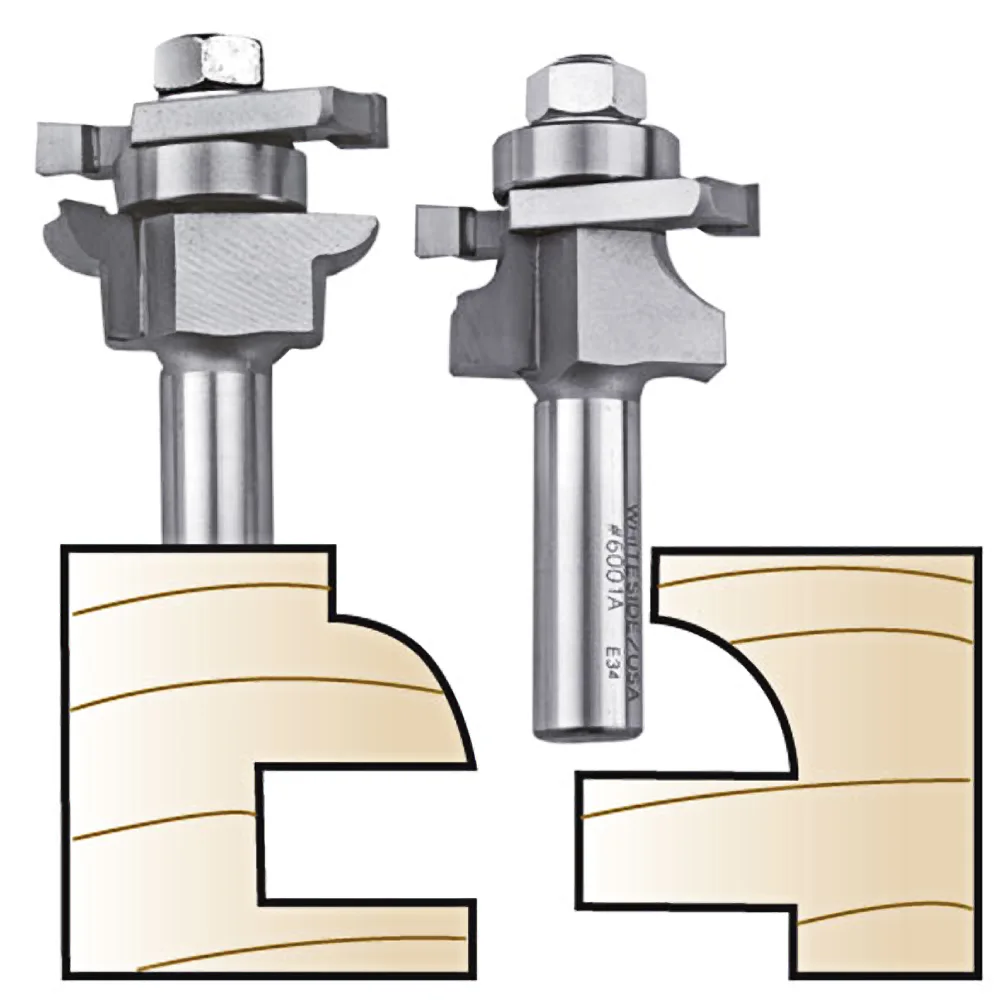

Whiteside 6001X Plywood Panel Round Stile & Rail Router Bit Set. Make full size Round pattern Stile & Rail joints on your router table. Switch from rail cutting to stile cutting by simply changing the bit. The interlocking design and the groove for accepting the raised panel are all cut in a single pass. Bearing guides automatically control cutting depth, and allow following rounded, arched, and other special door frame designs. This set is designed for the construction of stiles and rails for frames using undersized 1/4" plywood panels (actual thickness they will receive is 7/32" or 7.5mm). Set works with stock from 5/8" to 7/8" thick. These bits come with B5 (5/16" ID x 7/8" OD) bearings. 2 wing. Carbide tipped. Whiteside Machine Company - Claremont, North Carolina.
Specifications
SH = Shank Size. RW = Reveal Width. CL = Cutting Length. LD = Large Diameter.
1/2" SH x 1/4" RW x 1" CL x 1-5/8" LD
Model: 6001X
