Product Description
Performance 6 gas burners 2 dual flame ring power burners OptiSim® burner Convenience Heavy-duty grates can be cleaned in dishwasher Full coverage, continuous surface grates allow pots and pans to move safely across the rangetop Push-to-turn knobs with electronic ignition LP conversion kit included for conversion from natural gas to liquid propane Design Superior quality stainless steel exterior finish Black porcelain-enameled cooking surface Bold, distinct bullnose Upfront, heavy-duty metal knobs provide precise control Rangetop design coordinates with Bosch ovens and ventilation Safety Flame supervision device on each burner
Features

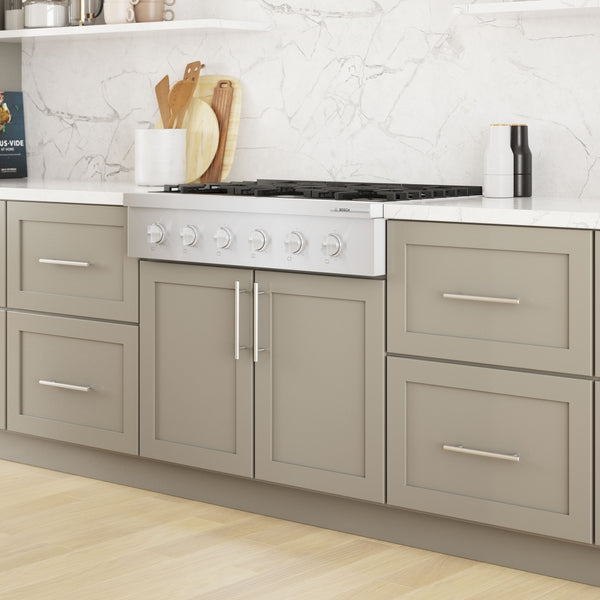

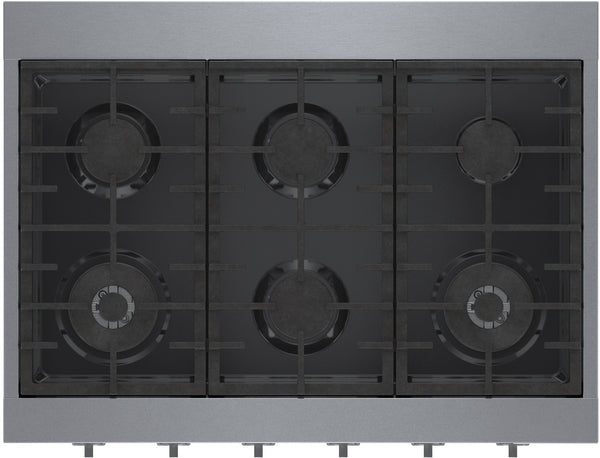

- The six burner 36" stainless steel slide-in gas rangetop with an industrial-inspired style is designed to perform.
- Dual-Flame Power Burner : 2 rings of heat let you go from simmer to a high powered boil with ease
- OptiSim® Burner : the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.
- Dishwasher-Safe Grates : conveniently place your grates in the dishwasher for easy clean-up.
Specifications
| Type of safety device for gas | Electromagnetic for each burner |
|---|
| Plug type | 120V-3 prong, Nema5-15P |
|---|
| Internal article number | RGM8658UC |
|---|
| Automatic programmes | Yes |
|---|
| Product name / series name | gas hob w integrated controls |
|---|
| Number of electric warming zones | 0 |
|---|
| Product packaging dimensions (HxWxD) | 14 3/4" x 40 15/16" x 30 1/2" |
|---|
| Type of lid | Without |
|---|
| Location of gas connection | Rear |
|---|
| Power on indicator | No |
|---|
| SKU | RGM8658UC |
|---|
| Location of 6th heating element | center right |
|---|
| Required cutout size (HxWxD) | 25 3/4 " x 36 " x 24 " |
|---|
| Location of 2nd heating element | center left |
|---|
| Power of 3rd heating element (kW) | 3.5 |
|---|
| Gross weight (kg) | 44.8 |
|---|
| Power of 5th burner | 5000 |
|---|
| Depth of the packed product (mm) | 770 |
|---|
| Power of 3rd burner | 12000 |
|---|
| Energy input | Gas |
|---|
| Number of electric cooking zones | 0 |
|---|
| Power of the heating element | 5.3 |
|---|
| Location of 5th heating element | back right |
|---|
| Optional accessories | HEZ7YZ36UC, HEZ9GR41UC |
|---|
| Type of 3rd heating element | Gas |
|---|
| Type of heating element | Gas |
|---|
| Construction type | Built-in |
|---|
| Height of the packed product (mm) | 380 |
|---|
| Net weight (kg) | 35.4 |
|---|
| Ignition system | Yes |
|---|
| Knob Material | Full metal |
|---|
| Timer | No |
|---|
| Number of radiant elements | 0 |
|---|
| Plate on indicator | 0 |
|---|
| Highlights | Wok burner |
|---|
| Frequency (Hz) | 60 |
|---|
| Number of halogen elements | 0 |
|---|
| Type of regulation | Step energy regulated |
|---|
| Power of 6th burner | 12000 |
|---|
| Basic surface material | Porcelain, Steel |
|---|
| Power of 5th heating element (kW) | 1.5 |
|---|
| Net weight | 78.000 |
|---|
| Total BTU load | 77000 |
|---|
| Current (A) | 15 |
|---|
| Color of frame | Stainless steel, Stainless Steel |
|---|
| LP Gas Connection Rating | 77000 |
|---|
| dishwasher safe pan support | Yes |
|---|
| Width of the packed product (mm) | 1040 |
|---|
| Overall appliance dimensions (HxWxD) | 25 3/4 " x 35 15/16" x 25 3/4 " |
|---|
| Additional Image 6 | https |
|---|
| Power of 4th burner | 12000 |
|---|
| EAN code | 4242005193073 |
|---|
| Location of 4th heating element | middle back |
|---|
| Additional Image 2 | https |
|---|
| Gross weight | 99.000 |
|---|
| Type of control | Mechanical |
|---|
| Power Cord Length | 60.0 IN |
|---|
| Sealed Burners | Yes |
|---|
| Alternative gas type | Liquid gas 27,5 mbar (USA) |
|---|
| Power of 4th heating element (kW) | 3.5 |
|---|
| Power cord length (cm) | 150.0 |
|---|
| UPC code | 825225960843 |
|---|
| Number of gas burners | 6 |
|---|
| Additional Image 5 | https |
|---|
| Safety device | Thermo-electric |
|---|
| Brand | Bosch |
|---|
| Location of the heating element | front left |
|---|
| Number of induction elements | 0 |
|---|
| Additional Image 7 | https |
|---|
| Depth for installation (mm) | 191 |
|---|
| Power of 1st burner | 18000 |
|---|
| Type of frame | Professional, Standard frame |
|---|
| Additional Image 1 | https |
|---|
| Type of control | Front;sword knobs |
|---|
| Additional Image 3 | https |
|---|
| Residual heat indicator | Without |
|---|
| Number of electric elements | 0 |
|---|
| Gas connection rating (W) | 22570 |
|---|
| Additional Image 4 | https |
|---|
| Power of 6th burner | 18000 |
|---|
| Volts (V) | 120 |
|---|
| Location of 3rd heating element | back left |
|---|
| Product group | Hob |
|---|
| Location of control panel | Front |
|---|
| Main on/off switch | No |
|---|
