Product Description

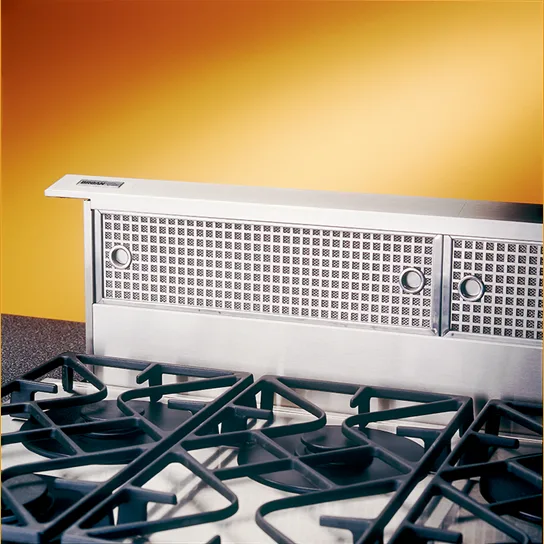

Designed specifically to be compatible with most conventional and commercial style cooktops, combines a sensational appearance with high performance features. Stainless steel construction on all exposed surfaces provides a durable finish and an unforgettable look. (Insufficient space for built-in ovens)
Features
- "Compact design is installed directly behind the cooktop for an unobtrusive appearance. (Not for use behind ovens.) Thin profile saves precious space under the cabinet
- Chimney rises over 9-1/2 inches when activated, ideal for large pots and pans
- Infinitely adjustable control is designed to provide convenient access to govern the blower speed for effective and quiet operation
- Optional remote control will activate down draft from an alternate location (RMDDRBK sold separately)
- Dishwasher-safe filters are easy to remove and feature a stylish brushed stainless steel appearance for a professional look
- Unique ducting capability allows the internal blower connection to be ducted to the left, right or downward (from left to right)
- Heat Sentry adjusts speed of blower to high automatically in case of excess heat, to prolong product life
- Compatible with optional Broan Make-up Air Dampers (MD6TU or MD8TU, sold separately) to fit 6" or 8" ducting and help to balance the air pressure when the range hood is in use, keeping your environment comfortable"
Specifications
| Product Depth (inches) | 7" |
|---|
| HVI Certified | Yes |
|---|
| Dishwasher Safe Filters | Yes |
|---|
| Product Height (inches) | 29-1/2" |
|---|
| Minimum Height Above Cook Top | N/A |
|---|
| Duct Connector Size | 3-1/4" x 10" |
|---|
| Filter Type | Stainless Steel |
|---|
| Sones Certified Horizontal Rectangular Low | N/A |
|---|
| Sones Certified Vertical Rectangular High | N/A |
|---|
| Damper Included | No |
|---|
| Product Width (inches) | 48" |
|---|
| Sones Certified Vertical Round Low | N/A |
|---|
| Heat Sentry - Temperature Sensor | Yes |
|---|
| Digital Clock | No |
|---|
| Lighting Function | N/A |
|---|
| Color/Finish | Stainless Steel |
|---|
| Blower Air Mover Type | Centrifugal Blower |
|---|
| Mounting Type | Under Counter |
|---|
| Rated Voltage | 120 |
|---|
| ENERGY STAR® certified product | No |
|---|
| Light Bulbs Included | No |
|---|
| Blower Included | Yes |
|---|
| Accessories Optional | Yes |
|---|
| Light Bulb Quantity | 0 |
|---|
| Sones Certified Vertical Round High | N/A |
|---|
| Remote Control | Optional |
|---|
| Flue Accommodates ceilings up to xx ft | N/A |
|---|
| Sones Certified Horizontal Rectangular High | N/A |
|---|
| Switch Control Settings | Variable |
|---|
| UL Listed | Yes |
|---|
| Sones Certified Vertical Rectangular Low | N/A |
|---|
| Delay Shut Off | No |
|---|
| Non-Stick Coated | No |
|---|
| CFM (Airflow) | 500 |
|---|
| Switch Style | Rotary Dial |
|---|
| Boost Mode | No |
|---|
| Control Feature Filter Reminder | No |
|---|
| Timer | No |
|---|
| Rated Amps | 4.0 |
|---|
| Accommodates Ceiling Height | N/A |
|---|
| Max Sones/100 CFM | 1.8 |
|---|
| Filter Included | Yes |
|---|
| Nightlight Setting | No |
|---|
