Product Description
Innovation Patented Star® Burner provides superior flame coverage for faster and more even pan heating Performance 30" - 5 burner gas cooktop provides functionality of a 36" in a compact kitchen environment Powerful 16,000 BTU center burner Sealed burners prevent spills from entering the burner box Continuous grates allow pots and pans to move effortlessly across the cooktop Electronic re-ignition will automatically re-ignite the burner in case the flame goes out Knobs feature a safety "push to turn" system Burner "On" indicator light STAR-K Sabbath compliant Design Seamless stainless steel burner pan makes for simpler surface cleaning High-grade, quality die cast metal knobs
Features

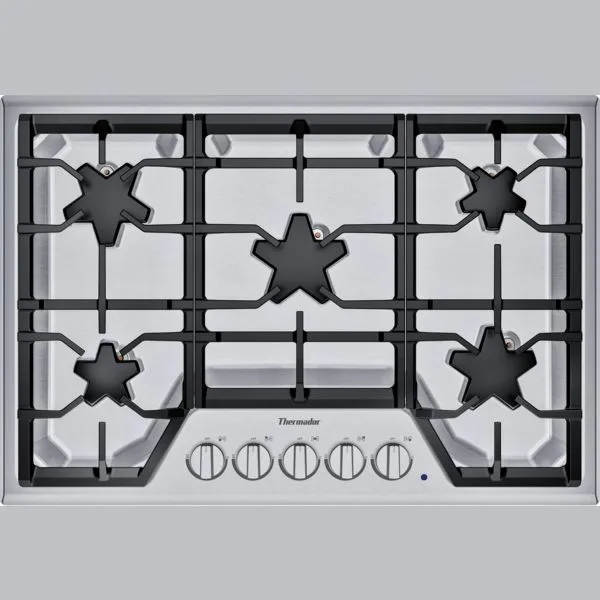

- Thermador® offers an impressive 30-inch gas cooktop with 5 patented Star® burners, including a center-mounted power burner, and 52,000 BTUs of overall heat output.
- Star® Burners : Our patented five-point design provides equal flame distribution for even cooking.
- 16,000 BTU Center Burner : This high heat burner is perfect for rapid boiling and high heat searing.
- Sealed Burners : Prevents spills from entering the burner box, making clean up easier.
Specifications
| Number of radiant elements | 0 |
|---|
| Width of the packed product (mm) | 635 |
|---|
| Additional Image 5 | https |
|---|
| Basic surface material | Stainless Steel |
|---|
| Gross weight (kg) | 20.0 |
|---|
| Depth of the packed product (mm) | 940 |
|---|
| Energy input | Gas |
|---|
| Additional Image 7 | https |
|---|
| Location of gas connection | Bottom, Rear, Right |
|---|
| Number of halogen elements | 0 |
|---|
| Net weight | 36.000 |
|---|
| Power on indicator | No |
|---|
| Safety device | Without Safety |
|---|
| Additional Image 1 | https |
|---|
| Type of lid | Without |
|---|
| Main on/off switch | No |
|---|
| Gas type | Natural gas 15 mbar (USA) |
|---|
| Product group | Hob |
|---|
| Additional Image 3 | https |
|---|
| Gas connection rating (W) | 15240 |
|---|
| Gross weight | 44.000 |
|---|
| Power cord length (cm) | 152.4 |
|---|
| Internal article number | SGS305TS |
|---|
| Total number of cooktop burners | 5 |
|---|
| LP Gas Connection Rating | 45200 |
|---|
| Power of 6th burner | 10000 |
|---|
| Overall appliance dimensions (HxWxD) | 3 13/16'' x 31'' x 21 1/4'' |
|---|
| Sealed Burners | Yes |
|---|
| Brand | Thermador |
|---|
| Number of induction elements | 0 |
|---|
| Plate on indicator | 0 |
|---|
| Plug type | 120V-3 prong |
|---|
| Product packaging dimensions (HxWxD) | 8 3/8'' x 37 1/8'' x 24 3/4'' |
|---|
| Number of electric cooking zones | 0 |
|---|
| Power of 5th burner | 8000 |
|---|
| Number of electric warming zones | 0 |
|---|
| SKU | SGS305TS |
|---|
| Power of 3rd burner | 10000 |
|---|
| Current (A) | 15 |
|---|
| Number of Single grates | 1 |
|---|
| Location of control panel | Front |
|---|
| Height of the packed product (mm) | 203 |
|---|
| Alternative gas type | Liquid gas 27,5 mbar (USA) |
|---|
| Frequency (Hz) | 60 |
|---|
| Type of control | Front;sword knobs |
|---|
| Residual heat indicator | Without |
|---|
| EAN code | 825225933069 |
|---|
| Additional Image 4 | https |
|---|
| Type of regulation | Step energy regulated |
|---|
| Product name / series name | gas hob w integrated controls |
|---|
| Knob Material | Full metal |
|---|
| Ignition system | Yes |
|---|
| UPC code | 825225933069 |
|---|
| Additional Image 2 | https |
|---|
| Optional accessories | SGRIDDLEW, SLPKITW, SWOKRINGW |
|---|
| Net weight (kg) | 16.4 |
|---|
| Included accessories | 3 x cast iron pan support |
|---|
| Minimum distance from counter front | 1 7/8'' |
|---|
| Number of electric elements | 0 |
|---|
| Minimum width for installation (mm) | 735 |
|---|
| Depth for installation (mm) | 97 |
|---|
| Construction type | Built-in |
|---|
| Type of control | Mechanical |
|---|
| Automatic programmes | Yes |
|---|
| Timer | No |
|---|
| dishwasher safe pan support | No |
|---|
| Number of Double grates | 2 |
|---|
| Minimum height for installation (mm) | 486 |
|---|
| Number of gas burners | 5 |
|---|
| Maximum width for installation (mm) | 735 |
|---|
| Additional Image 6 | https |
|---|
| Maximum height for installation (mm) | 486 |
|---|
| Total BTU load | 52000 |
|---|
| Minimum distance from rear wall | 3'' |
|---|
| Power Cord Length | 60'' |
|---|
| Required cutout size (HxWxD) | 3 13/16'' x 28 15/16'' x 19 1/8'' |
|---|
| Volts (V) | 120 |
|---|
| Location of the heating element | Flexible |
|---|
