Product Description
Innovation Patented Star® Burner provides superior flame coverage for faster and more even pan heating QuickClean Base® with a teardrop emboss reduces food buildup near the base and contains liquid spills for quick cleaning Performance Powerful 18,000 BTU center burner Continuous grates allow pots and pans to move effortlessly across the cooktop Electronic re-ignition will automatically re-ignite the burner in case the flame goes out Knobs feature a safety "push to turn" system Burner "On" indicator light STAR-K Sabbath compliant Design Seamless stainless steel burner pan makes for simpler surface cleaning High-grade, quality die cast metal knobs Sleek control panel features glass and stainless steel
Features

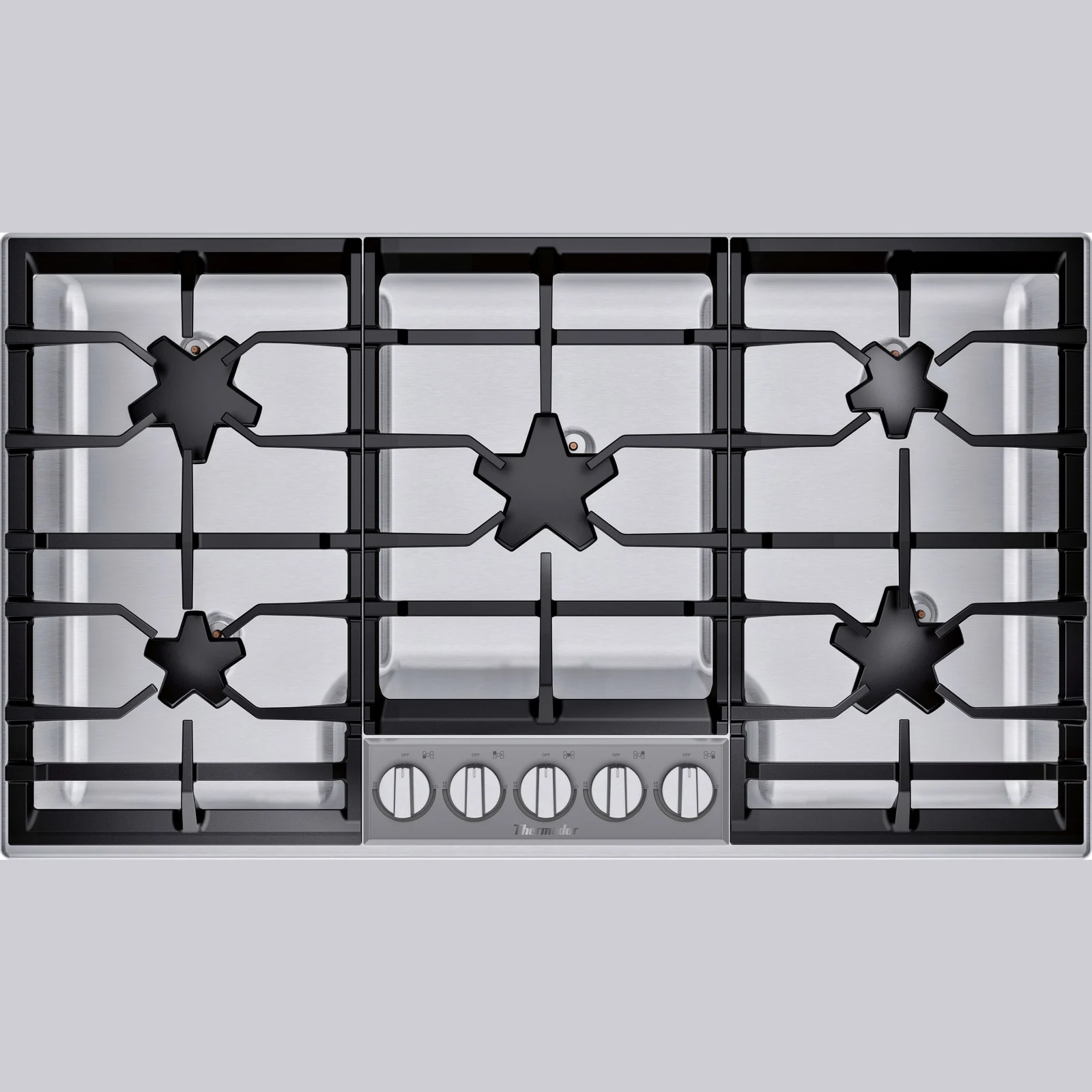

- Thermador® offers an impressive 36-inch gas cooktop with 5 raised pedestal Star® burners, including a center-mounted power burner, and 60,200 BTUs of overall heat output.
- Patented Pedestal Star® Burners : Our patented five-point design provides equal flame distribution for even pan heating.
- 18,000 BTU Center Burner : This extra high heat burner is the optimal choice for rapid boiling and high heat searing.
- QuickClean Base® : raised burners and porcelain maintop allows ample room for you to achieve a sparkling clean Cooktop with minimal effort.
- Sealed Burners : Prevents spills from entering the burner box, making clean up easier.
Specifications
| Number of Double grates | 2 |
|---|
| Number of electric cooking zones | 0 |
|---|
| Location of gas connection | Bottom, Rear, Right |
|---|
| Knob Material | Full metal |
|---|
| Net weight (kg) | 19.4 |
|---|
| Safety device | Without Safety |
|---|
| Additional Image 2 | https |
|---|
| Number of gas burners | 5 |
|---|
| Ignition system | Yes |
|---|
| Minimum width for installation (mm) | 899 |
|---|
| Type of control | Front;sword knobs |
|---|
| Minimum distance from rear wall | 3'' |
|---|
| Gross weight | 51.000 |
|---|
| Gas connection rating (W) | 17640 |
|---|
| Depth of the packed product (mm) | 1092 |
|---|
| Minimum distance from counter front | 1 7/8'' |
|---|
| Power of 5th burner | 9100 |
|---|
| Total BTU load | 60200 |
|---|
| dishwasher safe pan support | No |
|---|
| Number of radiant elements | 0 |
|---|
| Number of induction elements | 0 |
|---|
| Height of the packed product (mm) | 203 |
|---|
| Included accessories | 3 x cast iron pan support |
|---|
| Gas type | Natural gas 15 mbar (USA) |
|---|
| Number of Single grates | 1 |
|---|
| Brand | Thermador |
|---|
| Volts (V) | 120 |
|---|
| Power of 3rd burner | 12000 |
|---|
| Product group | Hob |
|---|
| Power of 6th burner | 12000 |
|---|
| Automatic programmes | Yes |
|---|
| Overall appliance dimensions (HxWxD) | 3 13/16'' x 37'' x 21 1/4'' |
|---|
| Depth for installation (mm) | 97 |
|---|
| Number of electric warming zones | 0 |
|---|
| Energy input | Gas |
|---|
| EAN code | 825225932802 |
|---|
| Type of regulation | Step energy regulated |
|---|
| Sealed Burners | Yes |
|---|
| Residual heat indicator | Without |
|---|
| LP Gas Connection Rating | 45200 |
|---|
| Timer | No |
|---|
| Width of the packed product (mm) | 635 |
|---|
| Alternative gas type | Liquid gas 27,5 mbar (USA) |
|---|
| UPC code | 825225932802 |
|---|
| Number of halogen elements | 0 |
|---|
| Product name / series name | gas hob w integrated controls |
|---|
| Maximum width for installation (mm) | 899 |
|---|
| Current (A) | 15 |
|---|
| Construction type | Built-in |
|---|
| Additional Image 4 | https |
|---|
| Total number of cooktop burners | 5 |
|---|
| Power Cord Length | 60'' |
|---|
| Power on indicator | No |
|---|
| Net weight | 43.000 |
|---|
| Product packaging dimensions (HxWxD) | 8 3/8'' x 43 1/8'' x 24 3/4'' |
|---|
| SKU | SGSP365TS |
|---|
| Maximum height for installation (mm) | 486 |
|---|
| Minimum height for installation (mm) | 486 |
|---|
| Plug type | 120V-3 prong |
|---|
| Location of control panel | Front |
|---|
| Internal article number | SGSP365TS |
|---|
| Type of lid | Without |
|---|
| Gross weight (kg) | 23.1 |
|---|
| Location of the heating element | Flexible |
|---|
| Plate on indicator | 0 |
|---|
| Frequency (Hz) | 60 |
|---|
| Required cutout size (HxWxD) | 3 13/16'' x 34 15/16'' x 19 1/8'' |
|---|
| Main on/off switch | No |
|---|
| Additional Image 1 | https |
|---|
| Number of electric elements | 0 |
|---|
| Optional accessories | SGRIDDLEW, SKNOBLUW, SNPKITPEDW, SWOKRINGW |
|---|
| Basic surface material | Stainless Steel |
|---|
| Additional Image 3 | https |
|---|
| Power cord length (cm) | 152.4 |
|---|
| Type of control | Mechanical |
|---|
