Product Description

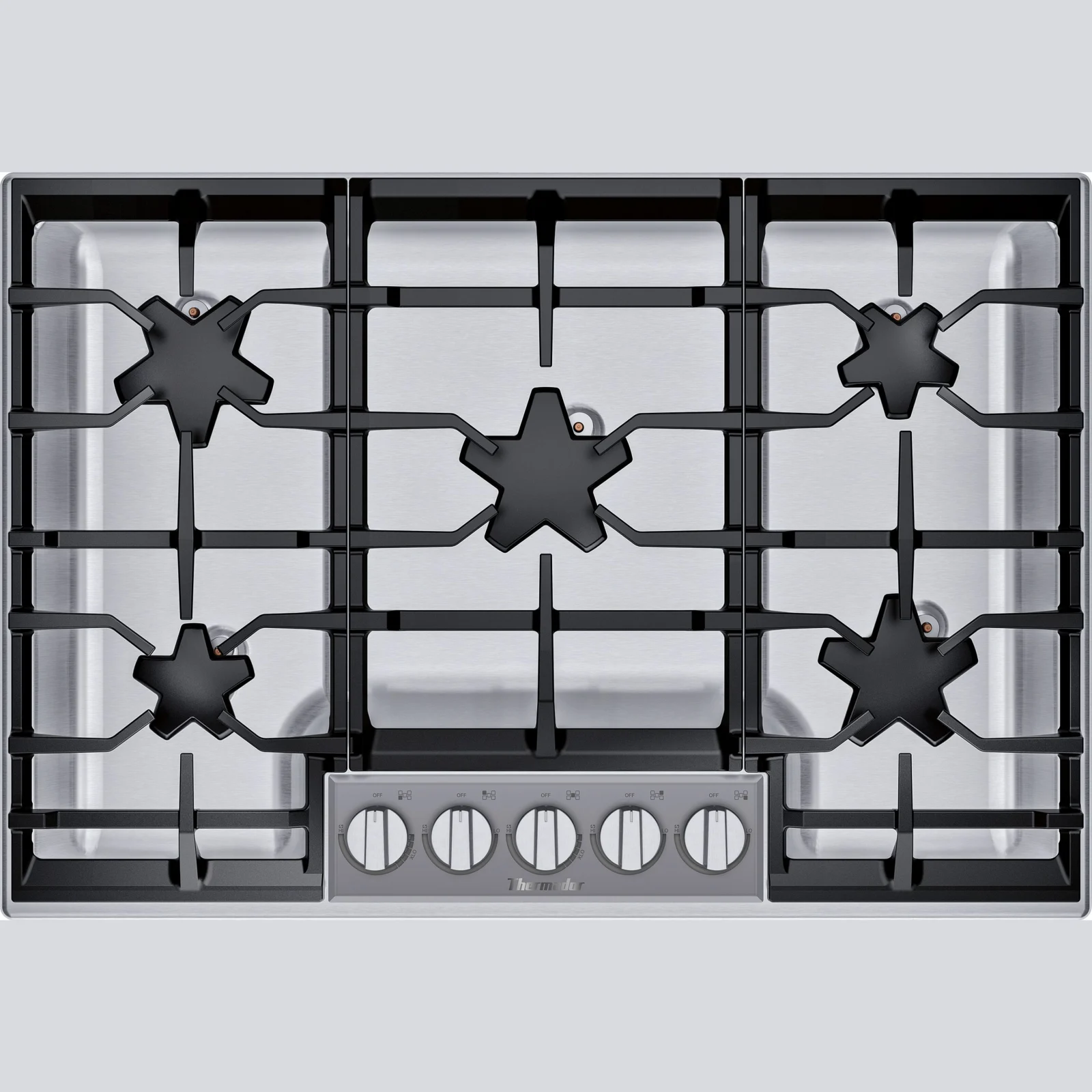

Innovation Patented Star® Burner provides superior flame coverage for faster and more even pan heating Two ExtraLow® Select simmer burners provide precise simmering capabilities QuickClean Base® with a teardrop emboss reduces food buildup near the base and contains liquid spills for quick cleaning Progressive illuminated light ring around each knob indicates burners in use Performance 30" - 5 burner gas cooktop provides functionality of a 36" cooktop in a compact kitchen environment Powerful 18,000 BTU center burner Continuous grates allow pots and pans to move effortlessly across the cooktop Electronic re-ignition will automatically re-ignite the burner in case the flame goes out Knobs feature a safety "push to turn" system STAR-K Sabbath compliant Design Seamless stainless steel burner pan makes for simpler surface cleaning High-grade, quality die cast metal knobs Sleek control panel features glass and stainless steel
Features
- Thermador® offers an impressive 30-inch gas cooktop with 5 raised pedestal Star® burners, including a center-mounted power burner, 2 ExtraLow® simmer burners, and 54,000 BTUs of overall heat output.
- Patented Pedestal Star® Burners : Our patented five-point design provides equal flame distribution for even pan heating.
- 18,000 BTU Center Burner : This extra high heat burner is the optimal choice for rapid boiling and high heat searing.
- 2 ExtraLow® Select Burners : These burners offer 5 precise settings that are perfect for simmering meals or melting chocolate without burning.
- QuickClean Base® : raised burners and porcelain maintop allows ample room for you to achieve a sparkling clean Cooktop with minimal effort.
- Illuminated Knobs : A ring of light encircles knobs when in use.
Specifications
| Timer | No |
|---|
| Location of the heating element | Flexible |
|---|
| UPC code | 825225932819 |
|---|
| Construction type | Built-in |
|---|
| SKU | SGSXP305TS |
|---|
| Maximum height for installation (mm) | 486 |
|---|
| Additional Image 5 | https |
|---|
| Width of the packed product (mm) | 615 |
|---|
| Knob Material | Full metal |
|---|
| Number of Double grates | 2 |
|---|
| Minimum distance from counter front | 1 7/8'' |
|---|
| Plug type | 120V-3 prong |
|---|
| Gross weight (kg) | 20.9 |
|---|
| Safety device | Electronic flame failure safety device |
|---|
| Net weight | 38.000 |
|---|
| Maximum width for installation (mm) | 735 |
|---|
| Basic surface material | Stainless Steel |
|---|
| Additional Image 2 | https |
|---|
| Overall appliance dimensions (HxWxD) | 3 13/16'' x 31'' x 21 1/4'' |
|---|
| Automatic programmes | Yes |
|---|
| Internal article number | SGSXP305TS |
|---|
| Minimum width for installation (mm) | 735 |
|---|
| LP Gas Connection Rating | 45200 |
|---|
| Type of control | Front;sword knobs |
|---|
| Power on indicator | No |
|---|
| Type of safety device for gas | Central electronic safety device |
|---|
| Additional Image 1 | https |
|---|
| Additional Image 6 | https |
|---|
| Frequency (Hz) | 60 |
|---|
| Residual heat indicator | Without |
|---|
| Depth of the packed product (mm) | 945 |
|---|
| Depth for installation (mm) | 97 |
|---|
| Number of radiant elements | 0 |
|---|
| Power cord length (cm) | 152.4 |
|---|
| Main on/off switch | No |
|---|
| Number of halogen elements | 0 |
|---|
| Power Cord Length | 60'' |
|---|
| Current (A) | 15 |
|---|
| Plate on indicator | 0 |
|---|
| Brand | Thermador |
|---|
| Additional Image 3 | https |
|---|
| Number of electric cooking zones | 0 |
|---|
| Included accessories | 3 x cast iron pan support |
|---|
| Type of control | Mechanical |
|---|
| Sealed Burners | Yes |
|---|
| Volts (V) | 120 |
|---|
| Number of electric elements | 0 |
|---|
| Net weight (kg) | 17.3 |
|---|
| Gas type | Natural gas 15 mbar (USA) |
|---|
| Minimum height for installation (mm) | 486 |
|---|
| Product packaging dimensions (HxWxD) | 8 3/8'' x 37 1/8'' x 24 3/4'' |
|---|
| Type of lid | Without |
|---|
| Total number of cooktop burners | 5 |
|---|
| Height of the packed product (mm) | 240 |
|---|
| dishwasher safe pan support | No |
|---|
| Power of 6th burner | 10000 |
|---|
| Power of 5th burner | 8000 |
|---|
| Product group | Hob |
|---|
| Optional accessories | SGRIDDLEW, SKNOBLUW, SNPKITPEDW, SWOKRINGW |
|---|
| Number of gas burners | 5 |
|---|
| Number of induction elements | 0 |
|---|
| Location of gas connection | Bottom, Rear, Right |
|---|
| Product name / series name | gas hob w integrated controls |
|---|
| Alternative gas type | Liquid gas 27,5 mbar (USA) |
|---|
| Additional Image 4 | https |
|---|
| Power of 3rd burner | 10000 |
|---|
| Additional Image 7 | https |
|---|
| Location of control panel | Front |
|---|
| Required cutout size (HxWxD) | 3 13/16'' x 28 15/16'' x 19 1/8'' |
|---|
| Ignition system | Yes |
|---|
| Energy input | Gas |
|---|
| Gross weight | 46.000 |
|---|
| Number of Single grates | 1 |
|---|
| EAN code | 825225932819 |
|---|
| Gas connection rating (W) | 15240 |
|---|
| Type of regulation | Step energy regulated |
|---|
| Number of electric warming zones | 0 |
|---|
| Total BTU load | 54000 |
|---|
| Minimum distance from rear wall | 3'' |
|---|
