Product Description

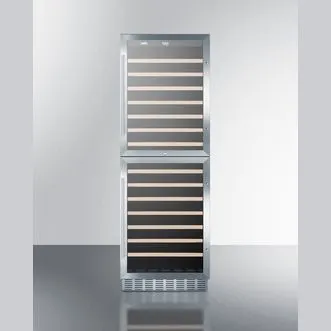

Sized with a convenient 24" footprint, the SWC1875BCSS features a front-breathing system for built-in installation and a fully finished stainless steel wrapped to cabinet to also allow freestanding use. The two separate temperature zones include their own reversible stainless steel trimmed glass door, with pro style handles and front locks for added security. A stainless steel kickplate completes the professional look.
Features
- Built-in capable : Front-breathing unit can be integrated into your cabinetry; 1/4" of space required around sides and top
- Stainless steel wrapped cabinet : Exterior features 304 grade stainless steel for true luxury built to last
- Large capacity : Stores up to 118 bottles of standard Bordeaux style or wider Burgundy style bottles
- Two temperature zones : Chill white and sparkling wine in the upper zone while preserving your reds at a warmer temperature below
- Two reversible glass doors : Elegant tint with user-reversible convenience and stainless steel trim
- Digital thermostat : Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit
- Factory installed lock : Keyed lock secures both sections
- Recessed LED lighting : Attractive and energy efficient illumination for your collection
- Slide-out wooden shelving : 14 easy gliding shelves
- Automatic defrost : Reduced maintenance with auto defrost system
- Professional handles : Sturdy chrome handles add a professional look
- Sabbath mode setting : Optional setting lets you disable the lighting and alarm for up to 96 hours
- Stainless steel kickplate : An added touch of elegance
- Temperature range : 40ºF to 72ºF; Upper zone is ideal for white and sparkling wine served at a cooler temperature; Lower compartment is better suited for holding reds at a warmer temperature
- Fully finished cabinet : Allows the unit to be used freestanding
- 100% CFC Free : Environmentally friendly design with no ozone-damaging chemicals
Specifications
| Height of Cabinet | 69.63" (177 cm) |
|---|
| Width | 23.63" (60 cm) |
|---|
| Depth | 22.75" (58 cm) |
|---|
| Depth with Handle | 24.63" (63 cm) |
|---|
| Depth with door at 90° | 44.75" (114 cm) |
|---|
| Bottles | 118 bottles |
|---|
| Defrost Type | Automatic |
|---|
| Door | Glass |
|---|
| Cabinet | Stainless Steel |
|---|
| US Electrical Safety | ETL |
|---|
| Canadian Electrical Safety | ETL-C |
|---|
| Amps | 1.7 |
|---|
| Voltage/Frequency | 115 V AC/60 Hz |
|---|
| Weight | 200.0 lbs. (91 kg) |
|---|
| Shipping Weight | 215.0 lbs. (98 kg) |
|---|
| Parts & Labor Warranty | 1 Year |
|---|
| Compressor Warranty | 5 Years |
|---|
| Number of Zones | 2 |
|---|
| Door Swing | RHD |
|---|
| Reversible | Yes |
|---|
| Shelf Type | Wood |
|---|
| Shelf Qty | 14 |
|---|
| Thermostat Type | Digital |
|---|
| Interior Light | Yes |
|---|
| Fan Type | Interior and Exterior |
|---|
| Refrigerant Type | R600a |
|---|
| Refrigerant Amount | 1.07 oz. |
|---|
| High Side PSI | 270.0 |
|---|
| Low Side PSI | 105.0 |
|---|
| Interior Height 1 | 27.75" (70 cm) |
|---|
| Interior Width 1 | 20.0" (51 cm) |
|---|
| Interior Depth 1 | 17.5" (44 cm) |
|---|
| Temperature Range | 41°F to 55°F (upper zone); 55°F to 72°F (lower zone) |
|---|
| Interior Height 2 | 31.0" (79 cm) |
|---|
| Interior Width 2 | 20.0" (51 cm) |
|---|
| Interior Depth 2 | 17.5" (44 cm) |
|---|
|
Latch
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
|
LHD
Door reversal to left hand swing
|
|---|
|
KEY
Extra keys available for purchase
|
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
|
|---|
|
T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models
|
T2F Door Tint
Tinted door in reflective deep blue finish with high energy savings
|
|---|
|
T3F Door Tint
Reflective door tint in light blue finish for medium energy savings
|
T4F Door Tint
Neutral door tint in light smoke finish for moderate energy savings
|
|---|
