Product Description

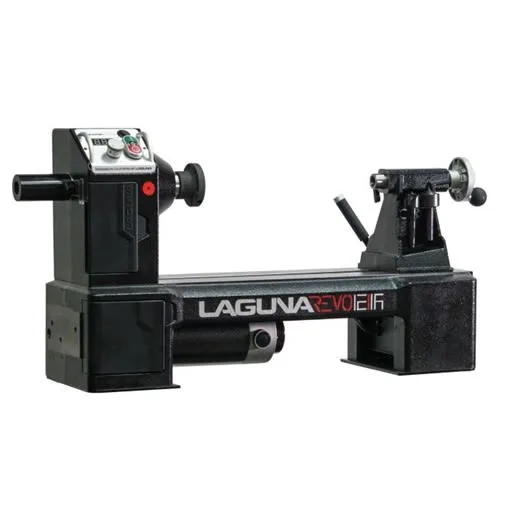

The Laguna REVO 12/16 Midi-Lathe features a 1-hp DC permanent magnet motor and a Pulse Width Modulation system that maintains consistent torque at any speed. This PWM system enables tremendous torque to be applied in low speed settings which is helpful for roughing and precision work. It also allows outboard turning up to a 16” bowl. This midi lathe also features a one step cam-action belt change with magnetic door housing and a luxury banjo with a 45° chamfered edge.
How Does Pulse Width Modulation differ from standard controllers?
Typically, a controller limits voltage or current to adjust the speed. This limitation results in less torque being available especially at low to mid-range speeds. The voltage not being used is converted to heat that can damage electrical components after prolonged use. PWM delivers power to a DC motor through a succession of voltage pulses rather than adjusting voltage or current. PWM vastly improves efficiency at low- to mid-range speeds and substantially decreases the loss of torque under load.
Other Features:
Electronic Variable Speed & RPM Digital Read Out (DRO)
Pulse Width Modulation (PWM) Motor Control
Hardened 1045 Steel Tool Rest Leading Edge
Luxury Banjo with 45° Chamfered Edge
Live & Drive Center On-Board Storage
Forward & Reverse Spindle Rotation
Premium Banjo & Tailstock handles
1” REVO Compatible Tool Rest Post
3-1/2” Solid Polished Hand wheel
ACME Lead Screw in Tailstock
Drive Center Knock-out Rod
Live Center & Drive Center
Magnetic Door Latches
Tool-less Belt Change
Faceplate Wrench
3” Faceplate
Model Number: MLAREVO1216EVS
Specifications
Electrical Requirements: 100V-1ph-60Hz
Recommended Breaker Size: 110V – 15 Amp
Speed Range High: 650 – 3500 RPM
Speed Range Mid: 325 – 1750 RPM
Speed Range Low: 50 – 525 RPM
Distance Between Centers: 15-1/2″
Swing Over Bed: 12-1/2″
Swing Over Banjo: 9-1/2″
Max Outboard Swing: 16″
Spindle Bore: 3/8″
Spindle Taper: 1″ x 8 TPI (Both Ends)
Front Bearing: 60006LLU
Rear Bearing: 6005LLU
Indexing: 24 Positions with Lock
Accepts Vacuum Chuck: No
Drive Belt: Poly-V Belt 6 Grooves
Tail Stock Quill Travel: 2-1/2″
Tail Stock Taper: MT2
Bed Length: 29.4″
Tool Rest Length: 6″
Tool Rest Post Diameter: 1″
Faceplate Diameter: 3″
Certification: CSA C/US 256540
Floor to Bed Height: 6-3/4″ No Pads
Floor to Spindle Center: 13″ No Pads
Overall Size: (L) 35.8″ x (W) 14.6″ x (H) 20.5″
Net Weight: 118 lbs.
Manuals
Misplace the instructions? No problem! Hartville Hardware is here to help. Below is the instruction manual for the Laguna MLAREVO1216EVS Midi Lathe. Read it before you buy it, or come back and download it if you have questions.
Laguna MLAREVO1216EVS Midi Lathe Instruction Manual
